Advanced RFID parking system integrated with secure revenue control and toll access software. Automated vehicle tracking for seamless corporate, residential, or commercial parking.
Managing modern vehicle access tracks requires maximum technical reliability and structural durability. The premium YH-PDPY601 Intelligent Traffic Boom Barrier is engineered by BAROXON Access Control Solutions to deliver seamless driveway lane regulation under high-frequency turnover conditions. Built to handle heavy site workloads, this advanced lane control barrier utilizes optimized torque kinematics to master vehicle ingress and egress channels. It is the perfect fit for commercial shopping malls, freight loading bays, industrial logistics centers, and residential developments seeking dependable perimeter security.
| Authentication Type | Card. Code. Key. Smartphone. Other Smart Credentials | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage Layout | Cloud. Memory Card Multi-Channel Storage | Material Configuration | Cold rolled steel. Stainless Steel. Zinc Alloy Structure |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Architecture | DC 24V Brushless / AC 220V / Servo Motor Core Options |
| Duty Cycle Profile | 100% / Continuous / 5000 cycles per day Severe Workload | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Fully Adjustable Timing) |
| Boom Arm Configuration | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable Profile Tracks) |
| Power Consumption | Peak: 140W / Standby: <5W Ultra-Efficient Drive | MCBF Rating | 3 million / 5 million / 10 million times Lifecycle Cycles |
| Housing Build | 2.0mm Cold-rolled Steel / Weatherproof Powder Coating | MTTR Index | < 30 mins Quick Field Diagnostics |
| Protection Class | IP54 / IP65 / IP66 High-Grade Sealing | - | - |
| Selling Units | Single item export standard crate |
Our perimeter access solutions are engineered for continuous, long-term deployment across diverse public and private sectors: Commercial Shopping Malls, Corporate Office Buildings, Business Centers, Hotels & Luxury Resorts, Exhibition Centers, Residential Apartment Complexes, Private Villas, Condominiums, Industrial & Logistics Hubs, Manufacturing Factories, Distribution Warehouses, Port Terminals, Construction Sites, Airports & Railway Stations, Hospitals & Healthcare Centers, Government Buildings, University Campuses, Schools, Sports Stadiums, Gymnasiums, and Highway Toll Gates.
Watch our heavy-duty automated security boom operators pass rigorous factory lifecycle validations and variable speed calibrations below:
As an internationally certified engineering plant and direct access solution developer, BAROXON manufactures premier vehicle terminal infrastructures. We specialize in supplying global distribution networks, commercial venue builders, and security system integrators with heavy-duty traffic control barrier systems, automated toll gates, safety loop detectors, and advanced entry barriers designed for harsh outdoor installations.
Q1: What is the peak operational transition speed of this access control system?
A: The YH-PDPY601 provides ultra-fast adjustable timing profiles spanning 0.6s, 0.9s, and 1.5s to 6s. This high-speed performance makes it well-suited for high-turnover lanes, such as busy highway toll booths and logistics centers.
Q2: Can the core motor handle continuous duty cycles without heat failure over prolonged peak periods?
A: Absolutely. Featuring a high-torque 24V DC brushless motor or premium servo core combined with a 100% continuous duty cycle, our smart boom barrier gate effortlessly manages up to 5,000 operation cycles daily with zero thermal shutdown risks.
Q3: What arm variations are available for narrow underground lanes or high-clearance barriers?

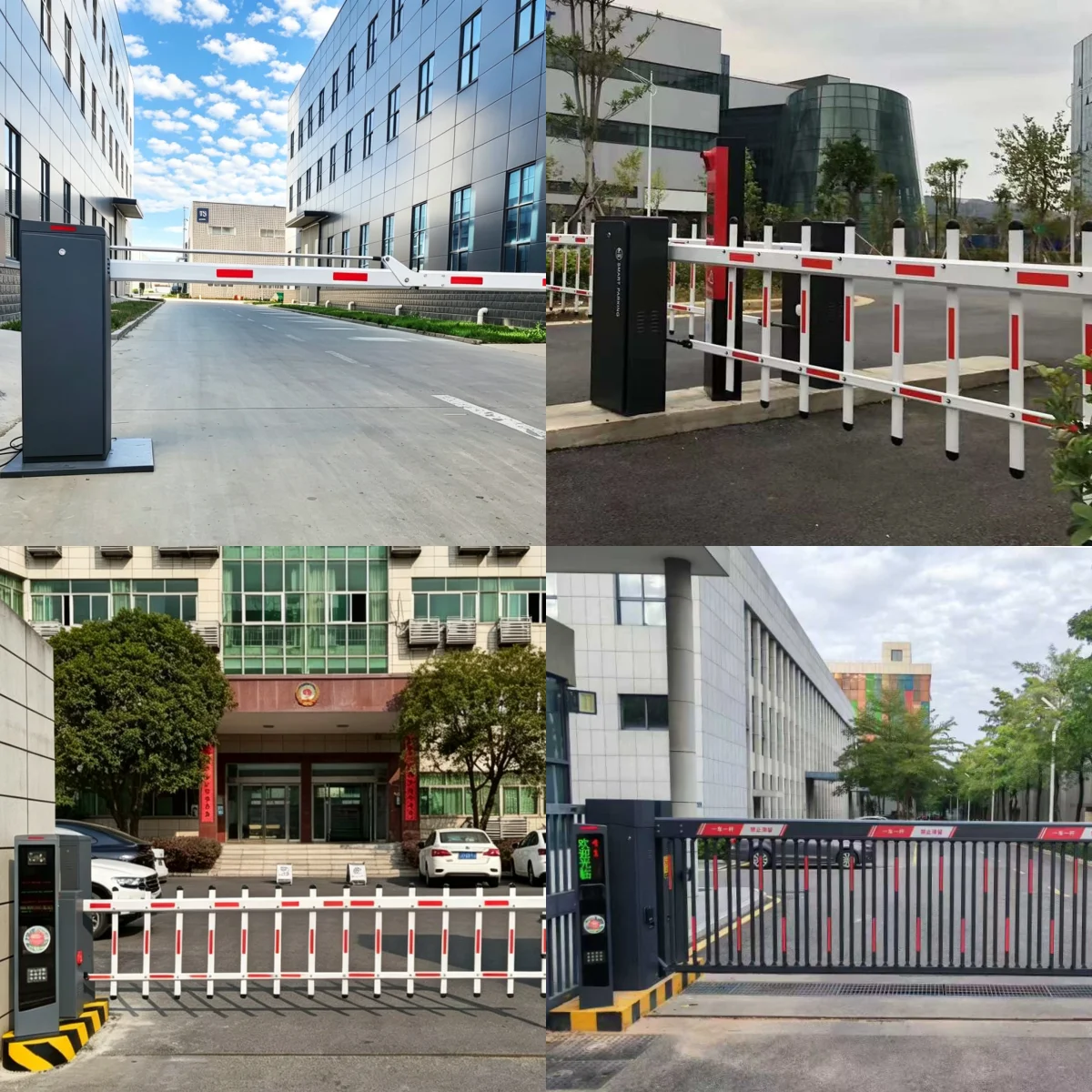

A: We manufacture three primary barrier arm options: straight aluminum poles, space-optimized 90° or 180° articulated folding arms for low ceilings, and multi-rail industrial fence boom gates to prevent pedestrian tailgating.
Q4: How does the system protect vehicles and pedestrians from closing impacts?
A: The unit features active auto-rebound and anti-collision algorithms embedded into the logic controller motherboard. For comprehensive site security, it features direct integration ports for infrared photo-eyes, vehicle safety loop sensors, and proximity digital lane radars.
Q5: What weather protection ratings does the chassis enclosure provide against harsh outdoor elements?
A: The housing is built from heavy 2.0mm thick cold-rolled steel treated with an outdoor-grade powder finish. It comes with certified IP54, IP65, or IP66 sealing classes, ensuring stable operation across extreme temperatures ranging from -30℃ to 80℃.
Q6: How easy is it to perform field maintenance if a component failure occurs?
A: Thanks to our modular internal physical architecture, the system achieves an exceptionally low Mean Time to Repair (MTTR) of under 30 minutes. Field engineers can quickly swap independent control cards or motor parts without tearing down the entire terminal setup.
Contact the BAROXON corporate engineering project and wholesale export desk to request customized technical specifications, CAD layout blueprints, or factory-direct bulk quotes:
Corporate Sales Department: [email protected]
Global WhatsApp Hotline: +8613405313100
WeChat Representative: +86 18660196023
Automatic Parking Gate Systems | Traffic Control Barrier Wholesaler | Electric Security Boom Openers | Heavy Duty Parking Lot Gate Opener | Drop Arm Barrier Factory Supply | Commercial Driveway Gate Operators
Automatic Parking Gate, Boom Barrier Gate, Traffic Control Barrier, Parking Lot Gate Opener, Commercial Driveway Gate, Electric Security Boom, Drop Arm Barrier, Parking Revenue Control, Access Control Gate, Automatic Boom Arm, Toll Gate Barrier, Vehicle Loop Detector, Anti-Crash Traffic Gate, Remote Control Gate Opener, Vehicle Barrier Systems, Perimeter Security Solutions, RFID Gate Barrier, License Plate Recognition Gate, High Speed Toll Barrier, Heavy Duty Security Gate, 24V DC Brushless Gate Operator, Industrial Access Control, Articulated Folding Arm Gate, Fence Boom Barrier, Parking Management Hardware, Security Gate Manufacturer, Wholesale Gate Openers, Roadway Security Barriers, Entrance Control Systems, Electric Car Park Barrier, High Performance Traffic Arm Operator, Continuous Duty Cycle Gate Mechanism, Thick Cold Rolled Steel Enclosure, Shandong Access Control Fabrication Plant, Variable Speed Driveway Barriers, Multi Rail Fence Boom Gate, Heavy Duty Entry Lane Barrier, IP66 Sealed Weatherproof Housing, Advanced Access Control Motherboard Terminal, Proximity Loop Sensors, Automated Lane Enforcement Guard, B2B Commercial Security Bids.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Advanced RFID parking system integrated with secure revenue control and toll access software. Automated vehicle tracking for seamless corporate, residential, or commercial parking.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
