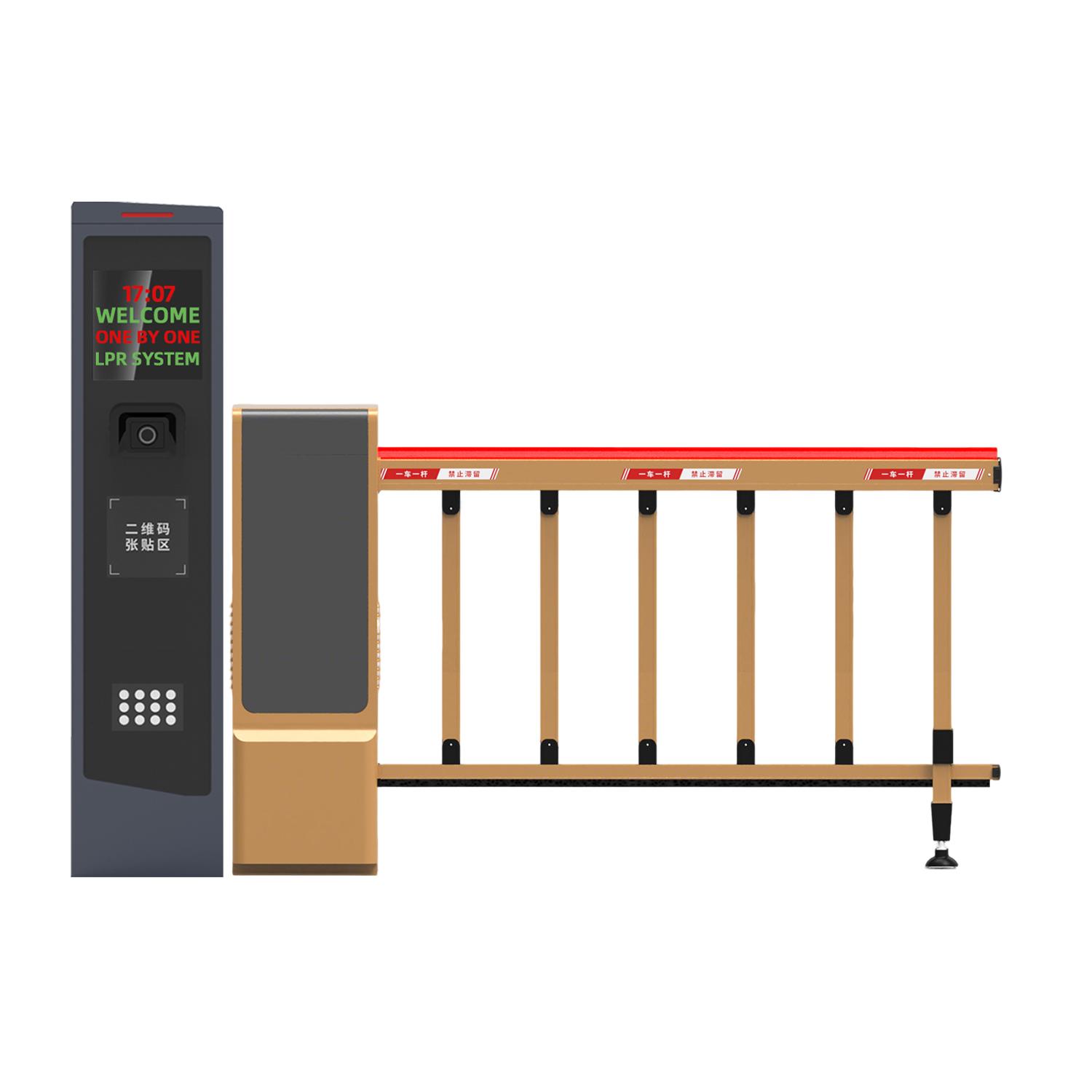

Streamline vehicle logging with our enterprise-grade LPR parking system software. Features advanced automatic number plate recognition cameras and embedded databases for real-time tenant and visitor tracking.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

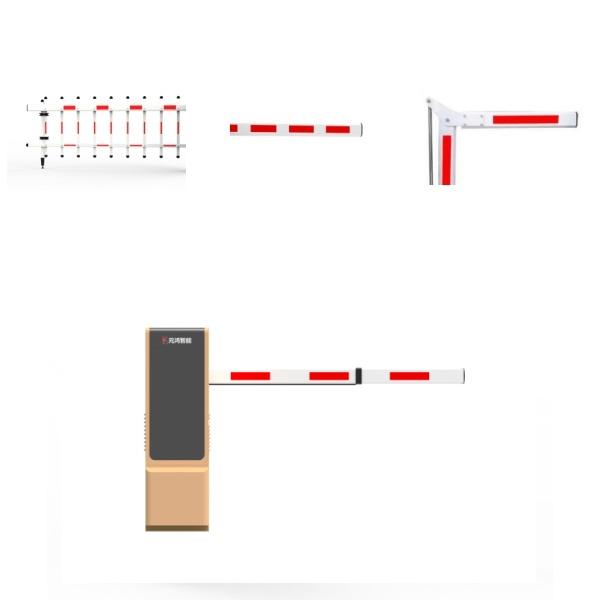

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
Intelligent Control Interface: Built with a highly reliable integrated motherboard supporting smart terminal settings, chip card authorization, and effortless loop calibration for advanced vehicle lanes.
Modular Electro-Mechanical Engineering: The space-saving unibody layout facilitates rapid commercial installation, simple wire configuration, and swift field servicing of your automated parking gate barrier grid.
Vibration-Free Drive Core: Powered by an industrial DC brushless motor and variable frequency speed adjustments, ensuring precise travel dampening, smooth speed changes, and ultra-quiet driveway entrance gate operation.
Proactive Lane Safety Systems: Features comprehensive protection loops, including instant auto rebound on blockages, heavy anti-collision vehicle detection, and an emergency manual clutch release under total power failure.
Versatile Perimeter Access Controls: Seamlessly matches with contactless card reader hubs, automated swing barrier gate pillars, pedestrian speed gate channels, traffic control barriers, and checkout supermarket entrance gate lanes run by an energy-efficient parking lot barrier gate 220v brushless dc motor powertrain.

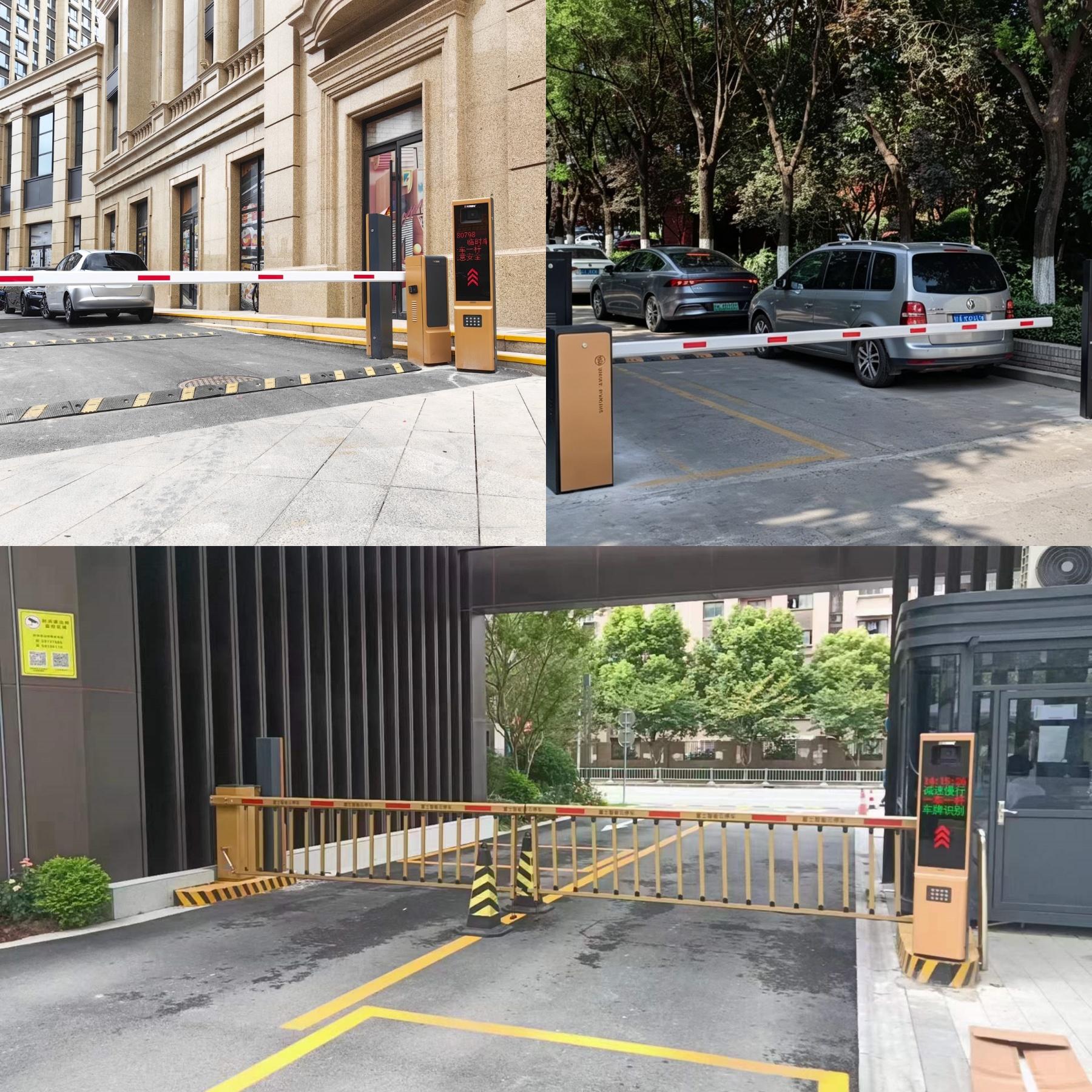

High-Volume Traffic Deployments: Specially engineered to control critical vehicle access points at Commercial Shopping Malls, Premium Corporate Headquarters, Office Buildings / Business Centers, Hotels & Resorts, Exhibition Centers, Gated Residential Apartment Complexes, Private Villas, and Condominiums.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our ruggedly built commercial parking lot gate mechanism models provide dependable physical control and smooth lane management under heavy peak traffic demands at toll plazas, major business hubs, and industrial sites worldwide.
Strategic Market Positioning: Specialized engineering focus on durable drop arm operators, multiple-rail fence barriers, articulated space-saving boom configurations, and smooth alpr lpr car plate system camera unit integration.
Global Deployment Footprint: Proudly serving transit toll agencies, residential property management firms, and commercial security contractors across 200+ countries including the USA, UK, Canada, and Australia.
Full-Service Project Support: Providing complete facility perimeter security assessments, custom CAD layout designs, expert on-site technical hardware instruction, and dedicated engineering consultation.
Convenient Structural Design: In-house manufactured tooling and precision steel casting molds ensure quick field mounting, straightforward leveling, and minimized long-term upkeep.
Technological Innovation Barriers: Backed by a wide intellectual property portfolio comprising over 100 patents in advanced DC brushless control boards and intelligent barrier loop logic.
Highly Professional Engineering Team: Our main technical R&D and factory management experts bring more than 20 years of continuous commercial access control manufacturing experience.
Uncompromising Service Commitment: 1-minute initial online sales support replies, 2-hour expert technical system diagnoses, and rapid 2-day complete resolution protocols.
Q1: What are the dynamic velocity options available for the boom travel cycle?
A: Our system provides a highly adjustable speed configuration ranging from 0.6 to 6 seconds. Technicians can optimize the movement profile via the main logic panel, ensuring rapid vehicle clearing at toll booths or smooth, dampened travel loops for heavy three-rail fence profiles.
Q2: Can the internal transformers support alternative off-grid voltage requirements?
A: Yes, our motherboard connects natively to standard AC 110V/220V municipal power. For remote perimeter or solar installations, low-voltage DC configurations let installers deploy eco-friendly solar arrays and emergency backup batteries directly.
Q3: What is the maximum boom arm clearance span supported by this gate operator?
A: The heavy-duty powertrain carries standard straight aluminum arms from 1 to 6 meters. We also offer custom options including 90° or 180° articulated folding linkages for low-ceiling structures and multi-tier fence bars for pedestrian exclusion zones.
Q4: Is the system compatible with modern ANPR systems and proximity access readers?
A: Absolutely. The controller features native Wiegand, RS485, and standard dry-contact relay connections, allowing seamless matching with high-definition License Plate Recognition units, long-range UHF scanners, or ticket tracking networks.
Q5: How does the enclosure remain rust-proof under tough outdoor conditions?
A: Each barrier cabinet is crafted from dense 2.0mm cold-rolled steel, receives a tough anti-rust zinc undercoat, and is finished with an architectural powder coating, successfully fulfilling IP54, IP65, or IP66 ingress protection ratings.
Q6: What integrated vehicle protection devices can be linked to the unit?
A: The drive system monitors current feedback continuously to execute an automatic reverse rebound if an obstruction is met. It also features dedicated wiring terminals for active infrared photo eyes, ground induction loop detectors, and a manual mechanical clutch release for sudden blackouts.
Q7: What is the expected maintenance lifecycle of the internal motor drive?
A: Thanks to our industrial brushless configuration and high-strength sinus linkage mechanics, our gearboxes achieve an MCBF of up to 10 million full cycles, practically eliminating daily maintenance needs.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Traffic Barriers | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Parking Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom | Drop Arm Barrier | Parking Revenue Control | Access Control Gate Hardware | Automatic Boom Arm | Toll Gate Barrier System | Vehicle Loop Detector Module | Anti-Crash Traffic Gate Operator | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator Chassis | Industrial Access Control Workshop | Articulated Folding Arm Gate Mechanism | Security Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader | Automatic Swing Barrier Turnstile | Speed Gate Pedestrian Control Barriers | Inductive Vehicle Detector | Parking Lot Barrier Gate 220v Brushless DC Motor Cabinet | Supermarket Entrance Gate System | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Streamline vehicle logging with our enterprise-grade LPR parking system software. Features advanced automatic number plate recognition cameras and embedded databases for real-time tenant and visitor tracking.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
