Optimize fleet logistics with our all-in-one automatic vehicle management system. Combines robust ANPR, LPR, and ALPR deep learning software with HD analytics cameras for perfect day and night reads.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

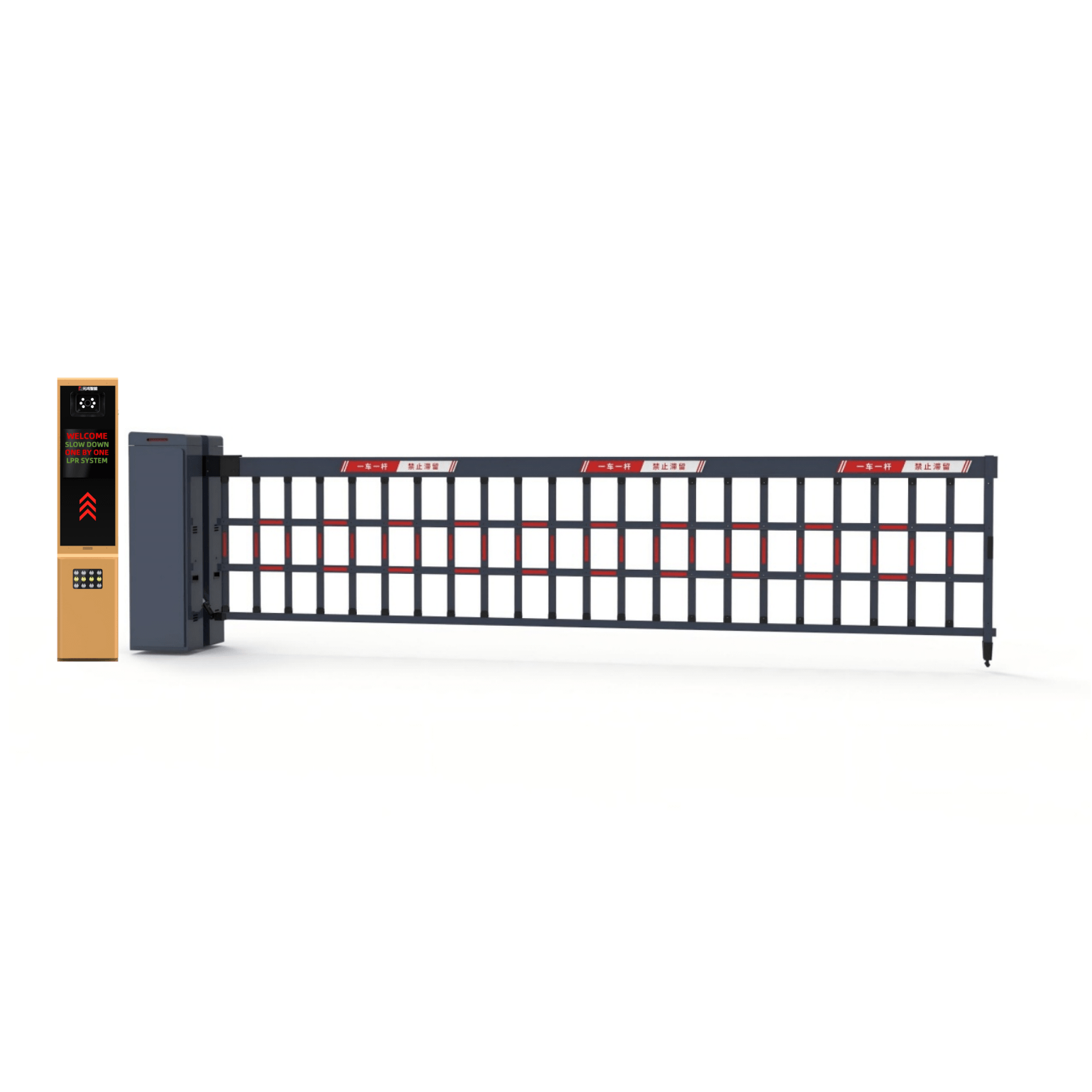

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
User-Friendly Control Interface: Features an integrated smart motherboard designed for streamlined local adjustments, facilitating direct credential deployment, simple terminal calibration, and fast field setups for busy multi-lane operations.
Unified Modular Core Layout: The optimized mechanical structure simplifies installation and guarantees prompt, hassle-free physical maintenance cycles across your automated parking gate barrier grid infrastructure.
Premium Steady Drive Performance: Integrates a heavy-duty DC brushless motor with stable frequency conversion mechanics to ensure precise arm positioning, fluid travel cushioning, and ultra-low noise signatures.
Proactive Layered Safety Protocols: Equipped with responsive perimeter safety safeguards, including immediate automatic rebound upon contact, anti-collision monitoring buffers, and an ergonomic power-off manual lift clutch system.
Universal Checkpoint Integration: Built-in terminal interfaces enable direct plug-and-play wiring to high-capacity contactless card reader pedestals, secure physical pedestrian turnstiles, high-speed commercial speed gate lanes, and supermarkets entrance gates utilizing our durable vehicle detector parking lot barrier gate 220v brushless dc motor cabinet.

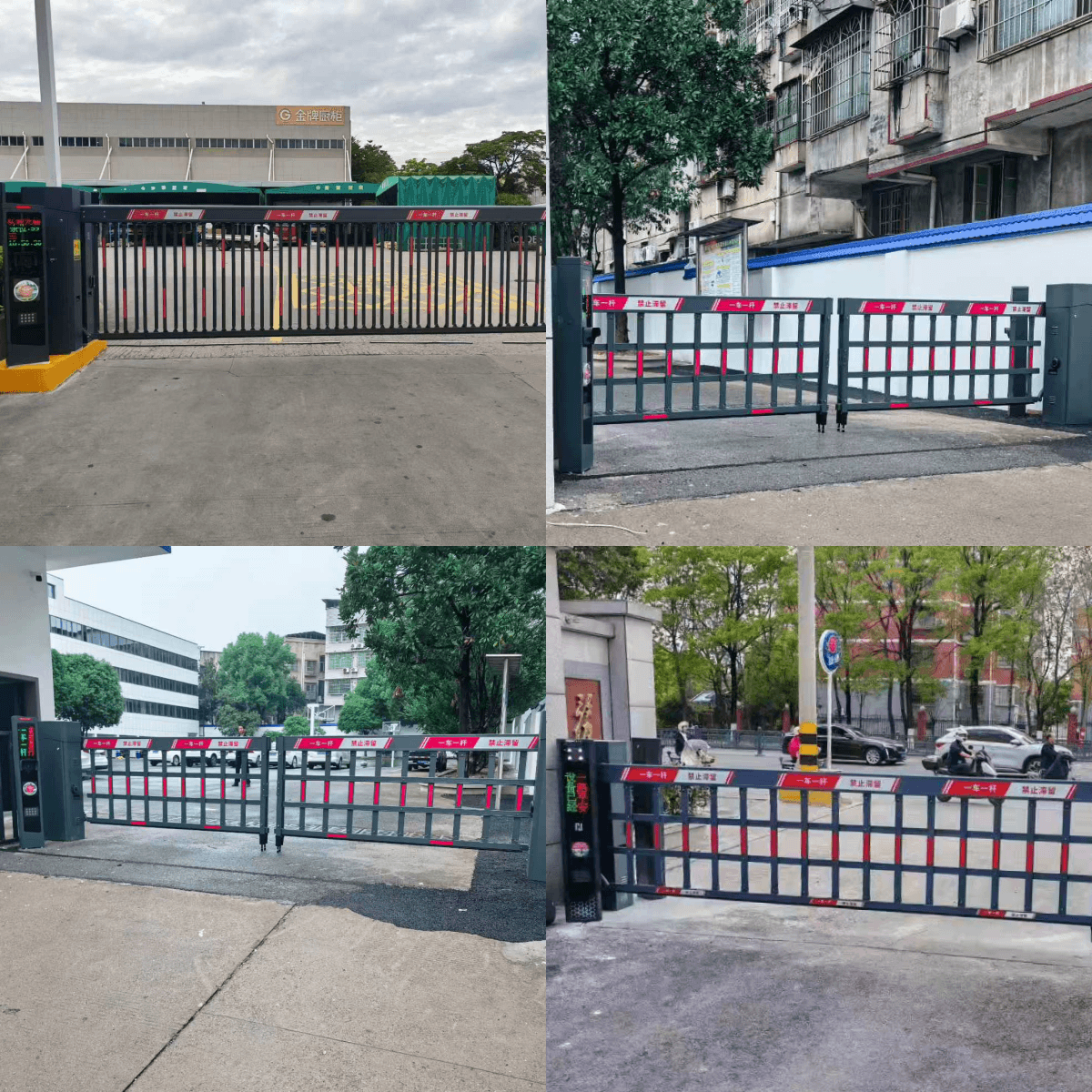

Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged, heavy-duty commercial parking lot gate mechanism hardware provides ultimate operating reliability for system integrators, public transport operators, municipal authorities, and commercial property developers worldwide.
Strategic Market Positioning: Expert focus on heavy-duty straight-arm gate operators, multi-tier fence barrier gates, folding arm barriers, and advanced alpr lpr car plate system software integration.
Global Deployment Footprint: Proudly supplying toll operators, residential estate developers, and commercial contractors across 200+ countries and regions including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering complete perimeter security project site assessments, design blueprints, system hardware installation training, and one-stop dedicated technical consultation.
Convenient Structural Design: Custom-engineered internal tooling and molds facilitate rapid site deployment, quick installation, and worry-free field maintenance.
Technological Innovation Barriers: Possessing an extensive intellectual property portfolio with over 100 core product patents covering DC brushless control boards and barrier safety systems.
Highly Professional Engineering Team: Core technical R&D and production management teams boast over 20 years of in-depth industrial access control manufacturing experience.
Uncompromising Service Commitment: Instant 1-minute initial online customer service response, 2-hour technical issue processing, and rapid 2-day closed-loop resolution management.
Q1: What are the configurable opening and closing travel speeds?
A: The operational travel speed spans precisely from 0.6s / 0.9s / 1.5s - 6s (Adjustable). This can be easily modified via the master controller board to suit varying arm configurations, optimizing performance for both rapid toll plazas and wider industrial checkpoints.
Q2: Can the control board accept alternative voltage standards?
A: Yes, the motherboard architecture accommodates native AC 110V or AC 220V power inputs. Additionally, for remote off-grid industrial checkpoints, our low-power DC 24V brushless motor can be linked directly with solar panel array setups and battery backups.
Q3: What is the maximum boom arm profile length supported by this operator?
A: The heavy-duty chassis mechanism drives lightweight, high-tensile aluminum alloy profiles ranging from 1m - 6m (Customizable). For underground parking lots with low clearance ceilings, we provide specialized 90° or 180° articulated folding arm mechanisms.
Q4: Can this system interface with existing ANPR cameras and ticket dispensers?
A: Absolutely. The mainboard terminal block comes standard with onboard dry-contact relays, RS485 communication protocols, and Wiegand interfaces, enabling immediate plug-and-play communication with high-definition License Plate Recognition networks, long-range UHF proximity scanners, and revenue ticketing stations.
Q5: Is the barrier housing engineered for extreme outdoor environmental exposure?
A: Yes, our barrier housings are designed for extreme outdoor environments with waterproof and dustproof features, typically rated IP54 / IP65 / IP66 or higher, utilizing robust UV-resistant powder coatings over a thick 2.0mm cold-rolled steel base chassis.
Q6: What integrated safety features prevent vehicle and pedestrian impact?
A: The motor controller incorporates advanced current feedback sensing that instantly triggers an auto-rebound upon meeting any minor obstruction. Additionally, the motherboard features dedicated terminals for active infrared photo-eyes, inductive vehicle safety loops, and an external mechanical clutch manual override for full power outages.
Q7: What is the certified operational lifecycle of the motor assembly?
A: Driven by a high-precision sinusoidal transmission and premium industrial gears, our DC brushless powertrains achieve a Mean Cycles Between Failure (MCBF) of 3 million / 5 million / 10 million times. The entire drivetrain functions flawlessly under a 100% / Continuous duty cycle with zero routine maintenance.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Parking Gate Barrier | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Parking Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom Operator | Drop Arm Barrier Assembly | Parking Revenue Control Systems | Access Control Gate Hardware | Automatic Boom Arm Operator | Toll Gate Barrier Mechanism | Inductive Vehicle Loop Detector | Anti-Crash Traffic Gate Operator | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator Chassis | Industrial Access Control Workshop | Articulated Folding Arm Gate Mechanism | Security Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader Pillar | Automatic Swing Barrier Turnstile | Speed Gate Pedestrian Control Barriers | Inductive Vehicle Detector | Parking Lot Barrier Gate 220v Brushless DC Motor Cabinet | Supermarket Entrance Gate System | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers | Heavy Duty Electric Vehicle Gate Operator | Commercial Drop Arm Gate Operator | Smart Access Control Driveway Operator | DC Brushless Traffic Control Barrier Gate | Weatherproof Electric Security Boom Barrier | High Volume Automatic Boom Barrier Production | Intelligent Parking Lot Barrier Gates | Motorized Traffic Security Gates | High Speed Automatic Road Barriers | Automated Security Boom Gates | Vehicle Access Damping Systems | Motorized Checkpoint Access Control | Toll Plaza Lane Safety Barriers | Automated Entrance Access Hardware | Heavy Duty Vehicle Access Gates
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Optimize fleet logistics with our all-in-one automatic vehicle management system. Combines robust ANPR, LPR, and ALPR deep learning software with HD analytics cameras for perfect day and night reads.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
