Durable steel parking lock with anti-collision design. Best for factory and business district parking lot security in Surabaya and Medan.
| Type | Professional Parking Management System Indonesia | Place of Origin | Guangdong, China (Export Standard) |
| Brand Name | Baroxon | Model Number | Ba-CL-04 PRO |
| Warranty | 2 Years (After-sales Support) | Selling Units | Single item / Project Bulk |

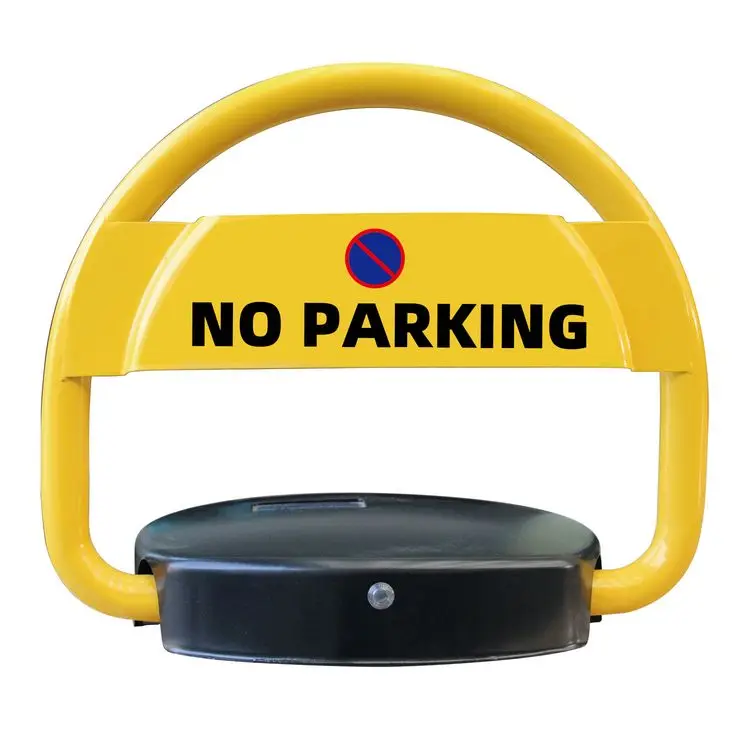

Baroxon Smart Parking Remote Control Lock Specification:

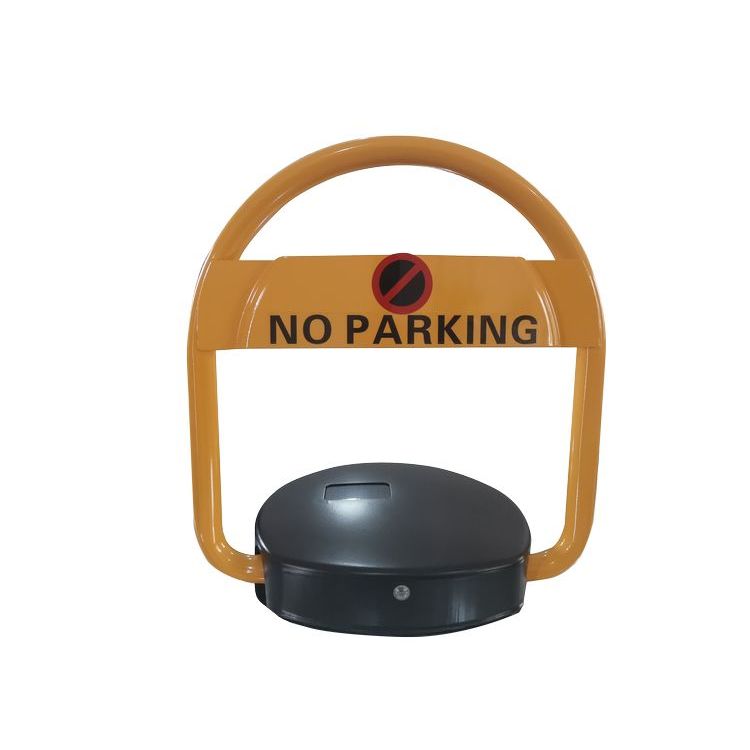

The Baroxon intelligent parking remote control lock is a premium device integrating photoelectric sensing positioning and a heavy-duty anti-collision structure. Designed with a circular shape for modern aesthetics, it offers safety, novel structure, and powerful functionality. This system is the ideal helper for "Pengelola Gedung" (Building Managers) to prevent unauthorized parking in high-end residential areas, shopping centers (Mall), hotels, office buildings, and airports across Jakarta, Surabaya, and Bali.
Premium Material:
- Lock base: High-strength Cold rolled steel plate
- 180-degree anti-collision alarm system
Key Features for Indonesia Projects:
* Smart Intelligence: Anti-collision technology with 20 Meters remote control distance. Automatic alarm triggers if the arm is obstructed.
* Low Maintenance: Flexible options for Accumulator Cell or Dry Cell. Long-lasting performance suitable for tropical climates.
* Heavy Duty Structure: IP67 waterproof rating. The rounded corner design and sturdy thick steel ensure it will not deform. It can endure 500kg pressure without damage in declining condition (Tahan Tekanan Kendaraan).
* Safety Protection: Automatic power cut-off if external force blocks the lifting process to protect the motor.
* Power Indicator: Flashing light or buzzer alarm reminds users when battery needs charging.
* Auto-Reset Function: Rocker automatically resets after 3-5 seconds once external force is removed.
* Anti-theft: Ground fixings are protected inside a locked outer cover, accessible only by the user’s key.
* Multi-Lock Control: One remote can be matched to control multiple Baroxon parking units simultaneously for efficient area management.

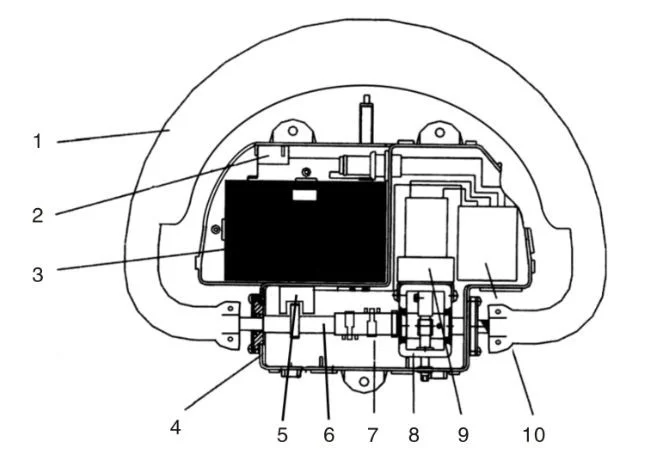

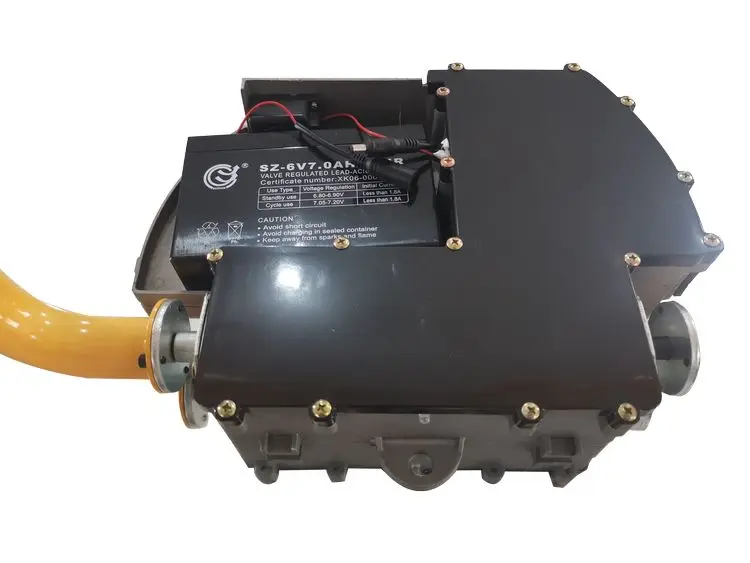

1. Rocker Assembly | 2. Alarm | 3. Battery | 4. Box Body Assembly
5. Photoelectric Sensor | 6. Drive Shaft | 7. Anti-collision Device
8. Gearbox | 9. Electrical Motor | 10. Control Board
Note: Frequently clean dust and debris to maintain optimal "Keamanan Parkir" performance.
| Accessories | Remote control*2, Key*2, Solar Cell*1, Expansion screw*3, Manual*1 | ||
| Open Method | Remote control / Manual power off | Motor Model | KR-540 DC reduction motor |
| Material | Cold rolled steel plate | Dimension | 400*460*75(mm) or 550*460*90(mm) |
| Base Thickness | 2/3(Connection)mm | Shell Thickness | 2.0mm |
| Pipe Wall Thickness | 1.1mm | Gross Weight | 8KGS |
| Net Weight | 7KGS | Package Size | 480*480*90(mm) |
| Output Power | 10W | Running Time | ≤5s (Fast Response) |
| Voltage | 4V | Lifting Height | 400mm |
| Working Current | ≤0.85A | Control Distance | ≥15m |
| Project Advantages | 1. Compression resistance: Withstands 3-5 ton vehicle runover. 2. Waterproof: IP67 rated (Tahan Air). |
||

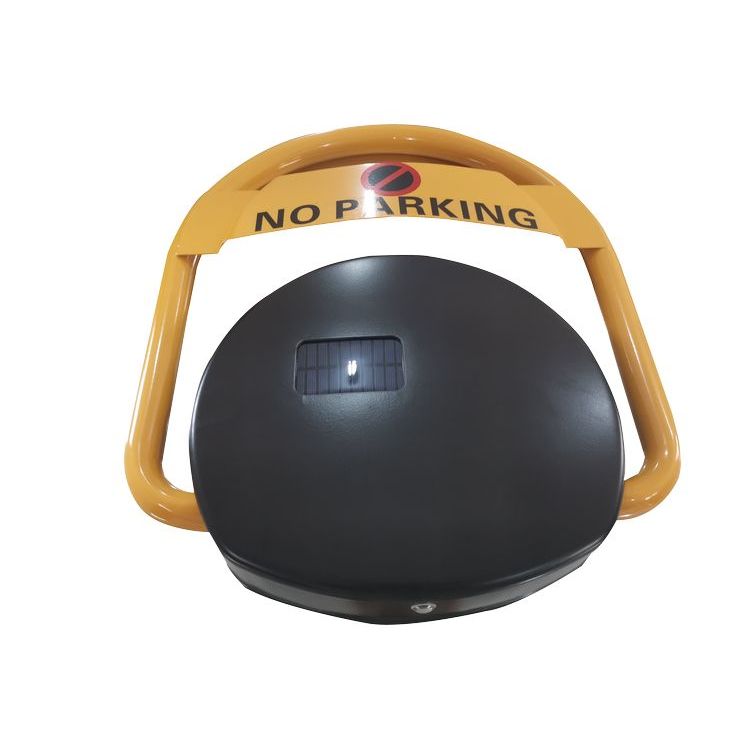

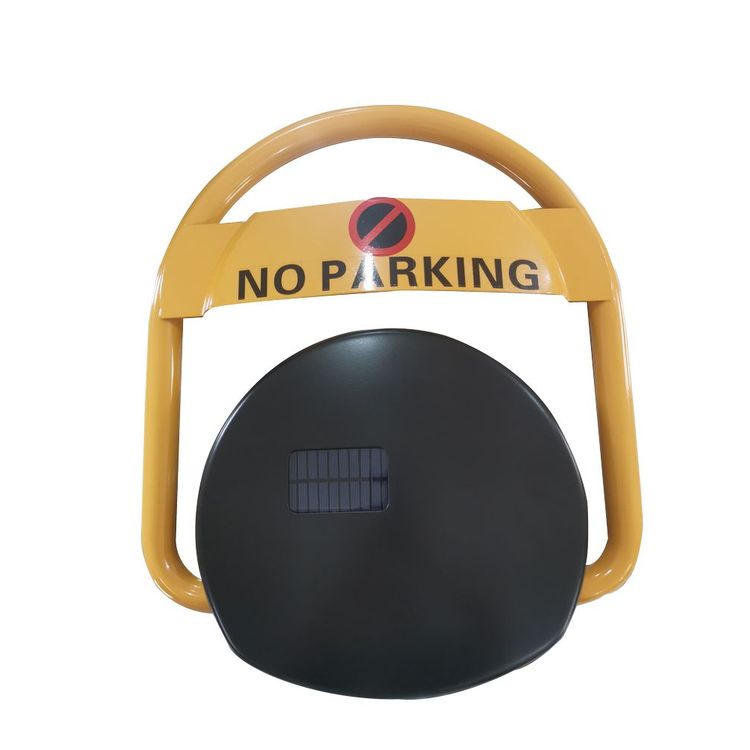

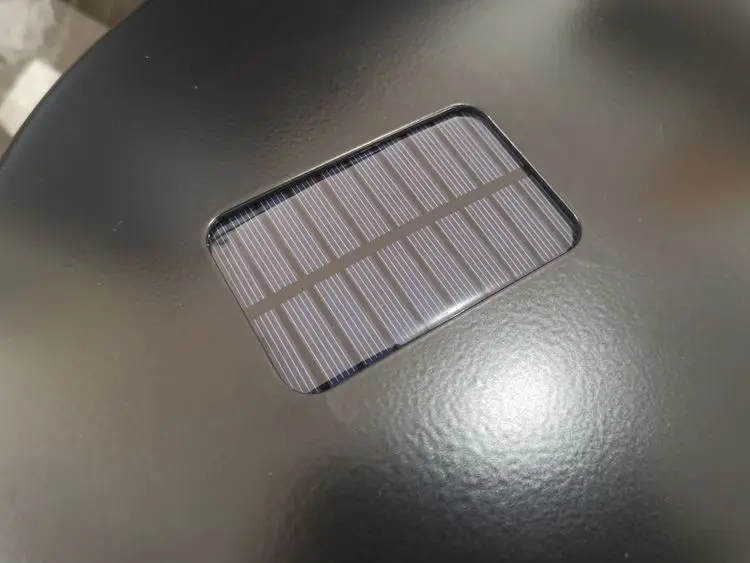

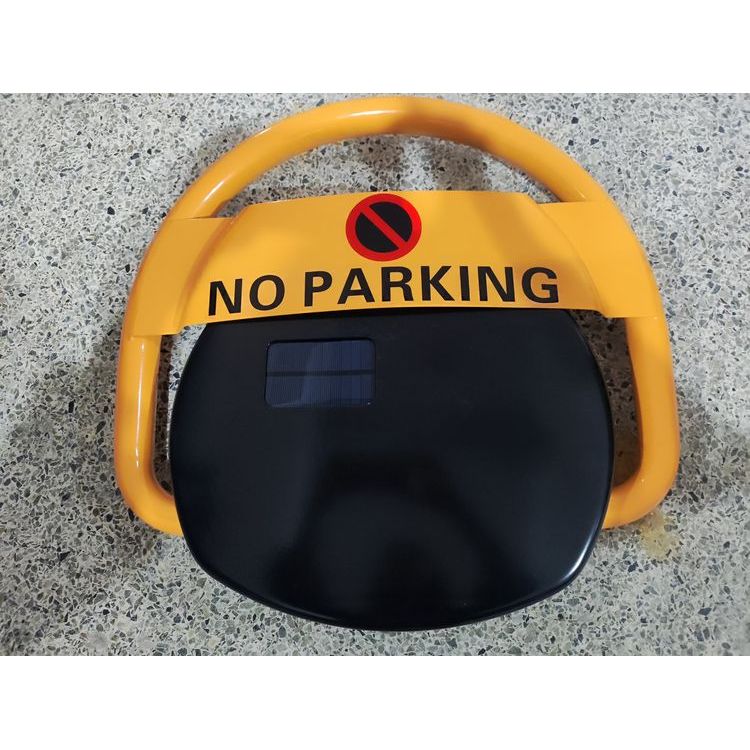

1. Solar Support: Customized solar cover with built-in circuit board for sustainable "Energi Surya" power.
2. Enclosed Base: Internal aluminum base is fully enclosed, waterproof, and more corrosion-resistant than ordinary steel plates, preventing rust in humid climates.
3. Dual Mode: Supports Accumulator cell (upgradeable lithium battery) and solar dual-mode power supply for 24/7 operation.
Video: Installation and Durability Test of Baroxon Ba-CL-04 Remote Parking Lock for Jakarta Smart Buildings
Q: Is the Ba-CL-04 suitable for outdoor parking lots in rainy areas?
A: Absolutely. It features an IP67 waterproof rating (Tahan Air) and an aluminum enclosed base to prevent rust and corrosion.
Q: How long does the battery last?
A: Dry cells can last over 1 year. The accumulator cell (rechargeable) combined with our Solar Panel option provides almost unlimited power for high-traffic "Lahan Parkir".
Q: Can we order with our own logo for a large construction project?
A: Yes, we provide OEM services for "Kontraktor" and "Pengelola Gedung" in Indonesia. Customized solar covers are also available.
Q: What happens if a car hits the locker arm?
A: The 180-degree anti-collision alarm will trigger immediately, and the rocker arm will auto-reset after 3-5 seconds to prevent mechanical damage.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Durable steel parking lock with anti-collision design. Best for factory and business district parking lot security in Surabaya and Medan.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
