Optimize traffic flow with our security parking boom automatic gate barrier, featuring customizable motor power and fully integrated LPR parking system software for high-security estates.
| System Type | RFID Card | Keypad Code | Mechanical Key | Smartphone App | LPR Integration | Special Features | Anti-Theft Enclosure | Built-In Siren | Motion Detection | Night Vision | One-Way Audio | Time & Attendance Integration |
| Data Storage | Cloud Architecture | Local Memory Card | Material Grade | Cold rolled steel | Stainless Steel | Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | Ba-PDPY601 |
| Brand Name | Baroxon | Motor Drive Type | DC 24V Brushless / AC 220V / Precision Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

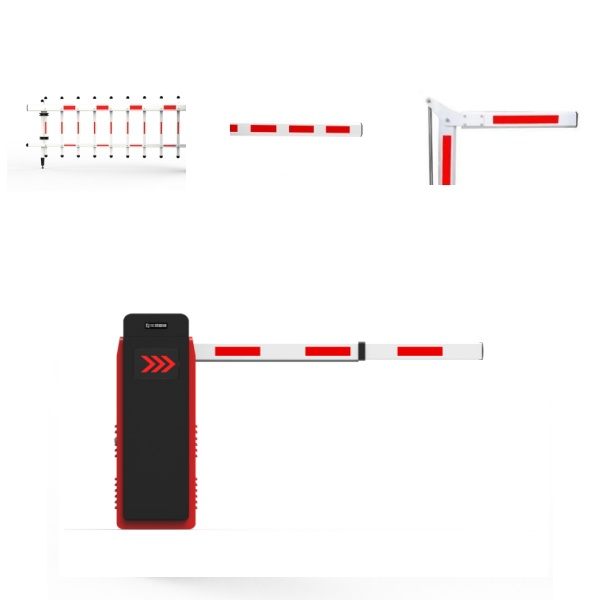

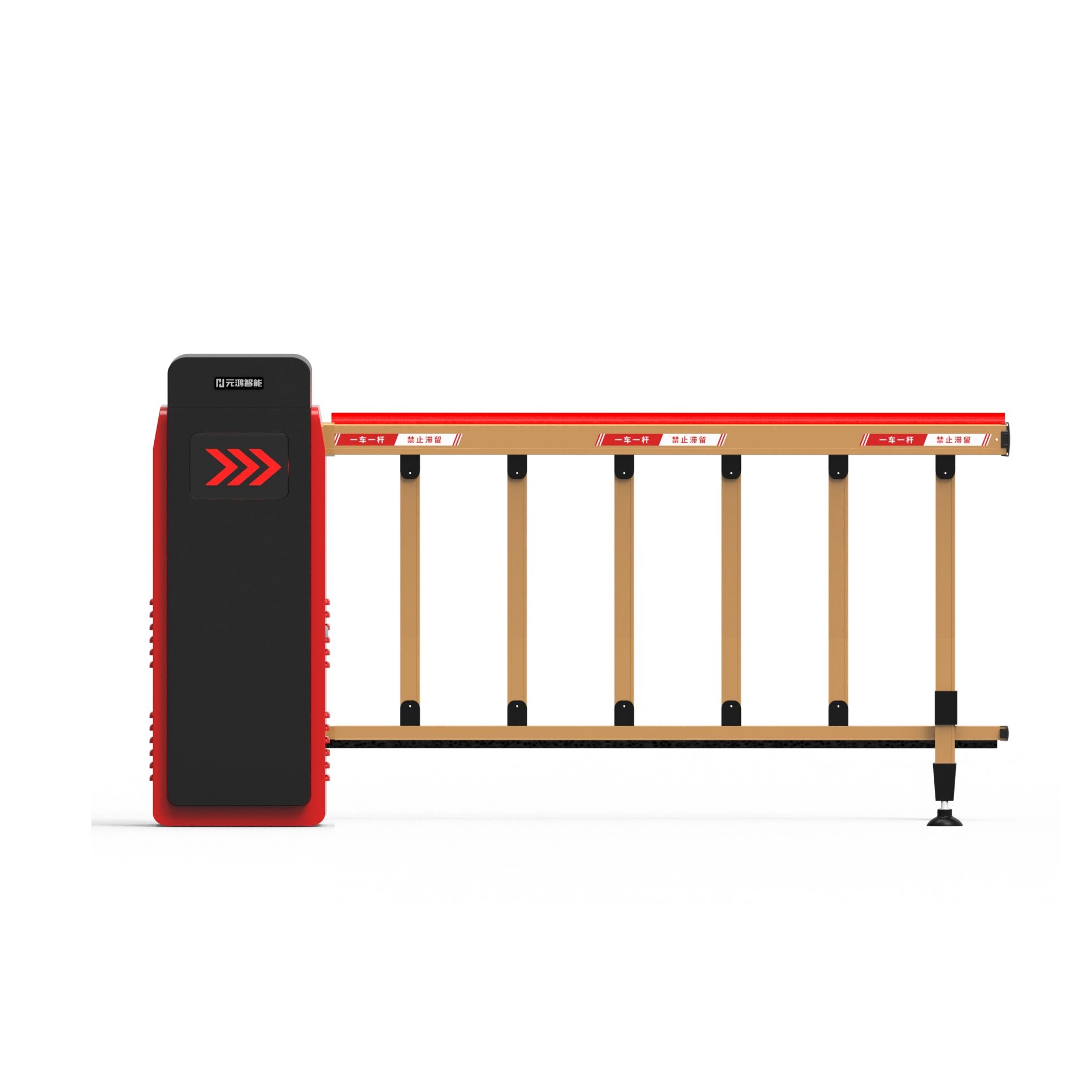

| Boom Arm Configurations | Straight Arm / Articulated Folding (90°/180°) / Security Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Chassis & Finish | 2.0mm Cold-rolled Steel / Weatherproof Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item crate |
User-Friendly Operator Interface: Features a state-of-the-art integrated motherboard for intuitive terminal calibration and multi-lane facility deployment.
Modular Internal Architecture: Advanced Automated Traffic Barriers structural design ensures swift field installation, optimized wiring layout, and effortless maintenance routines.
Heavy-Duty Mechanical Core: Driven by an industrial-grade DC brushless motor and digital frequency conversion technology, delivering flawless positioning accuracy, smooth dampening control, and whisper-quiet operations.
Proactive Vehicle Safety Systems: Outfitted with advanced multi-tier security protection, including built-in anti-collision sensor mechanics, automatic reverse rebound on obstruction, and a manual clutch arm release during power-cut situations.
Comprehensive Access Control Integration: Natively engineered to work with contactless smart card readers, automated pedestrian swing turnstiles, high-speed speed gates, perimeter crowd control systems, magnetic vehicle induction loop detectors, parking lot barrier gate 220v brushless dc motor cabinets, and checkout retail entrance gates.

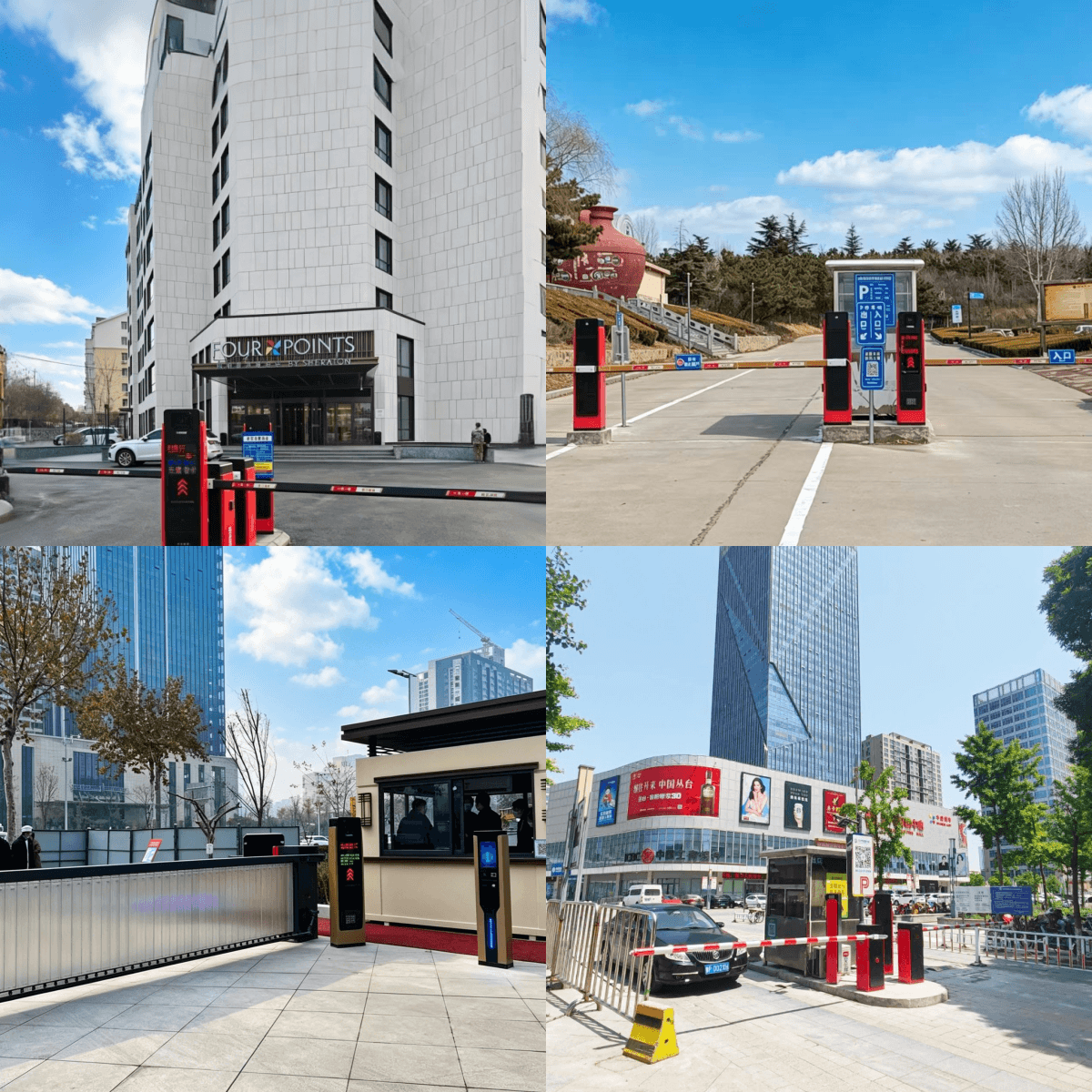

High-Frequency Application Scenarios: Engineered specifically to secure busy commercial shopping malls, corporate headquarters, transit terminals, exhibition centers, gated residential estates, industrial logistics hubs, manufacturing complexes, marine port checkpoints, infrastructure construction zones, international airports, medical centers, university campuses, sports arenas, and automated highway toll Plazas.
Watch our commercial-grade vehicle lane control gates and heavy-duty automatic barrier operators undergoing rigorous quality assurance testing and active loop sensor diagnostics:
As an industry-leading B2B global supplier in the physical security and smart entrance marketplace, Baroxon specializes in full-cycle manufacturing and technical engineering for vehicle access control, high-security facility perimeters, and cloud-managed car park complexes. Our rugged Commercial Parking Lot Gate Mechanism delivers uncompromised reliability for general contractors, commercial integrators, and security wholesale networks worldwide.
Q1: What are the dynamic speed options available for heavy-traffic access points?
A: The native mechanical speed can be adjusted between 0.6 seconds and 6 seconds, depending heavily on the configured powertrain gear ratio and arm length. For high-volume multi-lane plazas requiring zero latency, our specialized High-Speed Toll Plaza Barrier Gates provide ultra-fast throughput while preventing traffic bottlenecks.
Q2: Does the internal control board support dual-voltage inputs and renewable solar arrays?
A: Yes, the integrated control cabinet handles standard AC 110V/220V municipal power grids flawlessly. For remote construction checkpoints or off-grid properties, our energy-efficient DC motherboard controllers interface natively with low-voltage solar panel matrices and backup storage batteries.
Q3: What is the maximum physical boom length supported by the Ba-PDPY601 system?
A: The system supports premium aluminum alloy boom profiles spanning from 1 meter up to 6 meters. We provide custom counterweight tuning at the factory to match your specific lane length requirements, ensuring perfect torque balance.
Q4: Can these automated barriers connect to proprietary LPR or corporate RFID networks?
A: Absolutely. All Baroxon barrier operators feature open-architecture terminal strips supporting Wiegand, RS485, and direct dry-contact relays. This allows seamless plug-and-play communication with License Plate Recognition (LPR/ANPR) camera systems, long-range UHF proximity readers, ticket validators, and security software networks.
Q5: Are these units engineered to handle severe weather, sub-zero temperatures, and coastal salt spray?
A: Yes. The outer enclosure is fabricated from 2.0mm high-tensile cold-rolled steel treated with marine-grade anti-corrosive powder coating. The entire assembly meets strict IP54, IP65, or IP66 environmental ingress ratings, guaranteeing reliable outdoor operation under torrential rains, sandstorms, and sub-zero blizzards.
Q6: What integrated safety layers prevent vehicle damage or arm strikes?
A: The system provides advanced multi-layered vehicle safety protection, featuring internal digital torque profiling that triggers an instant auto-rebound upon structural obstruction. It also includes dedicated inputs for active infrared photo-eyes, vehicle induction loop detectors, and a manual mechanical clutch release to easily raise the arm by hand during a site-wide blackouts.
Q7: What is the certified lifespan rating of the brushless motor assembly?
A: Powered by our advanced sinus-link mechanical movement and high-durability DC brushless core, our gates deliver a verified Mean Cycles Between Failure (MCBF) of up to 10 million operations, translating to decades of trouble-free performance with zero routine component lubrication overhead.
Contact the Baroxon engineering desk today for specialized technical documentation, bulk project tender pricing, and global integrator partnership contracts:
Global B2B Tender Desk: [email protected]
Technical Project WhatsApp Line: +8613405313100
Corporate WeChat Desk: +86 18660196023
Automated Traffic Barriers | Commercial Parking Lot Gate Mechanism | High-Speed Toll Plaza Barrier Gates | Automatic Parking Lot Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Automatic Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom Gate | Automated Drop Arm Barrier | Parking Revenue Control Systems | Commercial Perimeter Access Gate | Automatic Boom Arm Supplier | Anti-Crash Highway Toll Barrier | Vehicle Loop Detector Hardware | Remote Control Commercial Gate Operator | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Access Control Gate Barrier | License Plate Recognition Camera Gate | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator | Industrial Access Control Turnstiles | Articulated Folding Arm Gate Mechanism | Multi-Tier Fence Boom Barrier | Parking Management Hardware Wholesaler | Roadway Security Barriers | Automatic Entrance Control Systems | Electric Car Park Barrier Unit | Contactless Card Reader Checkpoint | Automatic Swing Barrier Turnstile | Speed Gate Access Pedestrian Control Barriers | Parking Lot Barrier Gate 220v Brushless DC Motor | Supermarket Entrance Gate System | Shandong Engineering Security Gate Factory
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Optimize traffic flow with our security parking boom automatic gate barrier, featuring customizable motor power and fully integrated LPR parking system software for high-security estates.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
