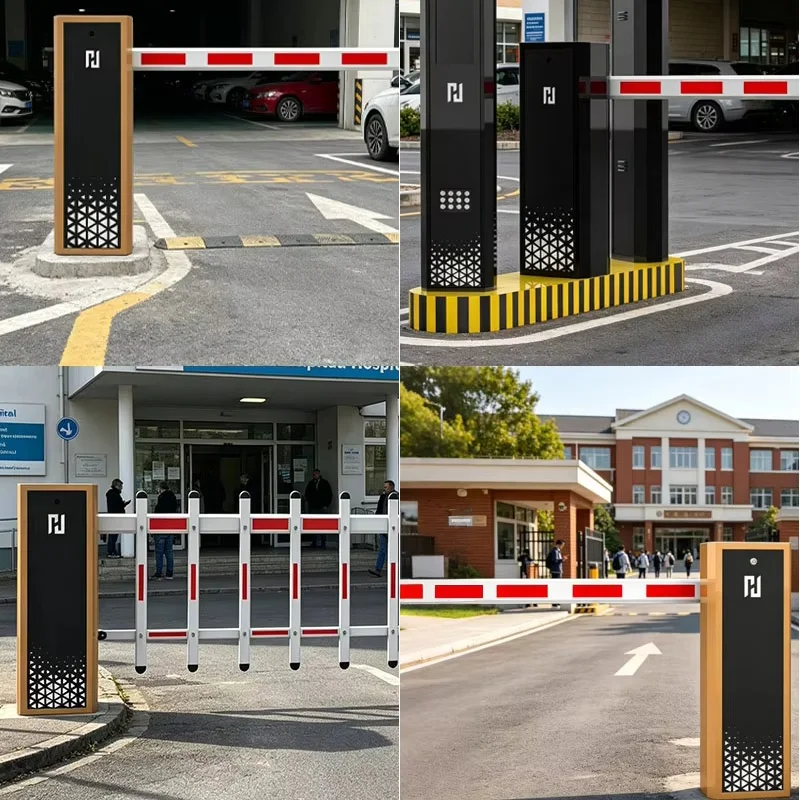

Advanced DC24V smart parking boom gate featuring a high-visibility LED illuminated barrier arm. Ideal for 24/7 commercial parking lots, improving night safety and perimeter security.
Optimizing vehicle access tracks requires high-efficiency control systems and elite durability. The premium YH-0DZ1920PRO Heavy-Duty Automatic Boom Barrier Gate is manufactured by BAROXON Access Control Solutions to deliver flawless driveway performance under high-turnover deployment. Built as a direct replacement for sluggish legacy security gates, this advanced lane control barrier leverages state-of-the-art torque logic to master vehicle ingress. Perfectly matched for multi-tenant retail hubs, freight loading bays, industrial parks, and modern estate entrances, it provides robust perimeter defense around the clock.
| Authentication Type | Card. Code. Key. Smartphone. Other Access Control Systems | Special Features | Remotely controlled take-off and landing. OEM&ODM Support |
| Storage Layout | Cloud. Memory Card Storage Setup | Cabinet Material | Cold rolled steel. Stainless Steel. Zinc Alloy Structure |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor Compatible |
| Motor Power Supply | 110/220VAC +10% High-Tolerance Input | Motor Drive Core | 24V DC brushless motor Integration |
| Operating Speed | 3S-6S (Fully Adjustable Timing Controllers) | Maximum Rod Length | ≤4 meters Rigid Arm Profiles |
| Chassis Dimensions | 1015*320*225 MM Heavy Profile Chassis | Remote Control Reach | ≤30m Field Transmitter Operational Distance |
| Operating Temperature | -30℃~80℃ All-Weather Stability Range | Waterproof Rating | IP55 Sealed Protective Ingress Housing |
Watch our heavy-duty entry boom operators pass rigorous lifecycle testing and real-time speed calibration sequences below:
As an internationally accredited design facility and direct heavy-duty security developer, BAROXON manufactures premier vehicle terminal architectures. We supply specialized engineering crews, global wholesalers, and commercial venue builders with reliable traffic control barrier systems, industrial pedestrian access speed turnstiles, anti-crash driveway defenses, and high-frequency hardware accessories tailored for maximum lane enforcement.
Q1: What are the primary safety integrations built into this lane controller?
A: Safety is managed through intelligent anti-collision logic, which features a highly responsive electronic auto-rebound routine that triggers instantly upon meeting blockages. Additionally, the motherboard is optimized to support infrared photo-eyes, microwave lane radars, and dual-channel safety ground loops.
Q2: Can the system easily handle continuous traffic loads in heavy industrial bays?
A: Yes. Utilizing an advanced 24V DC brushless motor paired with intelligent speed profiles, our smart boom barrier gate is engineered for extreme stability. It runs on a 100% continuous duty cycle, enabling reliable operation throughout consecutive shifts.
Q3: Is the motherboard compatible with third-party software controllers and RFID access hubs?
A: Absolutely. The integrated motherboard terminal block supports dry contact connections, standard Wiegand formats, and serial data ports. This allows for seamless, out-of-the-box integration with long-range UHF readers, contactless card scanners, QR ticket counters, and high-speed ANPR/LPR plate recognition cameras.
Q4: What happens to the barrier arm if the local power grid suffers a blackout?
A: The security gate includes an automated power-off lift system that automatically clears the lane when power is cut. Additionally, security personnel can use the mechanical clutch release key to adjust or secure the arm manually.
Q5: Can the boom profile be customized for underground layouts with restricted vertical height?

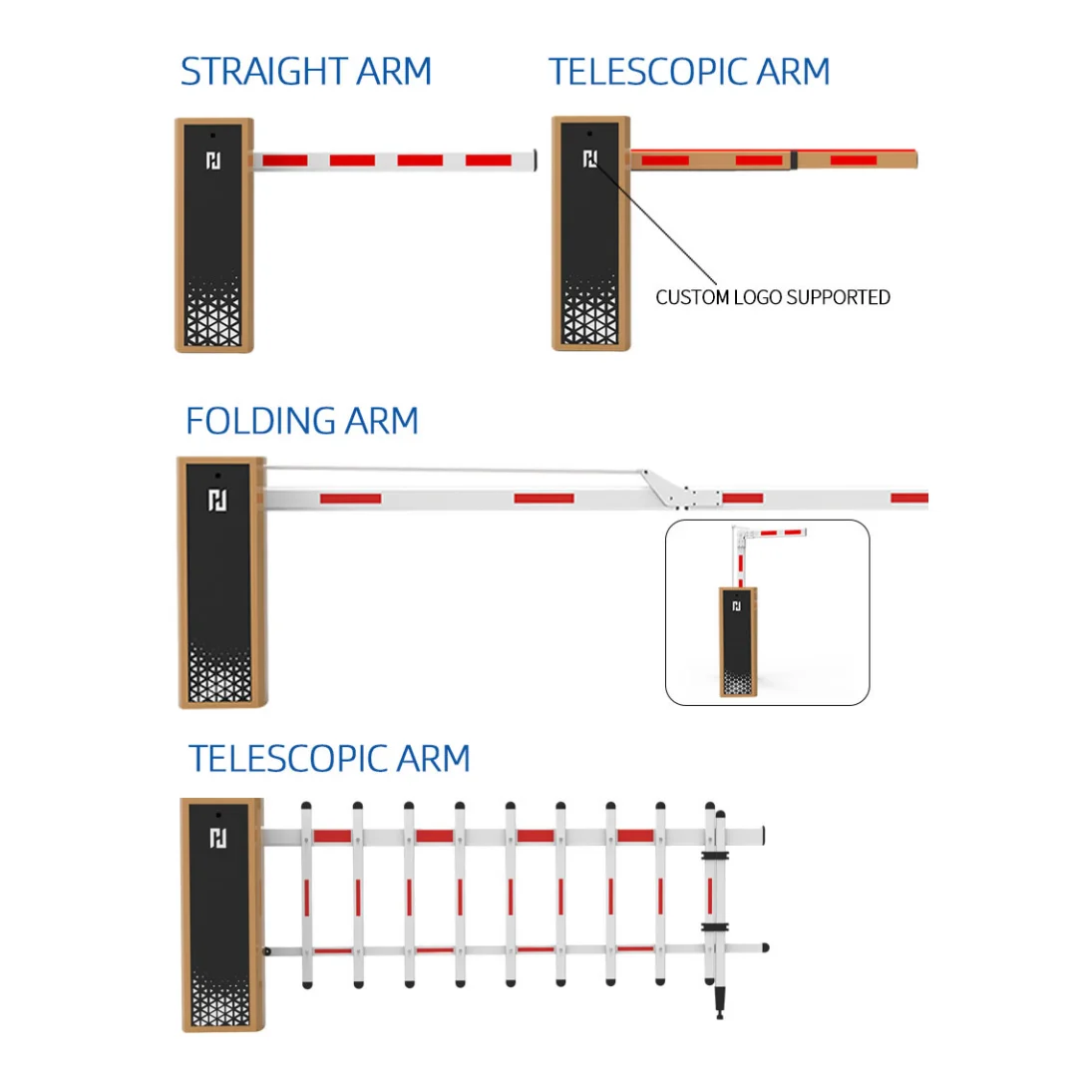

A: Yes, we provide full customization options for various project specifications. While the standard YH-0DZ1920PRO model supports straight rigid aluminum rods up to ≤4 meters, we also manufacture 90° or 180° articulated folding boom arms and high-visibility fence profiles.
Q6: How effectively does the protective shell resist freezing temperatures and moisture?
A: The cabinet features an IP55 ingress protection rating and is built from thick cold-rolled steel, stainless steel, and zinc alloy components. Sealed with an outdoor-grade powder coating, it operates reliably across a wide temperature range of -30℃~80℃.
Q7: What is the expected mechanical service life of the motor core?
A: The brushless DC gear units are engineered for high longevity, supporting over 5 million operational cycles with zero routine internal maintenance. This keeps your field MTTR under 30 minutes.
Contact the BAROXON international distribution and engineering project desk to request comprehensive price breakdowns, OEM configuration guides, or detailed structural drawings:
Corporate Sales Department: [email protected]
Global WhatsApp Hotline: +8613405313100
WeChat Enterprise Representative: +86 18660196023
Automatic Parking Gate Systems | Traffic Control Barrier Wholesaler | Electric Security Boom Openers | Heavy Duty Parking Lot Gate Opener | Drop Arm Barrier Factory Supply | Commercial Driveway Gate Operators
Automatic Parking Gate, Boom Barrier Gate, Traffic Control Barrier, Parking Lot Gate Opener, Commercial Driveway Gate, Electric Security Boom, Drop Arm Barrier, Parking Revenue Control, Access Control Gate, Automatic Boom Arm, Toll Gate Barrier, Vehicle Loop Detector, Anti-Crash Traffic Gate, Remote Control Gate Opener, Vehicle Barrier Systems, Perimeter Security Solutions, RFID Gate Barrier, License Plate Recognition Gate, High Speed Toll Barrier, Heavy Duty Security Gate, 24V DC Brushless Gate Operator, Industrial Access Control, Articulated Folding Arm Gate, Fence Boom Barrier, Parking Management Hardware, Security Gate Manufacturer, Wholesale Gate Openers, Roadway Security Barriers, Entrance Control Systems, Electric Car Park Barrier, Automated Checkpoint Arm Operator, Stainless Steel Driveway Guard, Digital Frequency Conversion Barrier, Zinc Alloy Access Enclosure, Shandong Perimeter Security Plant, Multi Tenant Parking Gate Supply, High Visibility Guard Rails, Wireless RF Lane Transmitters, Pedestrian Control Access Terminals, Commercial Security Gate Bids UK, Logistics Yard Entry Barrier US, Low Clearance Garage Articulated Boom, Heavy Duty Access Gate Machinery.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Advanced DC24V smart parking boom gate featuring a high-visibility LED illuminated barrier arm. Ideal for 24/7 commercial parking lots, improving night safety and perimeter security.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
