Secure deep multi-lane commercial entrances with our electronic RFID parking boom gate system, utilizing a 6-meter long-range coverage arm and modern digital loop sensors.
| Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other | Place of Origin | Shandong. China |
| Material | Cold rolled steel. Stainless Steel. Zinc Alloy | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Storage | Cloud. Memory Card |
| Type | Card. Code. Key. Smartphone. Other | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

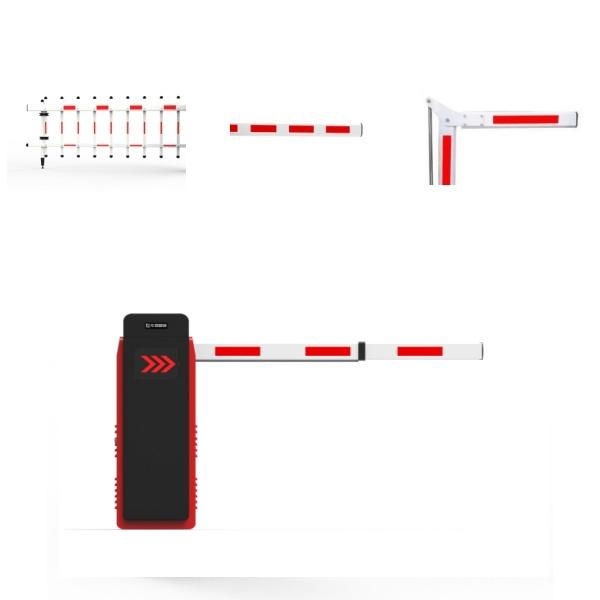

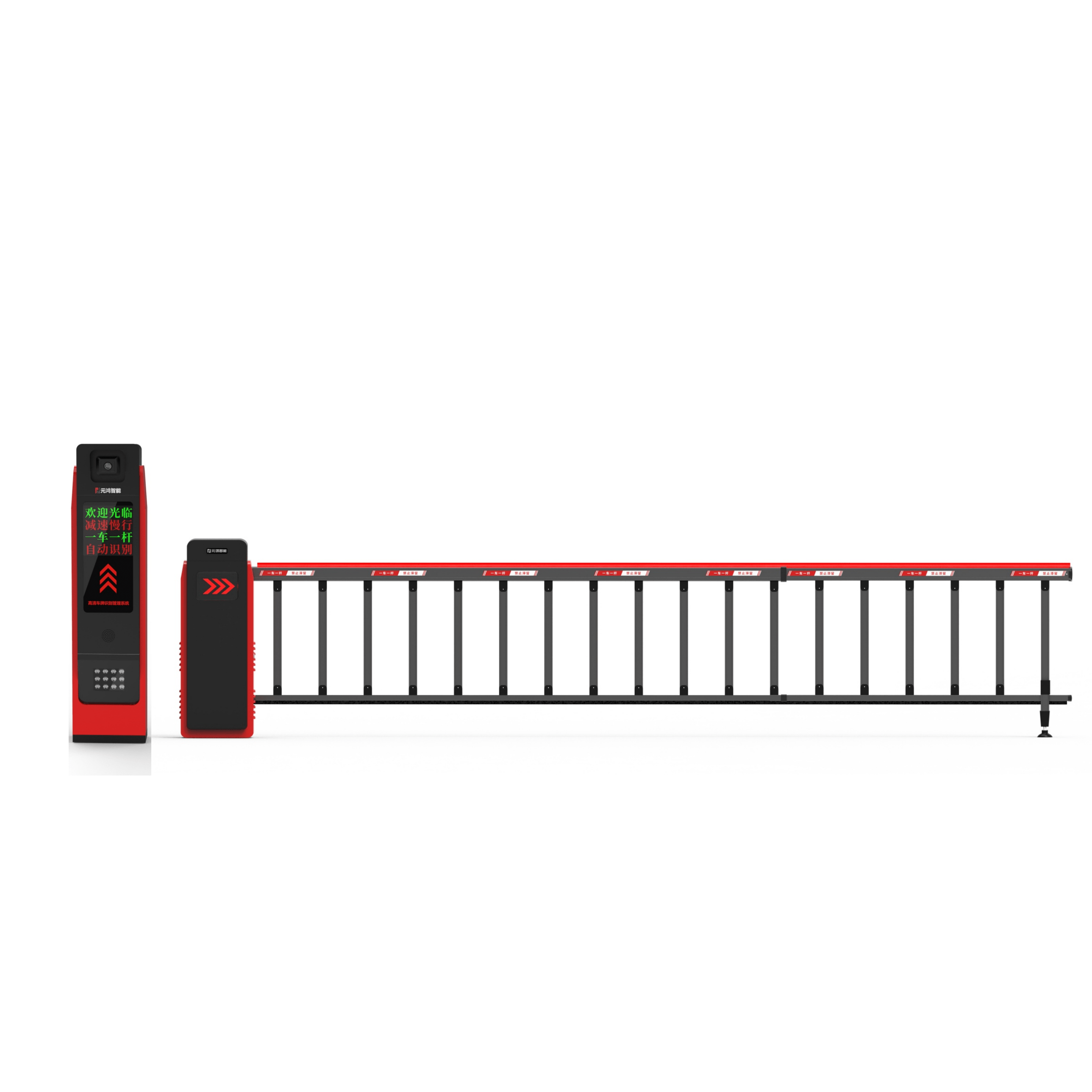

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
Operator-Centric Mainboard Logic: Engineered with an optimized smart micro-controller logic board supporting rapid onsite deployment, multi-protocol proximity chip card authorizations, and continuous parameter adjustments for enterprise parking systems.
Modular Enclosure Architecture: Features a simplified standalone mechanical design to facilitate rapid driveway deployment and minimum field maintenance, presenting a highly resilient automated parking gate barrier system optimized for high-intensity vehicle processing lanes.
Heavy-Duty Mechanical Drive: Utilizes a robust industrial-grade DC brushless motor coupled with state-of-the-art variable frequency conversion drive technology to ensure precise arm deceleration, smooth sinusoidal travel profiles, and quiet operation at any busy entrance gate checkpoint.
Intelligent Proactive Protection: Furnished with active safety features including auto-rebound obstruction detection sensors, structural anti-collision break-away arm adapters, and an ergonomic power-off manual lift clutch layout compatible with contactless card reader swing barrier gate units.
Universal Access Interfacing: Effortlessly integrates with high-security speed gates, pedestrian control barriers, inductive ground loop hardware, and contactless badge readers utilizing our standardized vehicle detector parking lot barrier gate 220v brushless dc motor configuration for supermarket entrance gate systems and transport hubs.

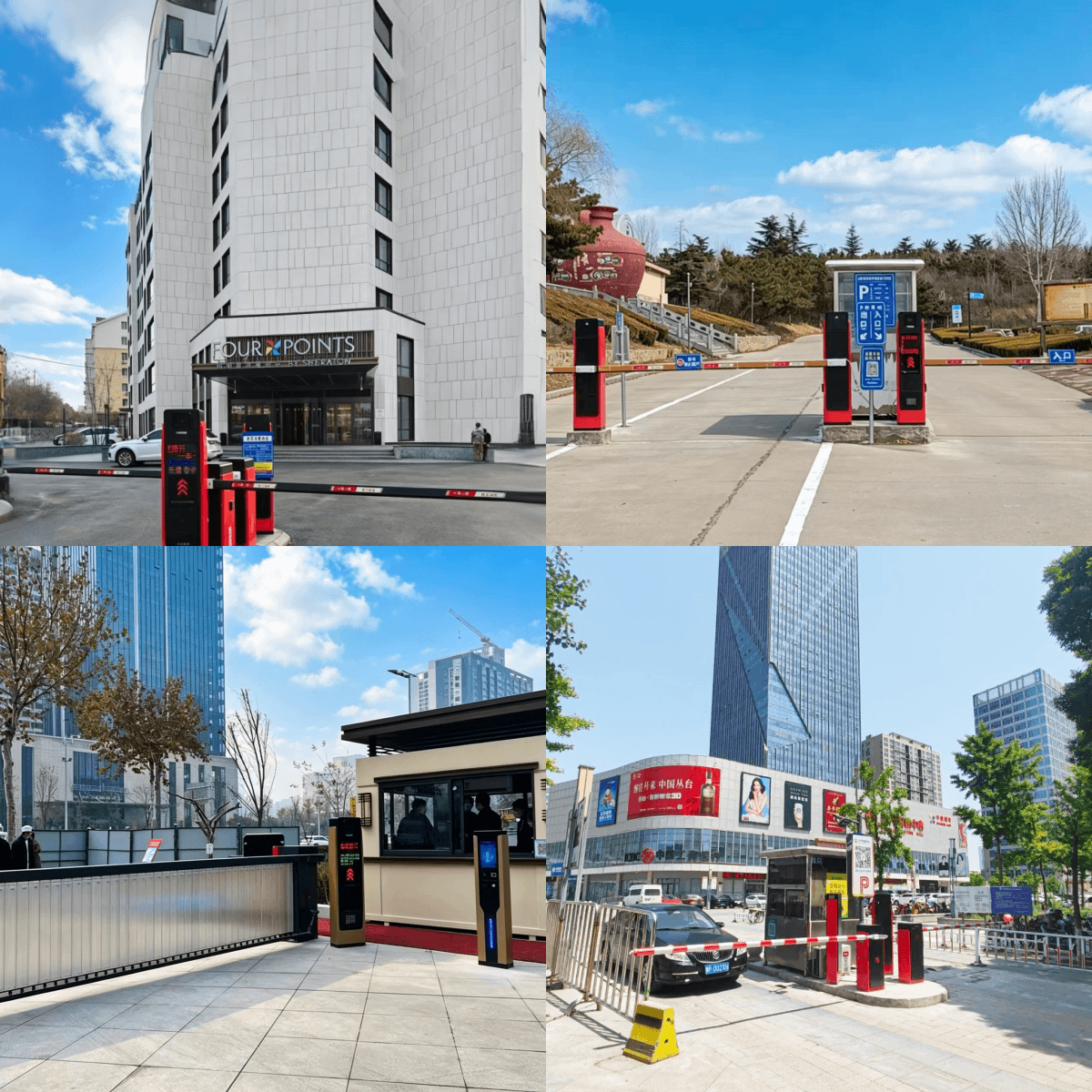

Target Deployment Settings: Ideally suited for commercial shopping malls, high-rise office buildings / business centers, luxury hotels & resorts, exhibition centers, residential apartment complexes, private villas, and condominiums.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier pioneer in the global perimeter security and entry automation industry, BAROXON delivers comprehensive turnkey manufacturing and customized hardware engineering for high-volume vehicle access control, industrial perimeter safety, and intelligent parking facility layout. Our rugged, heavy-duty commercial parking lot gate mechanism lineups offer unmatched reliability for toll operators, commercial facility managers, and high-security installations worldwide.
Strategic Market Positioning: Expert engineering focus on high-throughput straight-arm gate systems, multi-tiered security fence barriers, industrial articulated folding arms, and seamless enterprise alpr lpr car plate system hardware integrations.
Global Deployment Footprint: Proudly supplying highway toll operators, corporate real estate developers, and premier gate automation contractors across 200+ regions, heavily serving the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Providing comprehensive blueprint layout assessments, custom architectural lane designs, hands-on system installer hardware training, and dedicated remote technical consultation.
Convenient Structural Design: Proprietary internal drive molds and modular chassis configurations facilitate ultra-fast physical lane deployment, rapid mounting, and completely hassle-free field maintenance.
Technological Innovation Barriers: Sustaining a vast global intellectual property portfolio with over 100 core patents covering intelligent DC brushless control boards and highly sensitive obstacle-reversal arrays.
Highly Professional Engineering Team: Core hardware R&D divisions and automated manufacturing facility workflows are led by industry veterans boasting over 20 years of specialized security turnstile and barrier arm engineering experience.
Uncompromising Service Commitment: Delivering standard-setting 1-minute initial online customer service responses, 2-hour immediate technical issue diagnostics, and swift 2-day closed-loop site resolution management.
Q1: What are the configurable opening and closing travel speeds of this system?
A: The adjustable speed spectrum ranges specifically from 0.6s / 0.9s / 1.5s - 6s (Adjustable). This operational velocity can be tuned directly via the logic controller board to perfectly complement distinct arm profiles, providing quick operation for toll plazas or standard pacing for commercial lots.
Q2: Can the internal power system adapt to global power standards and backup grids?
A: Yes, our multi-voltage power modules natively accept raw AC 110V or AC 220V inputs. Because the core drive architecture runs on a low-voltage DC 24V brushless motor, it can seamlessly wire directly to alternative solar arrays and uninterruptible backup battery banks for remote or off-grid security terminals.
Q3: What is the maximum boom arm profile length supported by the heavy-duty chassis?
A: The high-torque mechanics accommodate lightweight aluminum alloy boom arms from 1m - 6m (Customizable). For space-restricted underground garages with low ceilings, we provide specialized 90° or 180° articulated folding arm profiles to manage lanes safely.
Q4: Can this vehicle gate interface with license plate capture and RFID access modules?
A: Absolutely. The integrated motherboard contains direct plug-and-play dry contact relays, RS485 lines, and Wiegand interfaces. This lets you connect seamlessly to high-speed License Plate Recognition nodes, long-range UHF proximity card readers, or automatic pay-on-foot ticketing machinery.
Q5: Is the barrier housing engineered for continuous, harsh outdoor exposure?
A: Yes, the enclosures are constructed using heavy 2.0mm cold-rolled steel and sealed to meet rigorous IP54 / IP65 / IP66 protection ratings. The metal undergoes a multi-stage automated powder coating treatment to prevent rust and corrosion from intense UV rays, frost, and driving rain.
Q6: What built-in safety mechanisms prevent accidental vehicle or pedestrian impact?
A: The motor control unit features smart digital current monitoring that reverses arm direction instantly if the slightest obstruction is encountered. It also contains dedicated onboard connection terminals for active infrared photo-eyes, vehicle loop detectors, and a mechanical clutch manual override in case of complete electrical blackouts.
Q7: What is the certified operational lifespan and duty cycle of the drive core?
A: Our premium brushless motors and sinusoidal mechanical gear transmissions are engineered for a Mean Cycles Between Failure (MCBF) of 3 million / 5 million / 10 million times. The system is certified for a 100% / Continuous duty cycle to ensure reliable performance under high-volume lane demands with virtually zero maintenance.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Parking Gate Barrier | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Access Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom Operator | Drop Arm Barrier Assembly | Parking Revenue Control Systems | Access Control Gate Hardware | Automatic Boom Arm Operator | Toll Gate Barrier Mechanism | Inductive Vehicle Loop Detector | Anti-Crash Traffic Gate Operator | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator Chassis | Industrial Access Control Workshop | Articulated Folding Arm Gate Mechanism | Security Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader Pillar | Automatic Swing Barrier Turnstile | Speed Gate Pedestrian Control Barriers | Inductive Vehicle Detector | Parking Lot Barrier Gate 220v Brushless DC Motor Cabinet | Supermarket Entrance Gate System | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers | Heavy Duty Electric Vehicle Gate Operator | Commercial Drop Arm Gate Operator | Smart Access Control Driveway Operator | DC Brushless Traffic Control Barrier Gate | Weatherproof Electric Security Boom Barrier | High Volume Automatic Boom Barrier Production | Intelligent Parking Lot Barrier Gates | Motorized Traffic Security Gates | High Speed Automatic Road Barriers | Automated Security Boom Gates | Vehicle Access Damping Systems | Motorized Checkpoint Access Control | Toll Plaza Lane Safety Barriers | Automated Entrance Access Hardware | Heavy Duty Vehicle Access Gates | Remote Key Fob Parking Barrier | Automatic Vehicle Gate Operator | Motorized Access Control Boom Gate | Industrial Driveway Security Barriers | Heavy Duty Security Barrier Arms | Multi Rail Fence Gate Barriers | Intelligent Parking Entrance Gate | Microprocessor Parking Gate Control Board | High Torque Servo Motor Barrier | Fast Execution Toll Way Gate | Continuous Duty Cycle Access Barriers | IP66 Certified Waterproof Barrier Enclosure | Powder Coated Steel Barrier Cabinets | Mechanical Clutch Manual Release Gates | Auto Rebound Parking Barrier Sensors | Long Range Proximity Reader Gates | Automated Parking Gate Integration | Commercial Perimeter Security Barriers | High Lifecycle Access Barrier Motors | Automatic Drop Arm Gate Supplier | Heavy Duty Driveway Security Boom | Vehicle Checkpoint Access Gates | Motorized Roadway Barrier Manufacturer | Automatic Lane Gate Systems | Commercial Grade Boom Arm Gates | High Volume Car Park Barriers | Industrial Checkpoint Security Gates | Motorized Traffic Control Barriers | Automatic Car Park Entrance Barriers | Heavy Duty Motorized Security Gates | Automatic Lane Access Control | Motorized Boom Gate Systems | Smart Entrance Security Barriers | Industrial Perimeter Traffic Gates | Automated Drop Arm Checkpoints | Heavy Duty Revenue Gate Openers | Weatherproof Roadway Security Barriers | Professional Gate Opener Hardware | Commercial Driveway Boom Operators | Intelligent Lane Access Barriers | Motorized Parking Barrier Arms | High Cycle Traffic Access Gates | Automatic Security Barrier Casing | Remote Access Parking Lot Barriers | Heavy Duty Toll Barrier Mechanisms | Automated Checkpoint Boom Operators | Motorized Vehicle Access Control | Industrial Roadway Entrance Barriers | Heavy Duty Automated Security Gates | Commercial Vehicle Control Systems | Multi Lane Parking Entrance Solutions | Automatic Vehicle Ingress Gates | High Performance Security Boom Arms | Low Maintenance Traffic Gate Assemblies | High Traffic Terminal Barrier Operators | Motorized Barrier Arm Systems | Commercial Drop Arm Security Systems | Industrial Entrance Gate Operators | Heavy Duty Perimeter Control Gates | Automated Lane Ingress Control Barriers | High Performance Parking Control Boom | Professional Driveway Access Barriers | Intelligent Traffic Entrance Operators | Motorized Checkpoint Barrier Assembly | Weatherproof Commercial Barrier Casings | High Efficiency Vehicle Control Operators | Automated Vehicle Gate Mechanisms | Industrial Entrance Security Turnstiles | Heavy Duty Revenue Collection Gates | Commercial Perimeter Control Systems | Smart Parking Lot Access Barriers | High Performance Traffic Security Barriers | Automated Highway Access Gates | Motorized Perimeter Security Turnstiles | Heavy Duty Traffic Control Operators | Industrial Driveway Control Operators | Commercial Grade Barrier Systems | High Performance Access Control Barriers | Automated Checkpoint Access Barriers | Motorized Roadway Access Operators | Heavy Duty Entry Point Barriers | Commercial Entrance Access Operators | Industrial Grade Vehicle Gates | High Performance Drop Arm Barriers | Automated Lane Access Systems | Motorized Revenue Control Barriers | Heavy Duty Perimeter Control Turnstiles | Commercial Traffic Access Systems | Industrial Ingress Control Operators | High Performance Vehicle Barrier Gates | Automated Traffic Control Enclosures | Motorized Checkpoint Access Gates
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Secure deep multi-lane commercial entrances with our electronic RFID parking boom gate system, utilizing a 6-meter long-range coverage arm and modern digital loop sensors.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
