Reliable heavy-duty automatic barrier gate featuring an efficient brushless motor. Perfectly suited for gated communities and residential complexes requiring secure, continuous vehicle access control.
Managing continuous vehicle throughput requires heavy-duty mechanical endurance and precision control. The industrial-grade YH-PDPY601 High-Speed Traffic Control Barrier is engineered by BAROXON Access Control Solutions to deliver flawless checkpoint regulation under the most demanding severe-duty deployment cycles. Built for continuous operation, this advanced toll plaza and commercial entrance gate operator provides an ideal perimeter defense for high-traffic logistics yards, automated car parks, and corporate secure facilities.
| Type | Card. Code. Key. Smartphone. Other Smart Credentials | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage Layout | Cloud. Memory Card Storage Setup | Material Configuration | Cold rolled steel. Stainless Steel. Zinc Alloy Structure |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 220V / Servo Motor Options |
| Duty Cycle | 100% / Continuous / 5000 cycles per day Heavy Usage | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Calibration) |

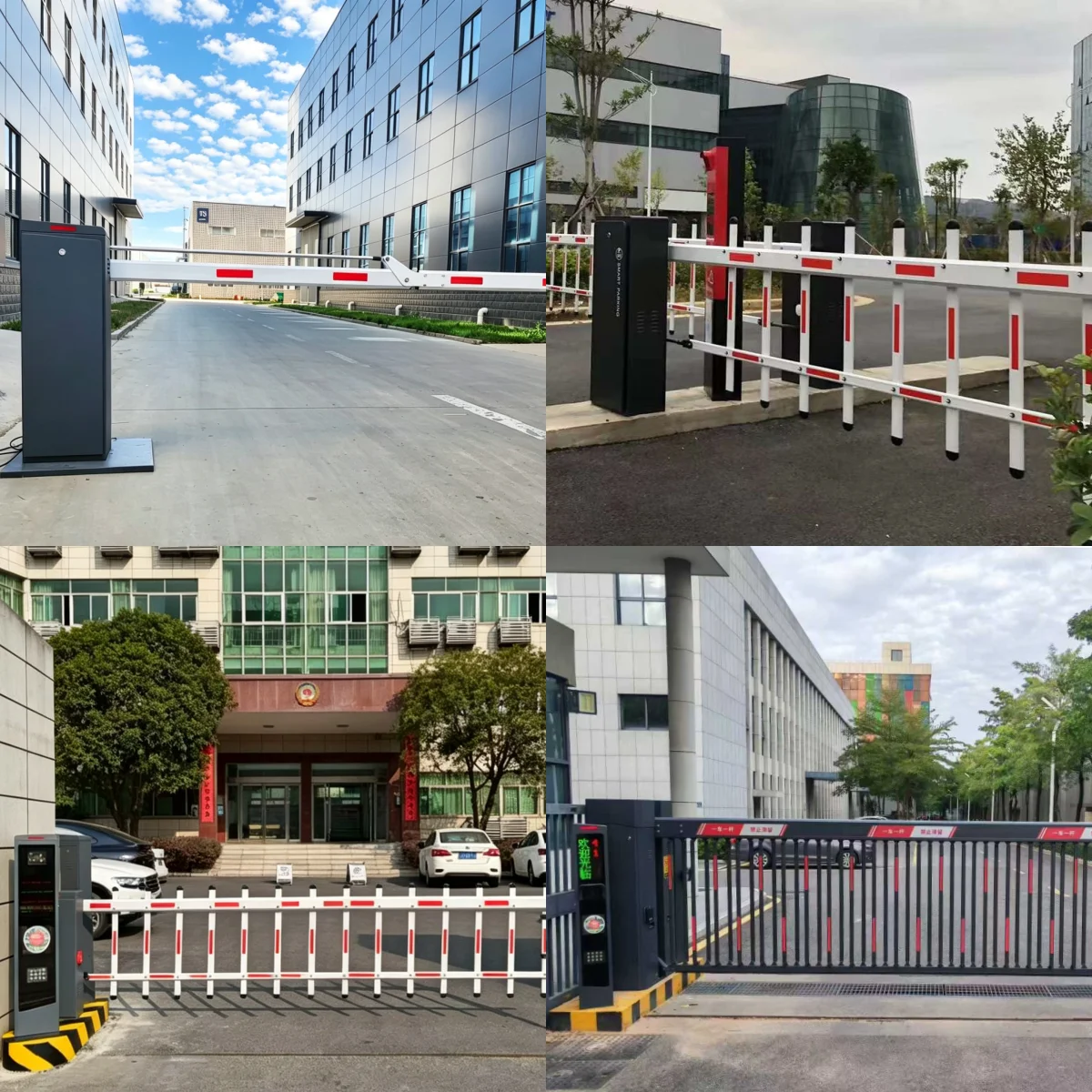

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable Profile Tracks) |
| Power Consumption | Peak: 140W / Standby: <5W Efficient Setup | MCBF (Mean Cycles) | 3 million / 5 million / 10 million times Lifespan |
| Housing Material | 2.0mm Cold-rolled Steel / Powder Coating Chassis | MTTR (Repair Window) | < 30 mins Rapid Modular Maintenance |
| Protection Class | IP54 / IP65 / IP66 Severe Sealing Rating | - | - |
| Selling Units | Single item export-grade secure crate packaging |
Our rugged roadway management mechanisms, including high-speed parking lot barrier gates, automatic toll barriers, vehicle detectors, contactless card reader channels, pedestrian control barriers, speed gate turnstiles, swing barrier gates, and supermarket entrance gate setups, are built for severe continuous duty cycles across global sectors:
• Commercial Sites: Shopping Malls, Corporate Office Complexes, Business Centers, Hotels & Resorts, Exhibition Halls.
• Residential Properties: Multi-Family Apartment Complexes, Private Luxury Villas, Urban Condominiums.
• Industrial & Logistics Hubs: Manufacturing Factories, Heavy Industrial Parks, Distribution Warehouses, Freight Port Terminals, Construction Checkpoints.
• Public Facilities: Airports, Railway Stations, Healthcare Centers, Government Office Buildings, University Campuses, Sports Stadiums, and High-Speed Highway Toll Gates.
Watch our professional automatic drop arm barriers and heavy-duty electric parking gates undergo severe endurance validation and motherboard interface calibration below:
As an internationally accredited manufacturing enterprise and premium terminal system engineer, BAROXON builds high-reliability physical traffic equipment. We supply global wholesale distribution hubs, municipal infrastructure contractors, and site deployment teams with heavy-duty traffic control barrier systems, automatic lane blocks, proximity sensor boards, and rugged vehicle entry mechanisms built to endure severe operational wear.
Q1: What are the target speeds of the YH-PDPY601 access gate?
A: The system supports rapid adjustable open/close intervals of 0.6s / 0.9s / 1.5s - 6s. This adjustable calibration lets engineers tune speeds to perfectly match different arm weights and specific site vehicle flows.
Q2: What maximum arm length can this specific high-speed configuration support?
A: This core operator accommodates straight, folding, or fence profile tracks from 1m to 6m. If your site blueprints call for highly specialized configurations, explore our smart boom barrier gate options for customized lane integration.
Q3: How durable is the cabinet chassis under harsh weather conditions?
A: The unit features a robust 2.0mm cold-rolled steel chassis treated with an outdoor-grade powder coating. It offers options up to an IP66 rating, ensuring dependable operation across an all-weather range of -30℃ to 80℃.
Q4: Can this vehicle gate interface with existing facility security protocols?
A: Yes. The control board handles multiple inputs like long-range UHF readers, RFID cards, LPR (License Plate Recognition) cameras, QR codes, smartphone validation tools, and wireless remote ranges up to ≤30m.
Q5: What mechanical lifespan and repair performance levels are guaranteed?
A: Our systems deliver an MCBF of 3 to 10 million cycles under continuous duty. Thanks to the internal modular engineering layout, the Mean Time to Repair (MTTR) stays under 30 minutes for effortless maintenance.
Q6: What failsafes deploy if site power cuts out unexpectedly?
A: It comes standard with an automated power-off lift mechanism and an internal manual clutch release. This lets staff raise the gate manually during site power failures, while smart anti-collision loops prevent vehicle damage.
Reach out to our global distribution desk to request customized structural drawings, volume pricing tables, or tailored OEM/ODM support:
E-mail Communication Desk: [email protected]
WhatsApp Direct Line: +8613405313100
WeChat Support Handle: +86 18660196023
Automatic Parking Gate Systems | Traffic Control Barrier Wholesaler | Electric Security Boom Openers | Heavy Duty Parking Lot Gate Opener | Drop Arm Barrier Factory Supply | Commercial Driveway Gate Operators
Automatic Parking Gate, Boom Barrier Gate, Traffic Control Barrier, Parking Lot Gate Opener, Commercial Driveway Gate, Electric Security Boom, Drop Arm Barrier, Parking Revenue Control, Access Control Gate, Automatic Boom Arm, Toll Gate Barrier, Vehicle Loop Detector, Anti-Crash Traffic Gate, Remote Control Gate Opener, Vehicle Barrier Systems, Perimeter Security Solutions, RFID Gate Barrier, License Plate Recognition Gate, High Speed Toll Barrier, Heavy Duty Security Gate, 24V DC Brushless Gate Operator, Industrial Access Control, Articulated Folding Arm Gate, Fence Boom Barrier, Parking Management Hardware, Security Gate Manufacturer, Wholesale Gate Openers, Roadway Security Barriers, Entrance Control Systems, Electric Car Park Barrier, Automated Entry Checkpoint, High Torque Servo Motor Mechanism, Shandong Perimeter Protection Plant, Adjustable Open Close Timing Barrier, Heavy Duty Enclosure Cabinets, Multi Lane Vehicle Access Control, Long Range UHF Scanners, Smart Radar Lane Detectors, Weatherproof IP66 Barrier Housing, Contactless Credentials, Pedestrian Flow Turnstiles, Speed Gates, Supermarket Entrance Gates, Manual Mechanical Clutch Override, Digital Frequency Conversion Drive, Freight Terminal Checkpoint Security, MCBF 10 Million Lifespan Operator, Continuous 100 Duty Cycle Mechanism, 2.0mm Cold-rolled Steel Cabinet, Rapid MTTR Replacement Modules, Night Vision Motion Tracking Gate.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Reliable heavy-duty automatic barrier gate featuring an efficient brushless motor. Perfectly suited for gated communities and residential complexes requiring secure, continuous vehicle access control.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
