High-capacity parking lot barrier gate with reliable arm swing mechanism. Ideal for toll access points, providing efficient traffic flow management for entrance and exit lanes.
Optimizing high-traffic vehicular entranceways requires engineered reliability and field endurance. The premier YH-PDPY601 Intelligent Traffic Barrier, manufactured by Baroxon Perimeter Security Systems, delivers high-speed, continuous-duty operations across enterprise hubs, corporate office blocks, public transit terminals, and automated toll collection points.
| Type | Card. Code. Key. Smartphone. Other Smart Credentials | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage Layout | Cloud. Memory Card Storage Architecture | Material Build | Cold rolled steel. Stainless Steel. Zinc Alloy Heavy Enclosure |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor Synchronizations |
| Duty Cycle | 100% / Continuous / 5000 cycles per day Peak Ingress | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable Variable Travel) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable Profile Clearances) |
| Power Consumption | Peak: 140W / Standby: <5W Eco Circuitry | MCBF Rating | 3 million / 5 million / 10 million times Mean Cycles |
| Housing Build | 2.0mm Cold-rolled Steel / Weatherproof Powder Coating | MTTR Metric | < 30 mins Rapid Component Swapout |
| Protection Class | IP54 / IP65 / IP66 Certified Dust & Water Seal Proofing | ||
| Selling Units | Single item in export-grade reinforced logistics crate |
Our heavy-duty perimeter machinery—spanning contactless card reader platforms, rapid swing barrier gates, speed gate lanes, pedestrian control barriers, vehicle detector loop units, and supermarket entrance gate terminals—delivers reliable service under heavy deployment loads across: Commercial Shopping Malls, Corporate Office Buildings, Executive Business Centers, Hotels, Eco Resorts, Exhibition Facilities, Residential Apartment Complexes, Private Villas, and Condominium Estates.
As a premier global contractor and certified original equipment manufacturer, BAROXON provides absolute turnkey manufacturing capabilities for physical security. We specialize in producing heavy-duty vehicle entrance barriers, multi-tier fence systems, and high-performance traffic control barrier systems. Our solutions are explicitly trusted by toll operators, commercial facility managers, and security system integrators worldwide to manage perimeter operations efficiently.
Q1: What adjustable speed configurations does the YH-PDPY601 support for peak transit hours?
A: This operator features an highly adjustable travel profile ranging from ultra-rapid 0.6s / 0.9s for toll lanes up to 1.5s - 6s for long commercial boom configurations, ensuring optimized throughput without stress on mechanical components.
Q2: What styles of perimeter profiling arms can be ordered from your manufacturing facility?

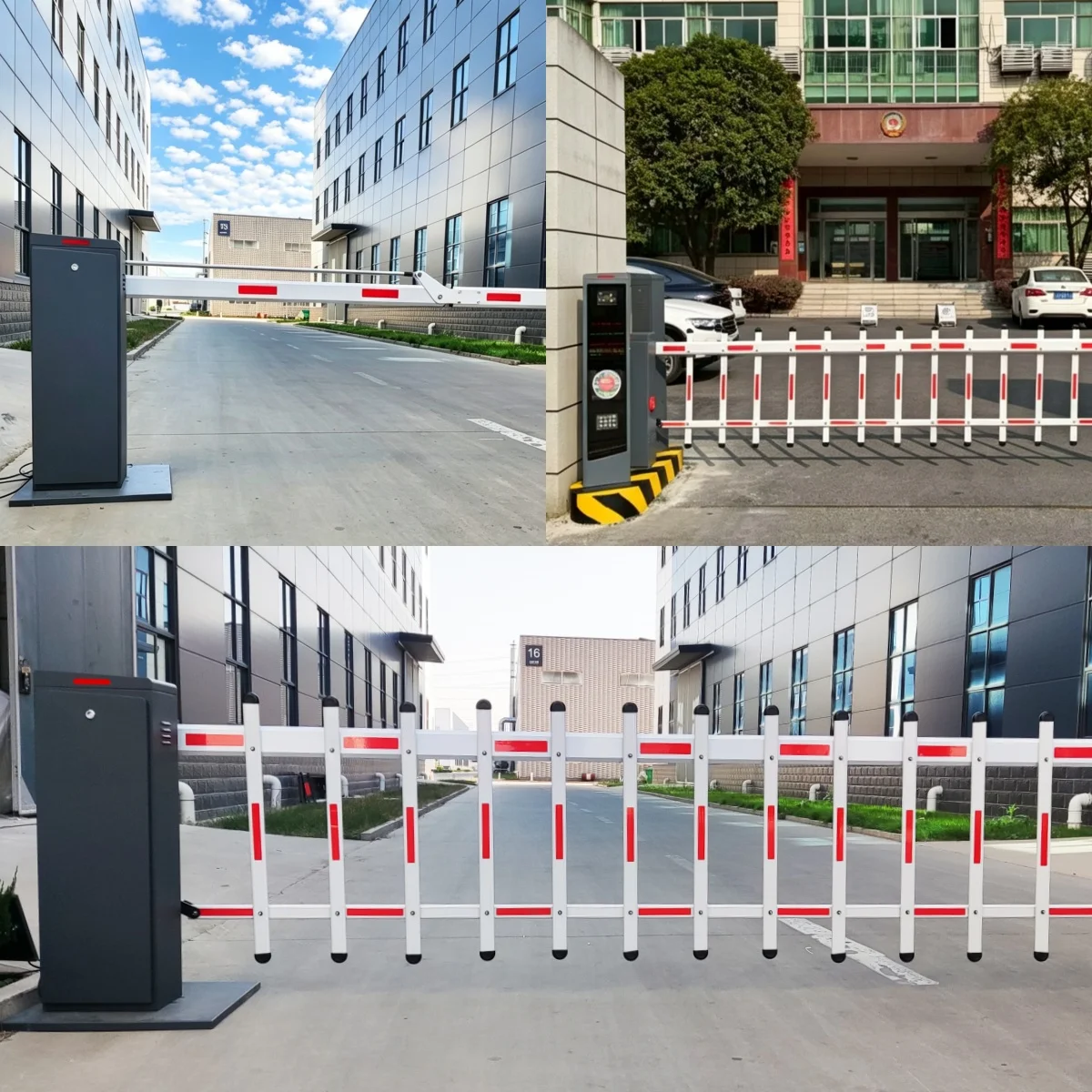

A: We deliver full customizable options including traditional rigid straight profiles (1m - 6m), space-saving folding articulated options (90°/180°) for low-clearance basements, and multi-rail security fence booms to deter unauthorized pedestrian entry.
Q3: How are the safety loops configured to protect vehicles from drop arm contact?
A: The system incorporates a multi-tier protective structure. It supports full integration with advanced vehicle detector loop coils, infrared photoelectric cells, and automated torque sensing that triggers an immediate electronic auto-rebound upon encountering an obstacle.
Q4: Is the housing chassis constructed to endure severe outdoor marine or industrial settings?
A: Yes. The cabinet enclosure is built using heavy 2.0mm cold-rolled steel, pre-treated with a dual-layer rust preventive zinc undercoat, and finished with UV-stable powder coat armor, achieving verified IP54 / IP65 / IP66 ingress ratings.
Q5: What are the continuous operational metrics (MCBF) of the brushless drive core?
A: Our industrial-grade smart boom barrier gate mechanism is engineered with a continuous 100% duty cycle, rated for up to 5000 cycles per day, delivering a field-tested MCBF rating of 3 million, 5 million, or 10 million cycles based on the precise motor configuration chosen.
Contact the BAROXON B2B sales office today for wholesale pricing, formal project specifications, or custom OEM manufacturing options:
B2B Export Mailbox: [email protected]
Engineering WhatsApp Desk: +8613405313100
WeChat Support: +86 18660196023
Automatic Parking Gate Systems | Traffic Control Barrier Equipment | Electric Security Boom Operators | Parking Lot Gate Opener Factory | Drop Arm Barrier Distribution | Commercial Driveway Gate Security
Automatic Parking Gate, Boom Barrier Gate, Traffic Control Barrier, Parking Lot Gate Opener, Commercial Driveway Gate, Electric Security Boom, Drop Arm Barrier, Parking Revenue Control, Access Control Gate, Automatic Boom Arm, Toll Gate Barrier, Vehicle Loop Detector, Anti-Crash Traffic Gate, Remote Control Gate Opener, Vehicle Barrier Systems, Perimeter Security Solutions, RFID Gate Barrier, License Plate Recognition Gate, High Speed Toll Barrier, Heavy Duty Security Gate, 24V DC Brushless Gate Operator, Industrial Access Control, Articulated Folding Arm Gate, Fence Boom Barrier, Parking Management Hardware, Security Gate Manufacturer, Wholesale Gate Openers, Roadway Security Barriers, Entrance Control Systems, Electric Car Park Barrier, Continuous Duty Cycle Barrier, Variable High Speed Toll Operator, Heavy Duty Folding Arm Guard, 2.0mm Cold Rolled Steel Housing, Weatherproof IP66 Access Enclosure, Shandong Automated Entry Factory, Commercial Vehicle Lane Gate, Integrated Circuit Card Control, Contactless Turnstile Barrier, Speed Gates Logistics Terminal, Supermarket Pedestrian Control Gate, Proximity Loop Sensor Detection, Multi-Rail Security Fence Boom, High Frequency Toll Gate Barrier.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. High-capacity parking lot barrier gate with reliable arm swing mechanism. Ideal for toll access points, providing efficient traffic flow management for entrance and exit lanes.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
