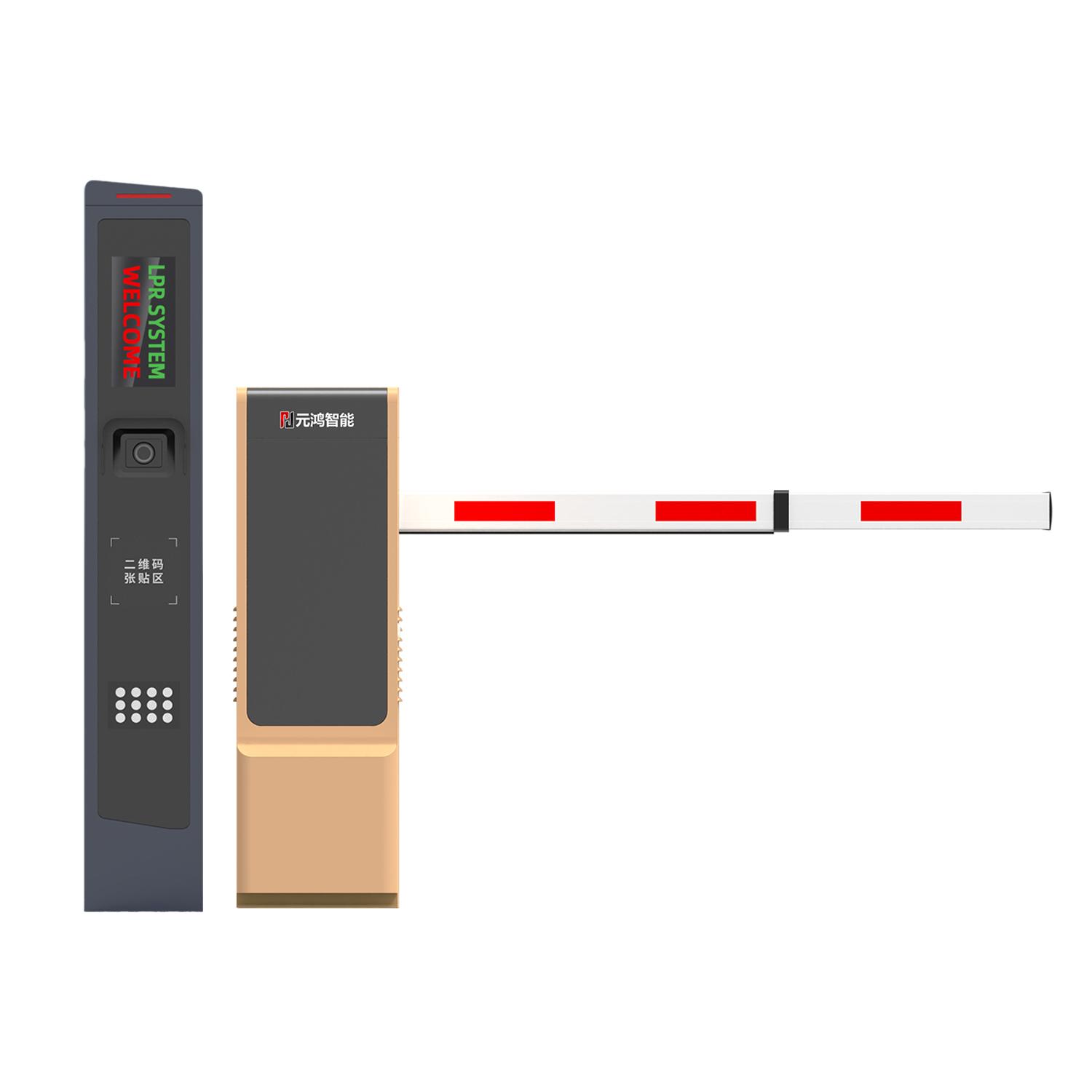

Discover our premium OEM/ODM 99.7% accuracy license plate recognition system integrated with a heavy-duty traffic barrier gate. Designed for modern smart infrastructure, city mobility upgrades, and corporate campus access control.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

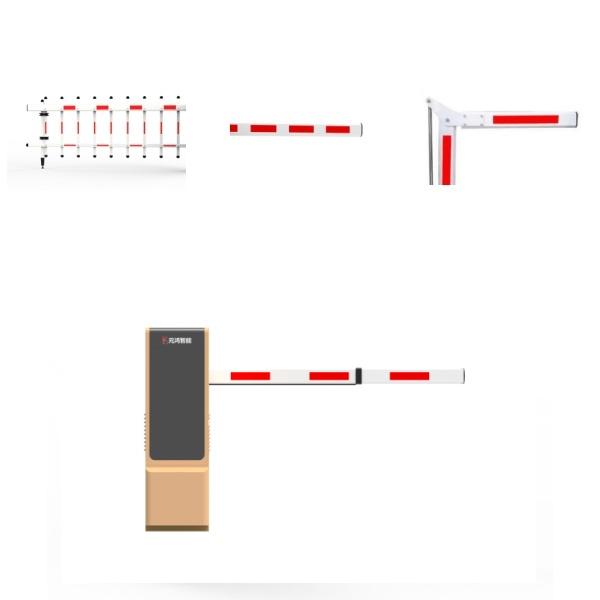

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
User-Friendly Control Interface: Integrated logic motherboard engineered for intuitive configuration, supporting chip card deployment and secure terminal operations.
Modular Electro-Mechanical Layout: Compact integrated design allows for swift field deployment and effortless ongoing servicing of the automated parking gate barrier network.
Vibration-Free Mechanical Structure: Industrial DC brushless motor paired with advanced DC frequency conversion technology ensures highly accurate positioning, smooth dampening, and low-noise driveway entrance gate performance.
Proactive Vehicle Safety Protection: Fully equipped with multi-layered safety mechanisms including anti-collision sensors, immediate auto rebound on blockages, and manual power-off clutch lifting arm execution.
Pedestrian & Vehicle Perimeter Hardware: Compatible with contactless card reader units, heavy-duty swing barrier gate frameworks, security speed gate structures, pedestrian control barriers, magnetic vehicle detector components, parking lot barrier gate 220v brushless dc motor cabinets, and checkout retail supermarket entrance gate options.

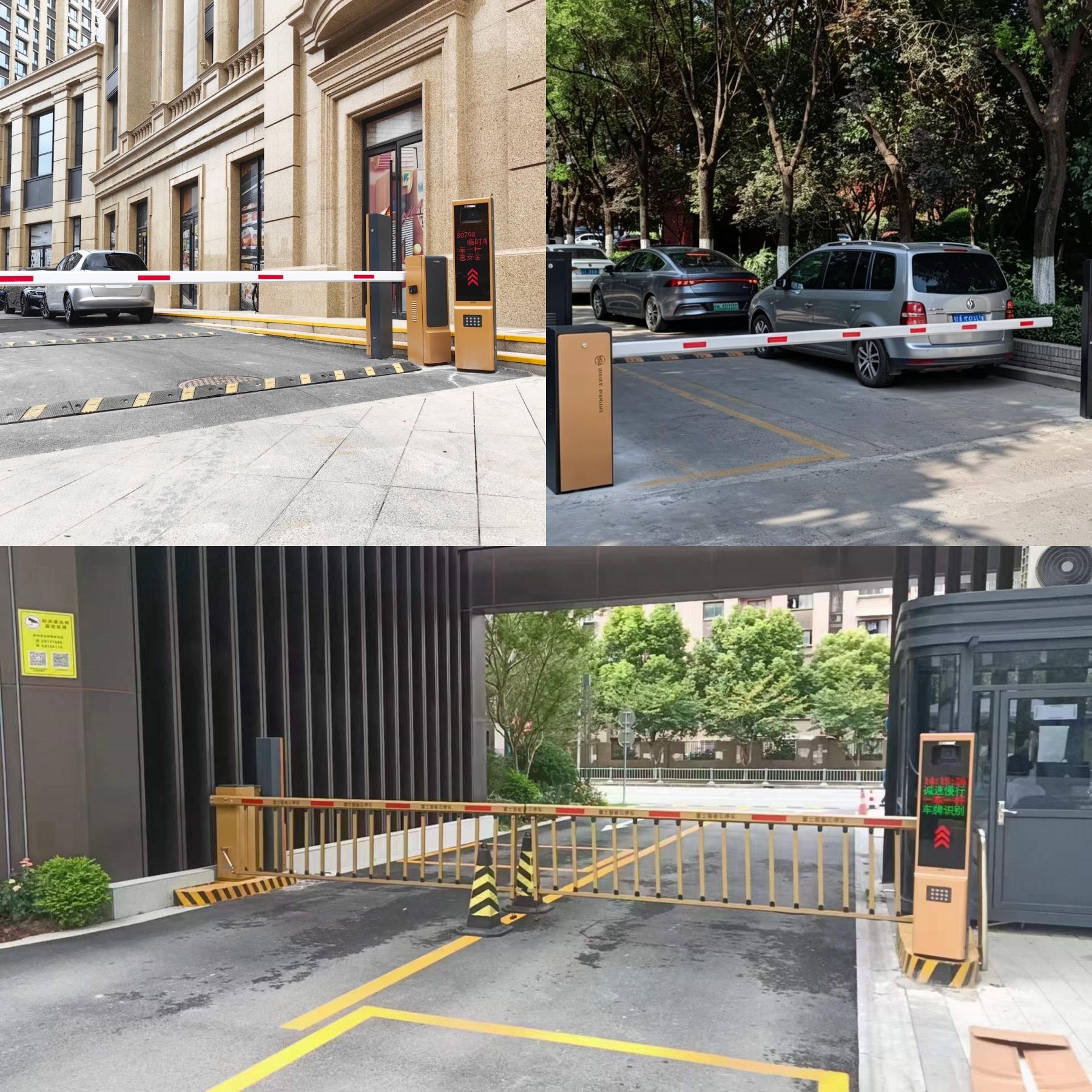

High-Traffic Industrial Usage Scenarios: Perfect for Commercial Shopping Malls, Office Buildings / Business Centers, Hotels & Resorts, Exhibition Centers, Residential Apartment Complexes, Private Villas, Condominiums, Industrial & Logistics Factories / Industrial Parks, Logistics Centers / Warehouses, Port Terminals, Construction Sites, Public Facilities, Airports & Railway Stations, Hospitals & Healthcare Centers, Government Buildings, Universities & Schools, Sports Stadiums / Gyms, and high-frequency Highway Toll Gates.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged commercial parking lot gate mechanism lineup delivers continuous high-frequency operations for system integrators, municipal projects, and real estate developers globally.
Strategic Market Positioning: Expert focus on heavy-duty straight-arm gate operators, multi-tier fence barrier gates, folding arm barriers, and advanced alpr lpr car plate system camera integration protocols.
Global Deployment Footprint: Proudly supplying toll operators, residential estate developers, and commercial contractors across 200+ countries and regions including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering complete perimeter security project site assessments, design blueprints, system hardware installation training, and one-stop dedicated technical consultation.
Convenient Structural Design: Custom-engineered internal tooling and molds facilitate rapid site deployment, quick installation, and worry-free field maintenance.
Technological Innovation Barriers: Possessing an extensive intellectual property portfolio with over 100 core product patents covering DC brushless control boards and barrier safety systems.
Highly Professional Engineering Team: Core technical R&D and production management teams boast over 20 years of in-depth industrial access control manufacturing experience.
Uncompromising Service Commitment: Instant 1-minute initial online customer service response, 2-hour technical issue processing, and rapid 2-day closed-loop resolution management.
Q1: What are the dynamic actuation speeds available for lane security?
A: The core opening and closing speeds range seamlessly from 0.6 to 6 seconds. This parameter is highly adjustable and depends directly on the configured boom arm profile and motor tuning to meet custom facility requirements.
Q2: Does the internal power transformer support multi-voltage inputs and alternative power?
A: Yes, our control motherboard accommodates standard AC 110V/220V power grids natively. For off-grid perimeter security layouts, low-voltage DC configurations can easily link into solar panel installations and backup battery systems.
Q3: What is the maximum boom arm span supported by this operator?
A: Our heavy-duty barrier chassis comfortably supports lightweight aluminum alloy profiles from 1 to 6 meters. We deliver custom-engineered folding arm and fence configurations to accommodate tight height limitations or pedestrian blocking needs.
Q4: Can the control logic panel interface with existing ALPR or access control hardware?
A: Absolutely. The terminal motherboard features direct Wiegand, RS485, and dry-contact inputs, allowing hassle-free plug-and-play connection with modern License Plate Recognition software, RFID card capture systems, and remote vehicle detectors.
Q5: How does the chassis withstand harsh outdoor weather over time?
A: Every barrier cabinet is constructed using 2.0mm high-strength cold-rolled steel coated with UV-resistant, marine-grade powder paint, ensuring durable performance under an IP54, IP65, or IP66 environment ranking.
Q6: What built-in fail-safes are included to protect passing vehicles?
A: The mechanism integrates smart current monitoring for an instant automatic reverse rebound upon obstruction. Additionally, it provides dedicated terminals for active photo-eye sensors, induction safety loops, and a manual mechanical clutch to lift the arm manually during unexpected blackouts.
Q7: What is the certified design life of the brushless motor assembly?
A: Engineered with a precision sinus linkage mechanism and high-grade internal components, the system achieves a Mean Cycles Between Failure (MCBF) of up to 10 million cycles, requiring zero routine powertrain maintenance.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Traffic Barriers | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Parking Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom | Drop Arm Barrier | Parking Revenue Control | Access Control Gate Hardware | Automatic Boom Arm | Toll Gate Barrier System | Vehicle Loop Detector Module | Anti-Crash Traffic Gate Operator | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator Chassis | Industrial Access Control Workshop | Articulated Folding Arm Gate Mechanism | Security Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader | Automatic Swing Barrier Turnstile | Speed Gate Pedestrian Control Barriers | Inductive Vehicle Detector | Parking Lot Barrier Gate 220v Brushless DC Motor Cabinet | Supermarket Entrance Gate System | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Discover our premium OEM/ODM 99.7% accuracy license plate recognition system integrated with a heavy-duty traffic barrier gate. Designed for modern smart infrastructure, city mobility upgrades, and corporate campus access control.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
