Perfect for toll ways and express logistics lanes, our high-speed automatic vehicle access control system utilizes a DC 24V motor and features built-in anti-crash safety rebound mechanisms.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

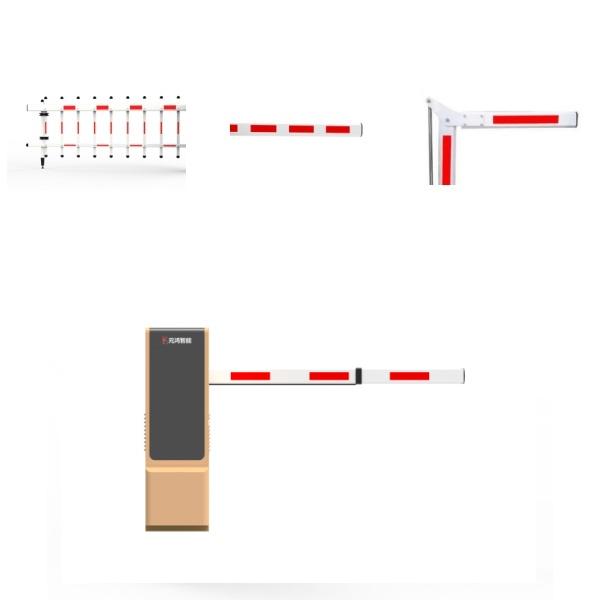

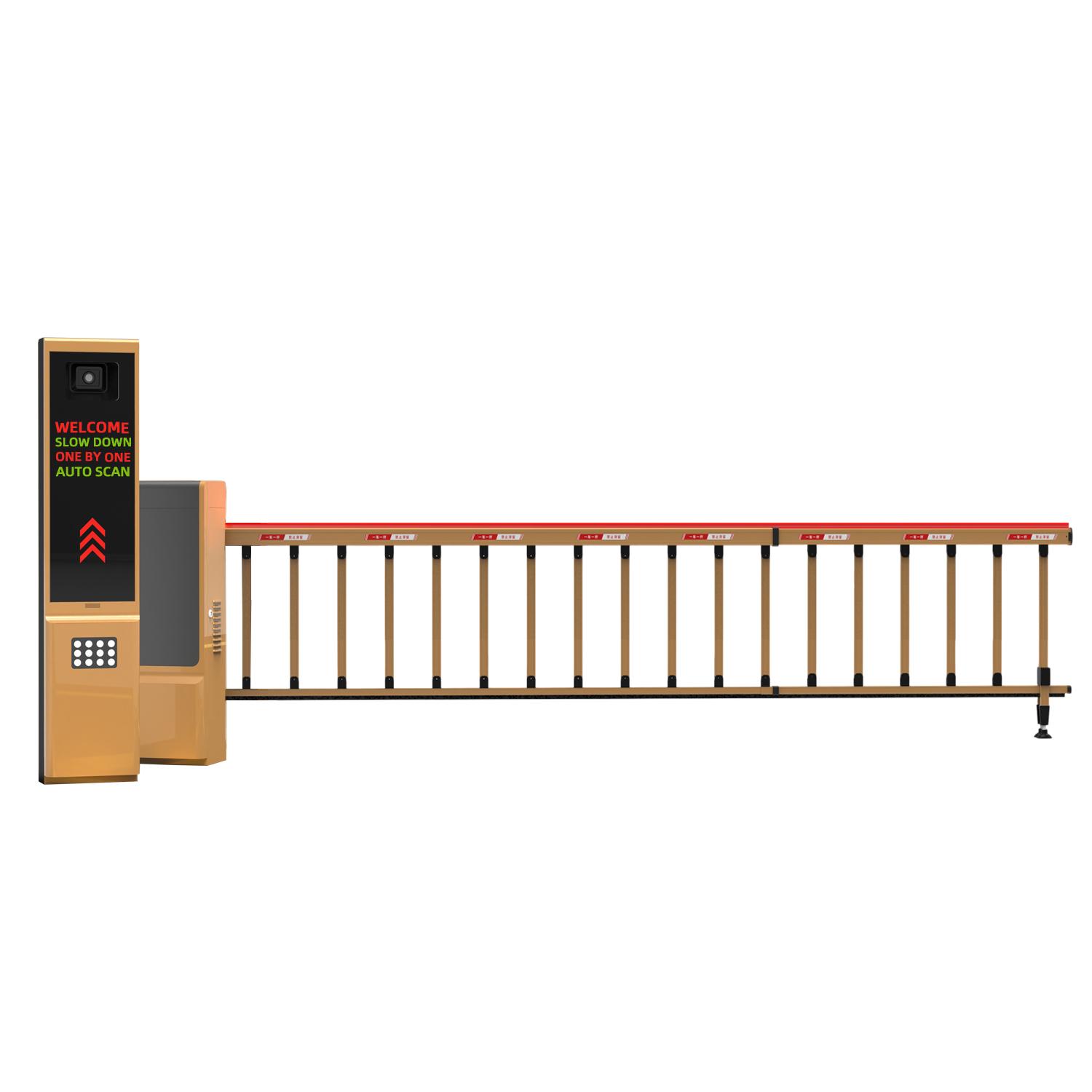

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
Intuitive Microprocessor Logic Board: Featuring a cutting-edge onboard controller for seamless local adjustments, chip card credential enrollment, and straightforward low-voltage electrical terminal setup.
Unified Modular Core Architecture: The streamlined mechanical construction drastically simplifies field installation and cuts maintenance overhead, offering a highly reliable automated parking gate barrier foundation for facility managers.
High-Efficiency Powertrain Performance: Incorporates an industrial-grade DC brushless motor coupled with advanced DC variable frequency conversion hardware to guarantee precision arm travel, optimized damping, and ultra-quiet perimeter gate control.
Comprehensive Physical Safety Layering: Outfitted with proactive crash prevention protocols including real-time auto-rebound upon obstruction, anti-collision monitoring loops, and an ergonomic manual clutch mechanism during complete electrical outages.
Universal Access Control Interfacing: Ready for direct plug-and-play wiring to high-capacity contactless card reader pillars, perimeter turnstiles, rapid swing barrier gate systems, and commercial vehicle detector parking lot barrier gate 220v brushless dc motor supermarket entrance gate infrastructure.

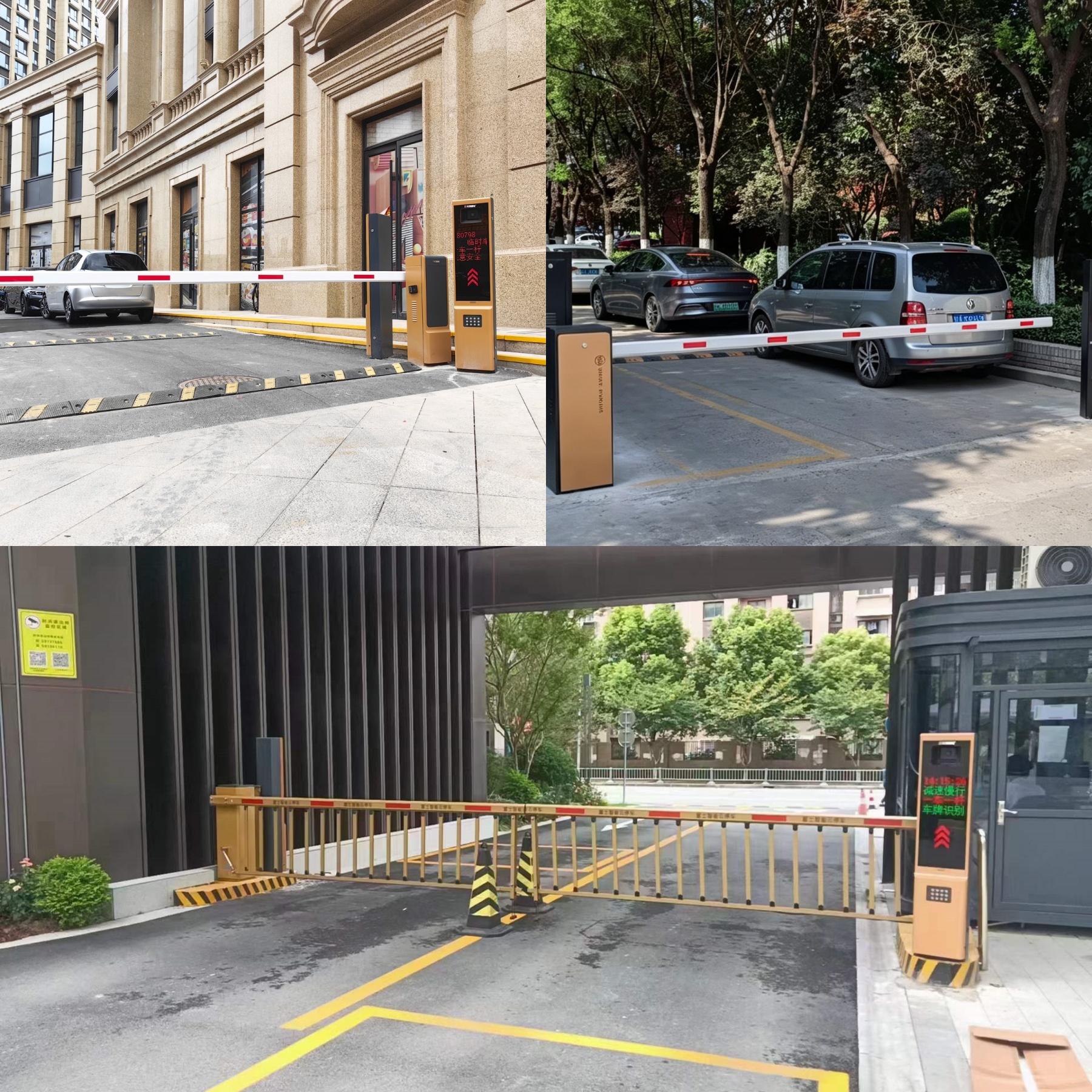

High-Frequency Commercial Scenarios: Engineered to manage relentless peak-hour lane traffic seamlessly across modern shopping malls, office complexes, business centers, upscale hotels, resorts, international exhibition hubs, residential apartment compounds, private villas, and luxury condominiums.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged, heavy-duty commercial parking lot gate mechanism hardware provides ultimate operating reliability for system integrators, public transport operators, municipal authorities, and commercial property developers worldwide.
Strategic Market Positioning: Expert focus on heavy-duty straight-arm gate operators, multi-tier fence barrier gates, folding arm barriers, and advanced alpr lpr car plate system software integration.
Global Deployment Footprint: Proudly supplying toll operators, residential estate developers, and commercial contractors across 200+ countries and regions including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering complete perimeter security project site assessments, design blueprints, system hardware installation training, and one-stop dedicated technical consultation.
Convenient Structural Design: Custom-engineered internal tooling and molds facilitate rapid site deployment, quick installation, and worry-free field maintenance.
Technological Innovation Barriers: Possessing an extensive intellectual property portfolio with over 100 core product patents covering DC brushless control boards and barrier safety systems.
Highly Professional Engineering Team: Core technical R&D and production management teams boast over 20 years of in-depth industrial access control manufacturing experience.
Uncompromising Service Commitment: Instant 1-minute initial online customer service response, 2-hour technical issue processing, and rapid 2-day closed-loop resolution management.
Q1: What opening and closing speeds are achievable with this mechanism?
A: The opening/closing speed is fully adjustable via the motherboard, supporting rapid cycles of 0.6s / 0.9s / 1.5s - 6s (Adjustable). This permits tailored calibration to match your exact boom arm profile and multi-lane speed gate lane velocity requirements.
Q2: Can the power supply terminal support diverse regional infrastructure?
A: Yes, the integrated mainboard accepts native AC 110V or AC 220V power grids. Because the primary drive is an energy-efficient low-voltage DC 24V brushless motor, it can be easily adapted to remote, off-grid locations via solar array setups and battery storage banks.
Q3: What is the maximum boom arm clearance and profile style available?
A: The heavy-duty housing handles interchangeable aluminum arm profiles spanning 1m - 6m (Customizable). Depending on site requirements, you can configure straight profiles, 90°/180° articulated folding arms for low clearance underground parking lots, or high-security two/three-rail fence structures.
Q4: How does the barrier system communicate with external LPR and RFID access layers?
A: The logic controller features comprehensive physical terminals supporting dry-contact relays, RS485 communication protocols, and Wiegand integration. This ensures immediate, seamless interaction with high-speed ANPR/LPR cameras, long-range UHF credentials, proximity card systems, and commercial parking revenue software.
Q5: Is the structural enclosure ruggedized against extreme outdoor climates?
A: Absolutely. Built from a robust 2.0mm cold-rolled steel base chassis and treated with high-grade industrial powder coating, the unit meets strict IP54 / IP65 / IP66 weatherproofing standards, providing flawless long-term outdoor operation under severe rain, frost, or intense heat.
Q6: What integrated safety layers are present to protect vehicles and pedestrians?
A: The powertrain controller features smart current loop monitoring that instantly triggers an auto-rebound upon striking any physical obstacle. It also features standalone terminal integrations for active infrared safety photo-eyes, inductive ground loop detectors, and a manual mechanical override clutch for power outages.
Q7: What is the rated mechanical lifecycle of this vehicle barrier?
A: Engineered with a precision sinusoidal mechanical linkage and premium wear-resistant gears, our powertrains boast a Mean Cycles Between Failure (MCBF) of 3 million / 5 million / 10 million times. The system is certified for a continuous 100% duty cycle, ensuring non-stop high-volume traffic control with minimal routine maintenance.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Parking Gate Barrier | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Parking Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom Operator | Drop Arm Barrier Assembly | Parking Revenue Control Systems | Access Control Gate Hardware | Automatic Boom Arm Operator | Toll Gate Barrier Mechanism | Inductive Vehicle Loop Detector | Anti-Crash Traffic Gate Operator | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator Chassis | Industrial Access Control Workshop | Articulated Folding Arm Gate Mechanism | Security Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader Pillar | Automatic Swing Barrier Turnstile | Speed Gate Pedestrian Control Barriers | Inductive Vehicle Detector | Parking Lot Barrier Gate 220v Brushless DC Motor Cabinet | Supermarket Entrance Gate System | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers | Heavy Duty Electric Vehicle Gate Operator | Commercial Drop Arm Gate Operator | Smart Access Control Driveway Operator | DC Brushless Traffic Control Barrier Gate | Weatherproof Electric Security Boom Barrier | High Volume Automatic Boom Barrier Production | Intelligent Parking Lot Barrier Gates | Motorized Traffic Security Gates | High Speed Automatic Road Barriers | Automated Security Boom Gates | Vehicle Access Damping Systems | Motorized Checkpoint Access Control | Toll Plaza Lane Safety Barriers | Automated Entrance Access Hardware | Heavy Duty Vehicle Access Gates | Remote Key Fob Parking Barrier | Automatic Vehicle Gate Operator | Motorized Access Control Boom Gate | Industrial Driveway Security Barriers | Heavy Duty Security Barrier Arms | Multi Rail Fence Gate Barriers | Intelligent Parking Entrance Gate | Microprocessor Parking Gate Control Board | High Torque Servo Motor Barrier | Fast Execution Toll Way Gate | Continuous Duty Cycle Access Barriers | IP66 Certified Waterproof Barrier Enclosure | Powder Coated Steel Barrier Cabinets | Mechanical Clutch Manual Release Gates | Auto Rebound Parking Barrier Sensors | Long Range Proximity Reader Gates | Automated Parking Gate Integration | Commercial Perimeter Security Barriers | High Lifecycle Access Barrier Motors | Automatic Drop Arm Gate Supplier | Heavy Duty Driveway Security Boom | Vehicle Checkpoint Access Gates | Motorized Roadway Barrier Manufacturer | Automatic Lane Gate Systems | Commercial Grade Boom Arm Gates | High Volume Car Park Barriers | Industrial Checkpoint Security Gates | Motorized Traffic Control Barriers | Automatic Car Park Entrance Barriers | Heavy Duty Motorized Security Gates
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Perfect for toll ways and express logistics lanes, our high-speed automatic vehicle access control system utilizes a DC 24V motor and features built-in anti-crash safety rebound mechanisms.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
