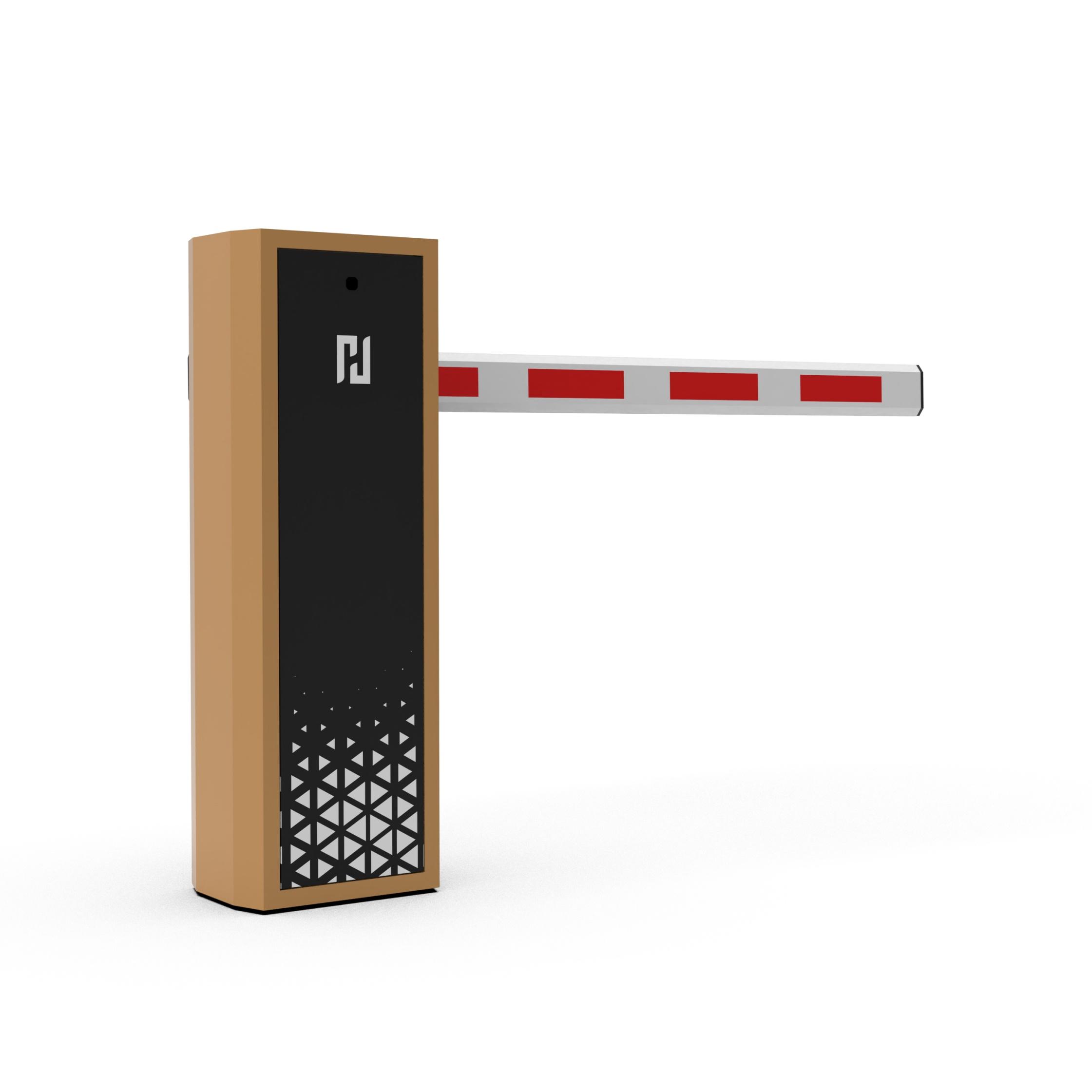

Optimize spatial lane challenges using our multipurpose traffic barrier gate. Supports straight, folding, or fence arm configurations with an integrated high-visibility LED driver guidance display.
| Type | Card, Code, Key, Smartphone, Other | Special Features | Remotely controlled take-off and landing. OEM&ODM |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor |
| Motor Power | 110/220VAC +10% | Motor Drive | 24V DC brushless motor |
| Operating Speed | 3S-6S | Maximum Rod Length | ≤4 meters |
| Chassis Dimensions | 1015*320*225 MM | Remote Control Distance | ≤30m |
| Operating Temperature | -30℃~80℃ | Waterproof Rating | IP55 |
| Selling Units | Single item | Package Size | 110.5X43.5X40.5 cm |
| Gross Weight | 48.000 kg |
Baroxon high-performance access control systems provide a user-friendly interface with an integrated motherboard for efficient site management.
Our automatic boom barrier gate features a modular, integrated design, ensuring streamlined installation and simplified maintenance for property managers.
Utilizing premium DC brushless motor technology and frequency conversion, we guarantee smooth, low-noise, and highly accurate operation.
Enhanced safety is built-in, featuring intelligent anti-collision detection, automatic rebound, and power-off lifting for our high-security vehicle access gates.

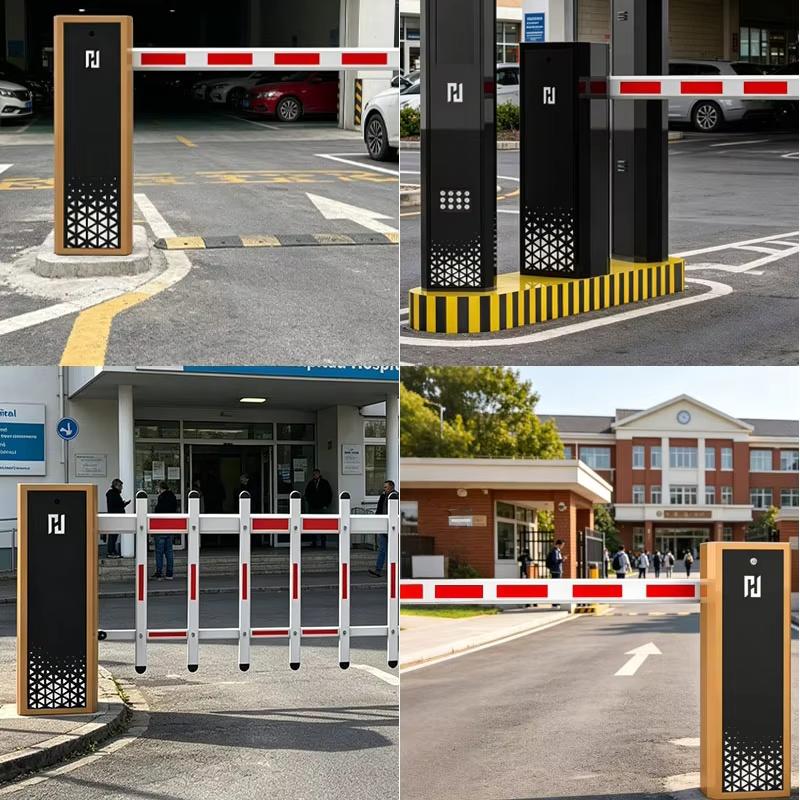

Usage Scenarios: Commercial Shopping Malls, Business Centers, Hotels & Resorts, Exhibition Centers, Residential Apartment Complexes, Condominiums, Industrial Parks, Logistics Warehouses, Port Terminals, Construction Sites, Airports, Hospitals, Government Buildings, Universities, Sports Stadiums, and Highway Toll Gates.
As a global premier supplier in the perimeter security and access control industry, Baroxon offers full turnkey engineering and manufacturing for vehicle access, corporate security, and intelligent parking solutions.
Q1: What are the variable speed configurations?
A: Our systems offer 0.8s to 6s operating speeds, optimized for diverse traffic flow and highway toll plaza requirements.
Q2: Can the gate systems integrate with LPR/RFID software?
A: Yes, Baroxon boards offer universal compatibility with LPR (License Plate Recognition), long-range UHF, RFID, and automated ticketing.
Q3: Are the units rated for extreme outdoor exposure?
A: Absolutely. Units carry IP55/IP66 ratings with UV-resistant powder coating for long-term climate durability.
Q4: What is the expected mechanical lifespan?
A: Engineered for 5 million+ operational cycles, ensuring years of stable performance with minimal maintenance.
Q5: Do you offer custom arm designs?

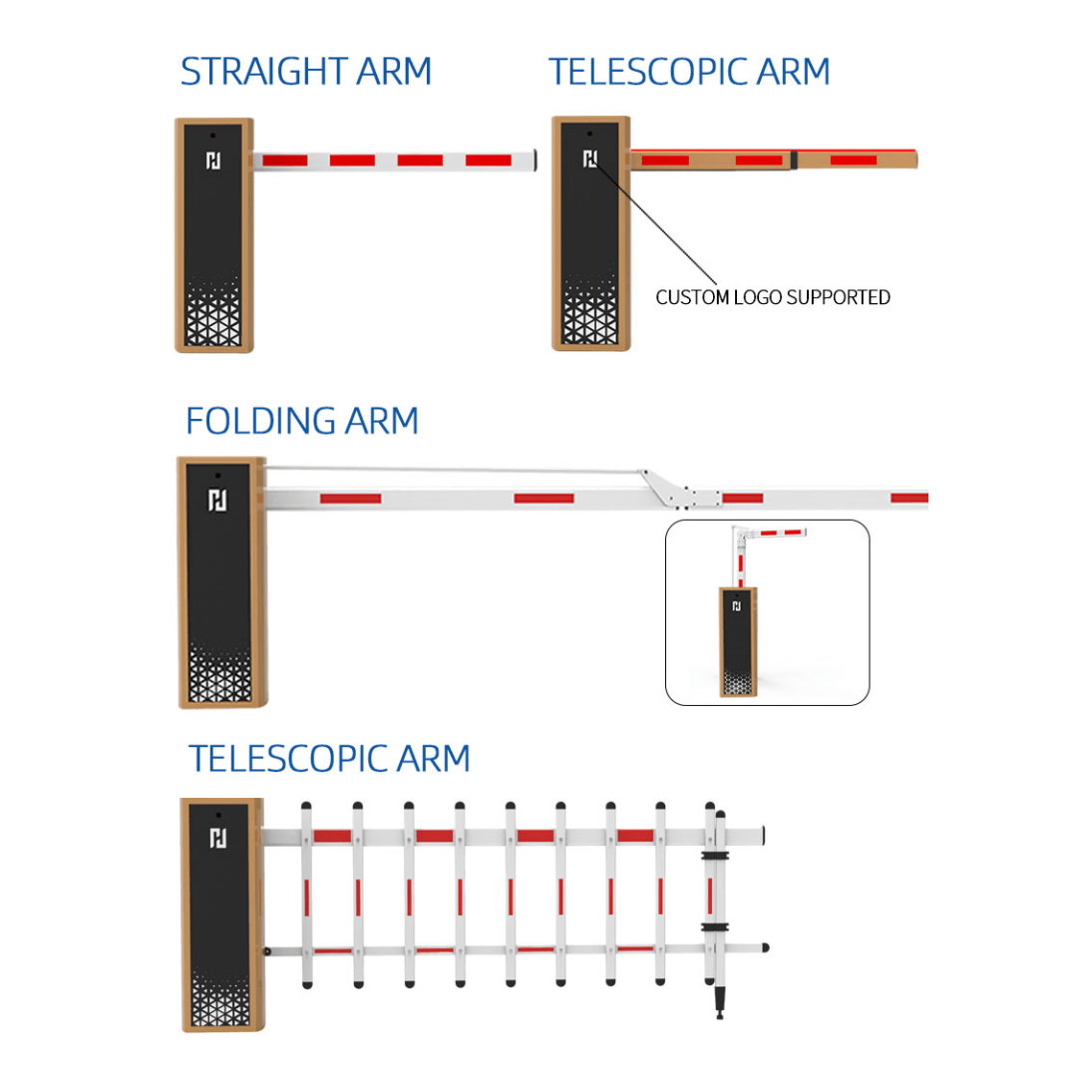

A: Yes, we provide straight, articulated folding arms, fence-style arms, and LED-illuminated advertising barriers.
Contact Baroxon today for wholesale quotes, project tenders, and custom manufacturing needs:
E-mail: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Automatic Parking Gate | Boom Barrier Gate | Parking Revenue Control | Industrial Access Control | Electric Security Boom | Commercial Property Entrance | Vehicle Loop Detection | High-Security Barrier | Traffic Management Hardware | Perimeter Defense Solutions | Gated Community Gate | Automated Traffic Control | Toll Plaza Infrastructure | Smart Parking Manufacturer | 24V Brushless Gate Operator | Articulated Folding Arm Gate | Heavy Duty Security Gate | Wholesale Gate Openers | Roadway Safety Barriers | Entrance Automation Systems | Car Park Access Control | Secure Driveway Barriers | Intelligent Security Gates | Managed Parking Solutions | Vehicle Access Management | Perimeter Access Control | Security Bollards | Gated Entry Systems | Vehicle Access Solutions | Commercial Gate Operator | Parking Lot Management System | Automated Vehicle Entry | Traffic Enforcement Barrier | Entrance Security Technology | Automatic Gate System | Secure Entry Hardware | Commercial Access Control | Boom Arm Barrier | Smart Traffic Management | Vehicle Detection Barrier
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Optimize spatial lane challenges using our multipurpose traffic barrier gate. Supports straight, folding, or fence arm configurations with an integrated high-visibility LED driver guidance display.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
