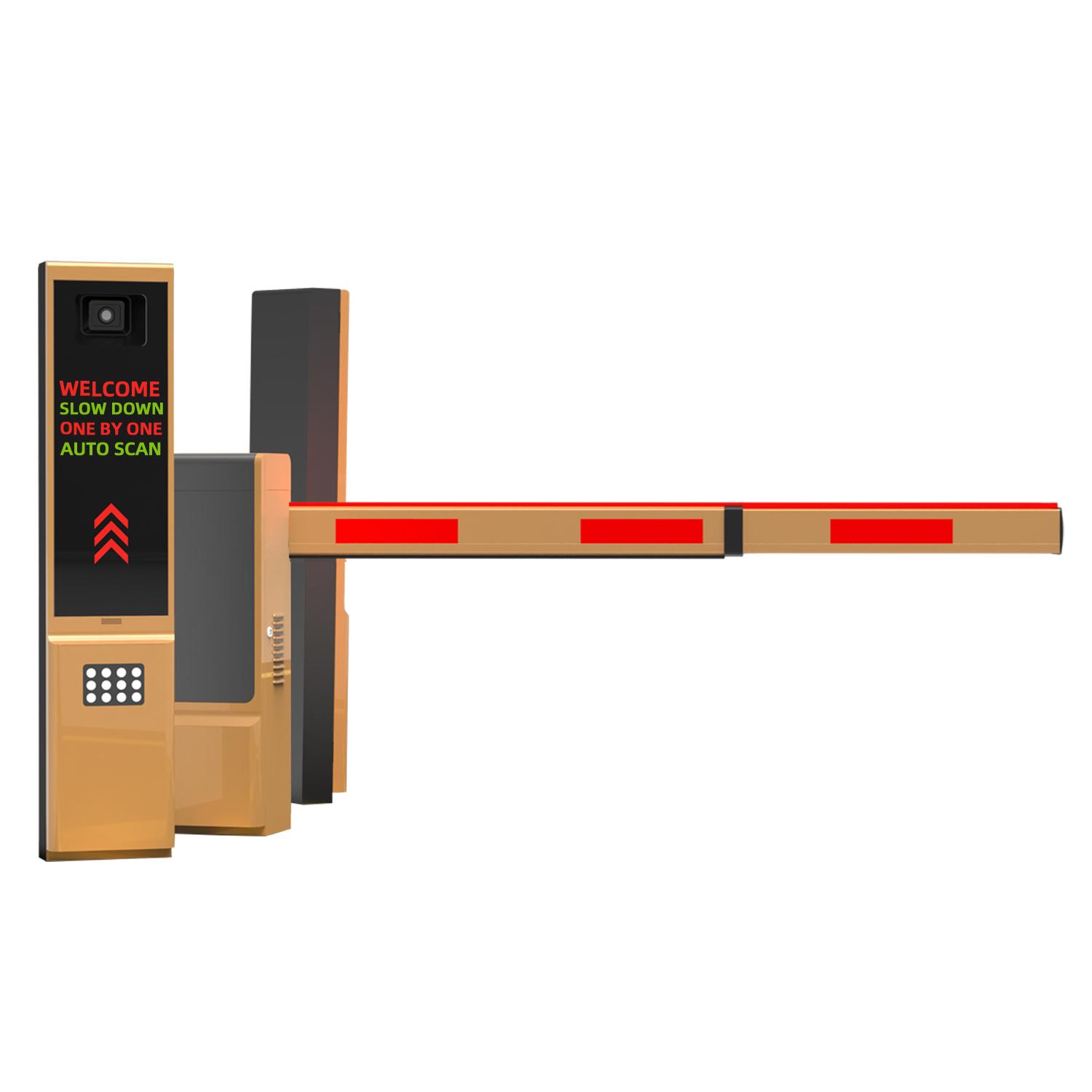

Discover the ultimate reliability of our next-gen brushless motor access barrier kit. Features ultra-quiet multi-station operation parameters for demanding commercial logistics centers.
| Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance | Place of Origin | Shandong, China |
| Material | Cold rolled steel, Stainless Steel, Zinc Alloy | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Storage | Cloud, Memory Card |
| Type | Card, Code, Key, Smartphone, UHF | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
Baroxon provides a user-friendly intelligent access control interface with an integrated motherboard for reliable, high-speed chip card operation.
Our modular automatic boom barrier gate features an integrated design for simplified field installation and minimal long-term maintenance.
Utilizing high-torque DC brushless motor technology and frequency conversion, our gate operators ensure smooth, whisper-quiet performance in any high-traffic facility.
Intelligent security features include anti-collision monitoring, auto-rebound logic, and fail-safe power-off release, making it perfect for integration with advanced LPR parking management software.
As a premier supplier in the perimeter security industry, Baroxon specializes in turnkey engineering and manufacturing of professional vehicle access control solutions for global infrastructure.
Q1: What are the speed configurations for the gates?
A: Standard operation ranges from 0.8s to 6s, adaptable for high-traffic tolling and residential security.
Q2: Can the gates operate on solar power?
A: Yes, we provide specialized low-voltage DC solutions for remote, off-grid applications.
Q3: What is the maximum boom arm reach?
A: Standard support for 3m to 6m, with full custom-tailored lengths for specific project dimensions.
Q4: Do these systems integrate with LPR/RFID?
A: Yes, our controllers offer universal compatibility with LPR, long-range UHF, and QR ticketing systems.
Q5: Are these suitable for outdoor environments?
A: Absolutely, units are IP55 rated with UV-resistant coatings for durability in extreme climates.
Q6: What safety protections are built-in?
A: Standard safety includes auto-reverse logic, loop detector support, photo-eye integration, and manual emergency release.
Q7: What is the maintenance cycle?
A: Engineered for 5 million+ operations, ensuring long-term stable performance with minimal maintenance.
Contact Baroxon for tenders and wholesale: Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Automatic Parking Gate | Boom Barrier Gate | Parking Revenue Control | Industrial Access Control | Electric Boom Barrier | Commercial Property Entrance | Vehicle Loop Detection | High-Security Barrier | Traffic Management Hardware | Perimeter Defense Solutions | Gated Community Gate | Automated Traffic Control | Toll Plaza Infrastructure | Smart Parking Manufacturer | 24V Brushless Gate Operator | Articulated Folding Arm Gate | Heavy Duty Security Gate | Wholesale Gate Openers | Roadway Safety Barriers | Entrance Automation Systems | Car Park Access Control | Secure Driveway Barriers | Intelligent Security Gates | Managed Parking Solutions | Vehicle Access Management
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Discover the ultimate reliability of our next-gen brushless motor access barrier kit. Features ultra-quiet multi-station operation parameters for demanding commercial logistics centers.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
