High-stability LPR parking gate featuring servo algorithm control and an integrated LCD display for efficient vehicle monitoring and automated access compliance.
The Baroxon YH-PDPY601 is designed for high-performance vehicle access control, offering robust security and reliability for commercial and industrial perimeter management.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
Engineered for excellence, our automatic traffic barrier gate systems provide a user-friendly interface with an integrated motherboard for streamlined operation. The system utilizes DC brushless motor technology and frequency conversion for smooth, low-noise performance.
With intelligent safety features including anti-collision logic, auto-rebound, and manual power-off lifting, this smart boom barrier gate operator ensures maximum safety for pedestrians and vehicles in high-traffic environments.
Baroxon provides turnkey engineering and manufacturing for vehicle access control, focusing on high-frequency commercial and industrial security deployments globally.
Q: What is the typical operational speed?
A: Standard opening and closing speeds range from 0.6s to 6s, fully adjustable to suit specific traffic throughput needs at tolling stations or parking lots.
Q: Is this system compatible with third-party LPR/RFID software?
A: Yes, our controllers support seamless integration with license plate recognition, RFID, and facial recognition access systems.
Q: How durable is the housing for outdoor environments?
A: Built with 2.0mm cold-rolled steel and IP66-rated protection, our units are designed for harsh outdoor conditions in North American and European climates.
Q: What safety protocols are embedded in the unit?
A: Every gate includes anti-collision sensors, auto-reverse mechanisms, and manual override capabilities to prevent damage and ensure site security during power failure.
Contact Baroxon for wholesale pricing and customized perimeter security projects:
E-mail: [email protected] | WhatsApp: +8613405313100
Parking Barrier Systems | Automatic Boom Gates | Vehicle Access Control | Traffic Management Equipment | Commercial Parking Lot Solutions | Heavy Duty Security Barriers | Electric Driveway Gates | Toll Lane Gate Operators | Industrial Perimeter Security | RFID Gate Integration | LPR Parking Systems | Automatic Gate Manufacturer | High Speed Traffic Barriers | Weatherproof Security Enclosures | Secure Entrance Solutions
Automated vehicle transit, High-cycle boom arms, Smart city parking infrastructure, Municipal road security, Commercial property access management, Heavy-duty gate actuators, Custom-length barrier solutions, DC brushless motor technology, Weatherproof security bollards, Industrial logistics entry, Proximity sensor loops, Multi-rail fence barriers, High-frequency tolling gates, Secure facility perimeters, Automated driveway gate installation, Gated community entrance solutions, Public parking facility hardware, Smart building access controllers, Logistics park perimeter defense, Industrial site gate automation, Intelligent traffic monitoring systems, Secure multi-user access points.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. High-stability LPR parking gate featuring servo algorithm control and an integrated LCD display for efficient vehicle monitoring and automated access compliance.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.

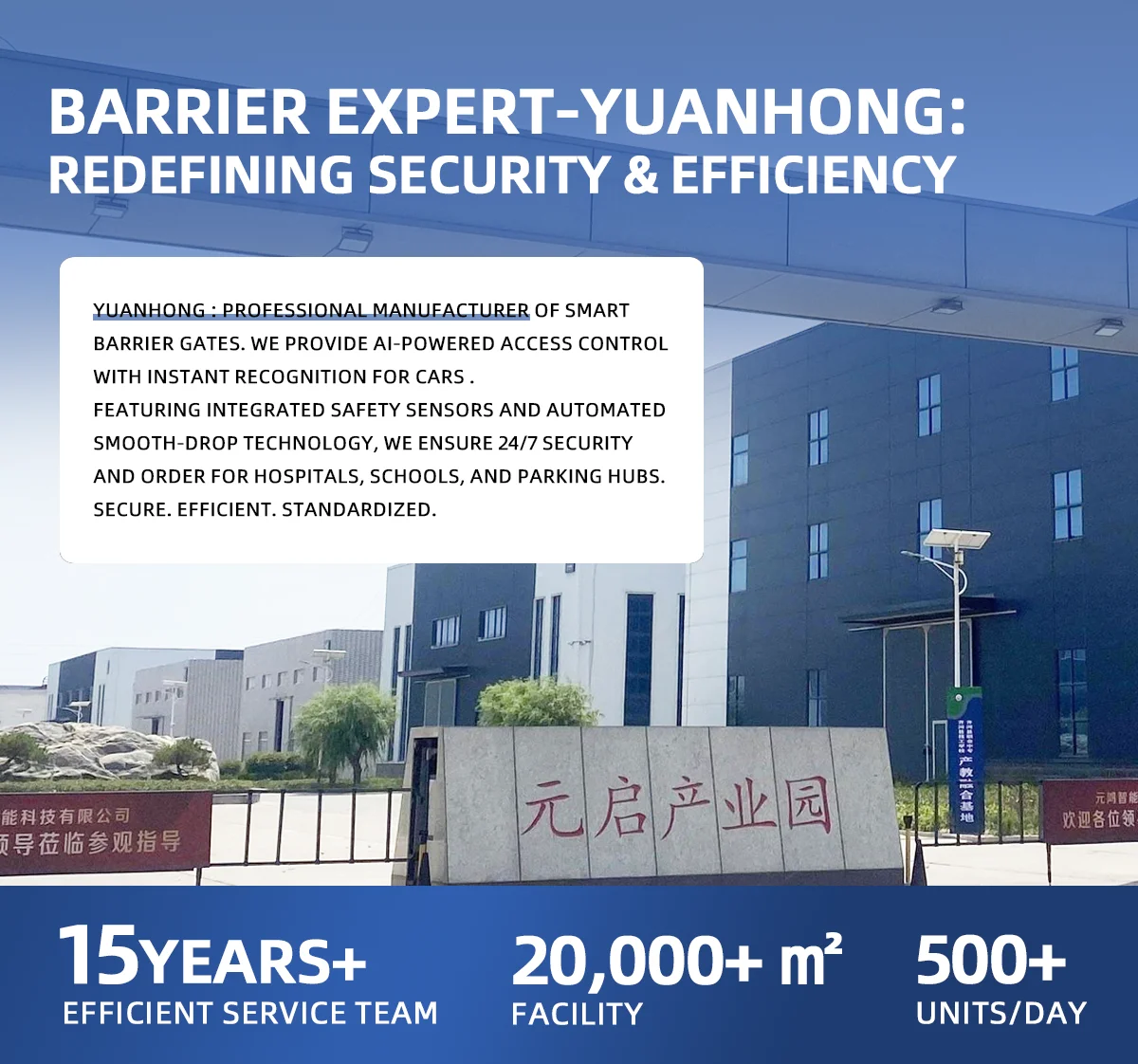

We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
