Optimize facility entry with our smart LPR-powered parking gate. Designed for seamless automated vehicle access control, it integrates perfectly into modern parking management ecosystems.
Optimizing commercial vehicle lanes requires rugged, high-frequency security systems. The professional YH-0DZ1920PRO Intelligent Driveway Barrier, developed by Baroxon Perimeter Security Systems, is specifically engineered to manage heavy-duty vehicle access. Built for demanding settings like distribution hubs, industrial parks, freight terminals, and high-volume parking complexes, this system combines robust physical durability with smooth digital torque delivery to establish total perimeter lane authority.
| Type | Card. Code. Key. Smartphone. Other Smart Access Credentials | Special Features | Remotely controlled take-off and landing. OEM&ODM Solutions |
| Storage Layout | Cloud. Memory Card Integration | Material Build | Cold rolled steel. Stainless Steel. Zinc Alloy Structure |
| Place of Origin | Shandong. China | Model Number | YH-0DZ1920PRO |
| Brand Name | Baroxon | Input Power | DC 24V Brushless / AC 110V / Servo Motor Compabilities |
| Motor Power | 110/220VAC +10% High-Tolerance Transformer | Motor Drive | 24V DC brushless motor core mechanism |
| Operating Speed | 3S-6S Adjustable Travel Timing | Maximum Rod Length | ≤4 meters Rigid Profile Arm |
| Chassis Dimensions | 1015*320*225 MM Heavy Housing | Remote Control Distance | ≤30m Wireless Transmitter Range |
| Operating Temperature | -30℃~80℃ Industrial Environmental Range | Waterproof Rating | IP55 Field Dust & Moisture Protection |
| Selling Units | Single item export reinforced wooden crate packing |

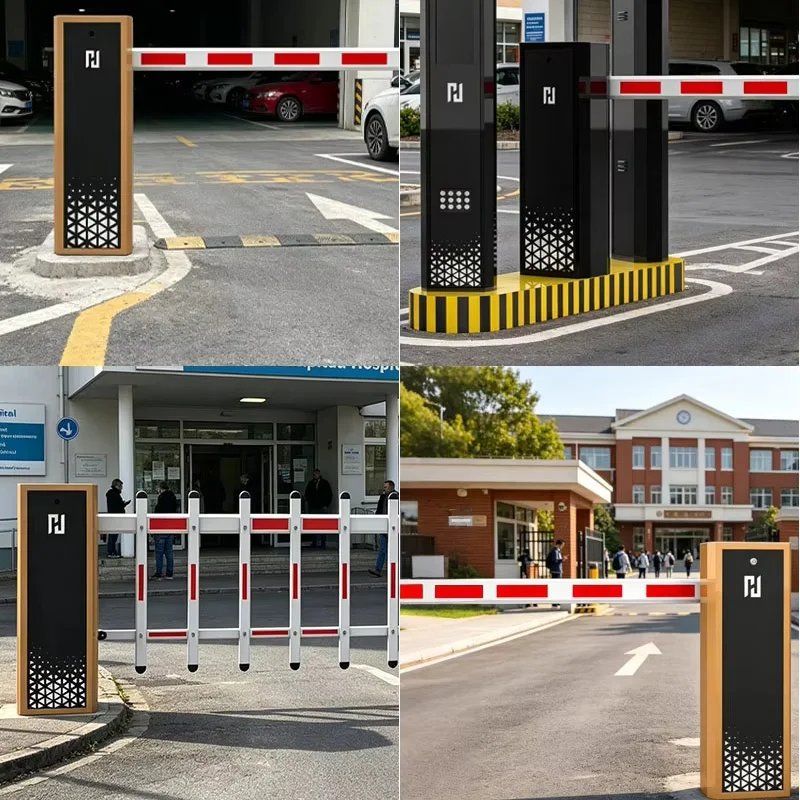

Our elite roadway barriers, alongside heavy pedestrian control barriers and supermarket entrance gate setups, deliver long-term access management across multiple fast-paced sectors: Commercial Malls, Business Centers, Hotels & Resorts, Exhibition Centers, Apartment Complexes, Private Estates, Condominiums, Manufacturing Plants, Logistics Centers, Freight Warehouses, Port Terminals, Construction Sites, Regional Airports, Train Stations, Hospitals, Government Facilities, University Campuses, Sports Stadiums, and Highway Toll Gates.
As an internationally certified manufacturer and direct B2B contractor, BAROXON builds elite entrance security systems. We specialize in supplying commercial distribution centers, toll companies, and security integrators with heavy-duty traffic control barrier systems, automatic drop arm barriers, vehicle loop detectors, and advanced entryways designed to withstand severe environments.
Q1: What is the travel speed window for the YH-0DZ1920PRO system?
A: This system provides an adjustable operating speed range of 3S-6S. It allows installers to fine-tune the timing parameters precisely to match the exact profile length of the barrier arm and vehicle traffic density.
Q2: Can this driveway gate structure work with existing localized building access management panels?
A: Yes. The onboard control motherboard features universal dry-contact terminal blocks that interface seamlessly with external hardware, including RFID proximity readers, QR code scanners, long-range UHF credentials, and ANPR/LPR cameras.
Q3: What is the maximum pole length supported by this motor assembly?
A: The YH-0DZ1920PRO motor drive core handles a maximum rigid rod length of ≤4 meters. If your location requires wider clearance covers, our technical department can customize balanced multi-tier configurations.
Q4: How does the system respond to unexpected power grid disruptions?
A: The barrier is designed with an easily accessible manual mechanical clutch release. In a power outage, operators can disengage the gear train with a safety key to manually lift the arm and clear the lane.
Q5: Is this system rated to withstand harsh winter conditions or coastal moisture?
A: Yes. Built with a tough cold-rolled steel cabinet and robust powder coating, the unit carries a certified IP55 waterproof and dustproof rating, ensuring stable operation within a broad temperature range of -30℃ to 80℃.
Q6: How reliable is the motor drive configuration under high-frequency operation?
A: Equipped with a premium 24V DC brushless motor core and dynamic frequency conversion loops, our smart boom barrier gate guarantees smooth acceleration and deceleration curves, reducing physical gear wear to provide a lifecycle of over 5 million operation cycles.
Reach out to the BAROXON B2B sales office today to obtain commercial distributor prices, detailed data sheets, or request tailored OEM/ODM modifications:
B2B Export Mailbox: [email protected]
Engineering WhatsApp Desk: +8613405313100
WeChat Connectivity: +86 18660196023
Automatic Parking Gate Equipment | Traffic Control Barrier Manufacturers | Electric Security Boom Systems | Parking Lot Gate Opener Supplier | Drop Arm Barrier Wholesale | Commercial Driveway Gate Systems
Automatic Parking Gate, Boom Barrier Gate, Traffic Control Barrier, Parking Lot Gate Opener, Commercial Driveway Gate, Electric Security Boom, Drop Arm Barrier, Parking Revenue Control, Access Control Gate, Automatic Boom Arm, Toll Gate Barrier, Vehicle Loop Detector, Anti-Crash Traffic Gate, Remote Control Gate Opener, Vehicle Barrier Systems, Perimeter Security Solutions, RFID Gate Barrier, License Plate Recognition Gate, High Speed Toll Barrier, Heavy Duty Security Gate, 24V DC Brushless Gate Operator, Industrial Access Control, Articulated Folding Arm Gate, Fence Boom Barrier, Parking Management Hardware, Security Gate Manufacturer, Wholesale Gate Openers, Roadway Security Barriers, Entrance Control Systems, Electric Car Park Barrier, Variable Frequency Driveway Gate Operator, Heavy Duty Lane Control Barrier, Weatherproof IP55 Gate Housing, Remotely Controlled Take-Off and Landing, Shandong Access Control Production Plant, B2B Security Barrier Tenders, Rigid Aluminum Barrier Arm, Integrated Logic Motherboard Core, Contactless Card Reader Checkpoints, Swing Barrier Gates, Speed Gate Operators, Pedestrian Control Barriers, Supermarket Entrance Gate Systems, Vehicle Detector Loop Sensors, Automated Lane Enforcement Guard, Chip Card Credentials.
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Optimize facility entry with our smart LPR-powered parking gate. Designed for seamless automated vehicle access control, it integrates perfectly into modern parking management ecosystems.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
