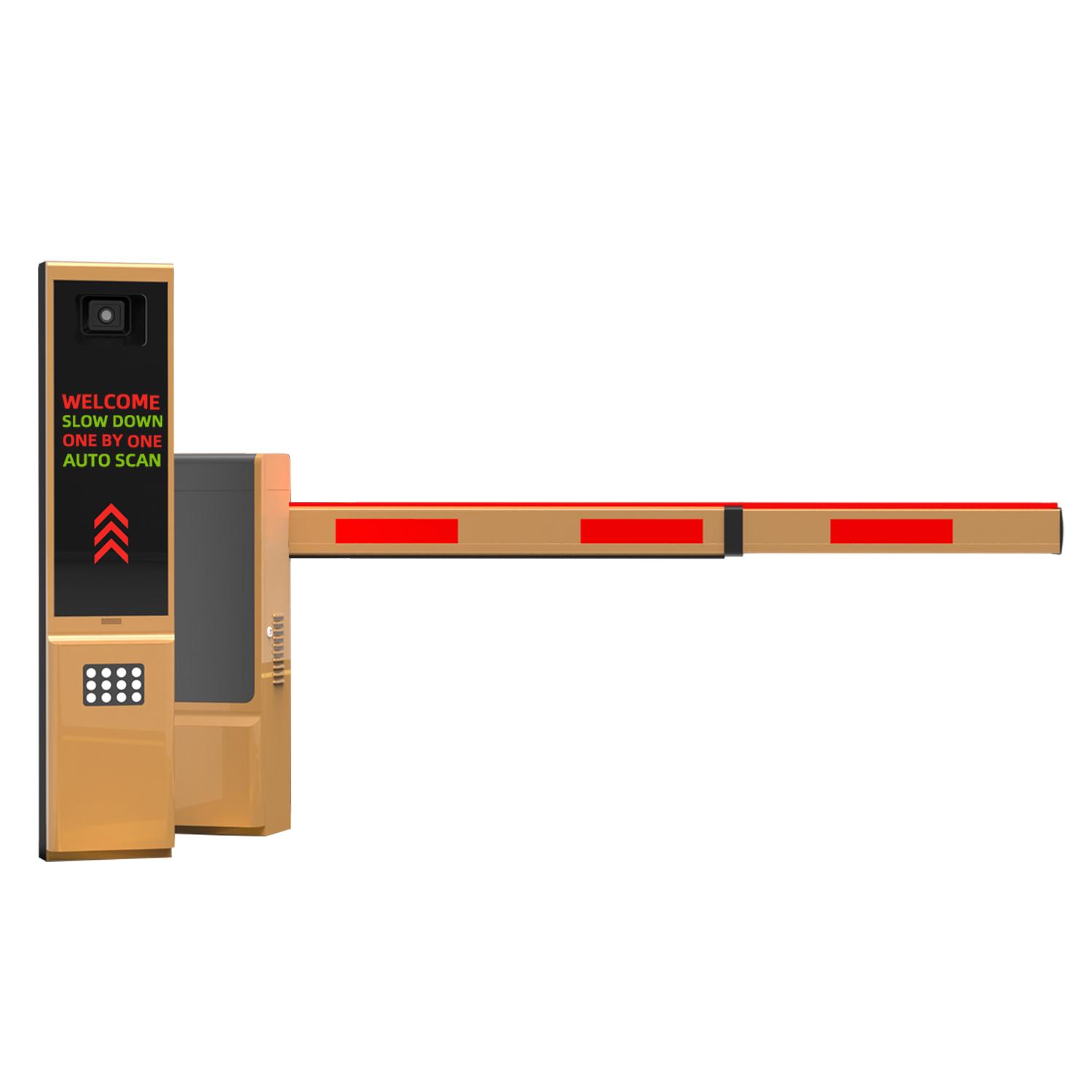

Upgrade to modern cloud facility auditing with our wholesale ticketless LPR parking lot system, configured with paper ticket kiosk backups and an automatic straight bar barrier.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
Operator-Centric Microprocessor Layout: Engineered with an optimized mainboard logic system supporting rapid terminal lane setup, local encrypted badge card tokens, and variable parameter adjustments tailored for high-volume traffic checkpoints.
Modular Enclosure Engineering: Features a streamlined standalone architecture to allow quick driveway installation and easy maintenance, providing a highly reliable automated parking gate barrier network built for demanding multi-lane operations.
Heavy-Duty Mechanical Drive System: Employs an industrial grade DC brushless motor paired with advanced frequency conversion controllers to provide precise boom arm deceleration, highly smooth travel arcs, and low acoustic output at any perimeter access checkpoint.
Intelligent Proactive Vehicle Safety: Equipped with active protection measures including electronic auto-rebound obstruction tracking, break-away boom arm connectors, and an ergonomic power-off mechanical clutch layout compatible with proximity card reader swing barrier gate terminals.
Universal Transit Access Interfacing: Integrates smoothly with security speed gates, pedestrian control barriers, inductive loop systems, and access credentials via our standardized vehicle detector parking lot barrier gate 220v brushless dc motor configuration for supermarket entrance gate systems and complex transit stations.
Versatile Scenario Adaptability: Ideally configured for corporate office complexes, commercial centers, resorts, residential master communities, and private villas. It also delivers absolute perimeter integrity across heavy-duty industrial parks, distribution logistics centers, cargo port terminals, construction checkpoints, transport infrastructure hubs (airports and railway stations), medical hospital driveways, university campus perimeters, stadium parking access, and express highway toll plazas.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged, heavy-duty commercial parking lot gate mechanism lineups offer unmatched reliability for toll operators, commercial facility managers, and high-security installations worldwide.
Strategic Market Positioning: Expert focus on heavy-duty straight-arm gate operators, multi-tier fence barrier gates, folding arm barriers, and advanced alpr lpr car plate system software integration.
Global Deployment Footprint: Proudly supplying toll operators, residential estate developers, and commercial contractors across 200+ countries and regions including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering complete perimeter security project site assessments, design blueprints, system hardware installation training, and one-stop dedicated technical consultation.
Convenient Structural Design: Custom-engineered internal tooling and molds facilitate rapid site deployment, quick installation, and worry-free field maintenance.
Technological Innovation Barriers: Possessing an extensive intellectual property portfolio with over 100 core product patents covering DC brushless control boards and barrier safety systems.
Highly Professional Engineering Team: Core technical R&D and production management teams boast over 20 years of in-depth industrial access control manufacturing experience.
Uncompromising Service Commitment: Instant 1-minute initial online customer service response, 2-hour technical issue processing, and rapid 2-day closed-loop resolution management.
Q1: What is the opening and closing speed of the barrier gate?
A: The standard velocity profile covers 0.6s / 0.9s / 1.5s - 6s (Adjustable), heavily dependent on your specific boom arm length and core motor configurations. High-speed adjustments are ideal for rapid vehicle processing in toll plaza or logistics hub lanes.
Q2: What power supply options does the barrier gate system support?
A: The system natively handles AC 110V or AC 220V standard terminal line power inputs. Because it relies internally on a robust DC 24V brushless motor drive, it easily connects with solar array inputs and battery bank reserves for remote, off-grid deployments.
Q3: What is the maximum boom arm length supported by this chassis?
A: Our heavy duty barriers accommodate customizable boom profiles ranging from 1m - 6m (Customizable). Depending on project specifications, we supply straight aluminum beams, articulated folding bars for low clearances, or high-security multi-rail fence configurations.
Q4: Can the system be paired with external tolling and security hardware?
A: Yes. The onboard control microprocessor provides standardized relay dry contacts and communication ports for seamless interfacing with automated plate capturing nodes, long-range UHF proximity readers, RFID badge credentials, and standard loop tracking layers.
Q5: Is this automatic entry gate rugged enough for harsh outdoor environments?
A: Absolutely. The heavy 2.0mm cold-rolled steel enclosures meet IP54 / IP65 / IP66 protection guidelines. Treated with marine-grade powder coatings, they resist continuous rain, freezing temperatures, dust, and heavy UV exposure without structural fading.
Q6: What integrated safety features are standard in case of an obstruction?
A: The barrier implements torque-sensing digital auto-rebound logic to protect vehicles from contact. The controller houses terminal ports for photo-eye detectors, ground loops, and an integrated mechanical clutch override for lifting the arm during blackouts.
Q7: What is the expected cycle lifetime and duty threshold of the drive unit?
A: Built with continuous-duty brushless frequency conversion cores, our drive systems maintain an MCBF of 3 million / 5 million / 10 million times. They run flawlessly under a 100% / Continuous duty cycle with an ultra-low MTTR of under 30 minutes.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Parking Gate Barrier | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Parking Gate | Boom Barrier Gate | Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Gate | Electric Security Boom | Drop Arm Barrier | Parking Revenue Control | Access Control Gate | Automatic Boom Arm | Toll Gate Barrier | Vehicle Loop Detector | Anti-Crash Traffic Gate | Remote Control Gate Opener | Vehicle Barrier Systems | Perimeter Security Solutions | RFID Gate Barrier | License Plate Recognition Gate | High Speed Toll Barrier | Heavy Duty Security Gate | 24V DC Brushless Gate Operator | Industrial Access Control | Articulated Folding Arm Gate | Fence Boom Barrier | Parking Management Hardware | Security Gate Manufacturer | Wholesale Gate Openers | Roadway Security Barriers | Entrance Control Systems | Electric Car Park Barrier | Heavy Duty Vehicle Access Gates | Remote Key Fob Parking Barrier | Automatic Vehicle Gate Operator | Motorized Access Control Boom Gate | Industrial Driveway Security Barriers | Heavy Duty Security Barrier Arms | Multi Rail Fence Gate Barriers | Intelligent Parking Entrance Gate | Microprocessor Parking Gate Control Board | High Torque Servo Motor Barrier | Fast Execution Toll Way Gate | Continuous Duty Cycle Access Barriers | IP66 Certified Waterproof Barrier Enclosure | Powder Coated Steel Barrier Cabinets | Mechanical Clutch Manual Release Gates | Auto Rebound Parking Barrier Sensors | Long Range Proximity Reader Gates | Automated Parking Gate Integration | Commercial Perimeter Security Barriers | High Lifecycle Access Barrier Motors | Automatic Drop Arm Gate Supplier | Heavy Duty Driveway Security Boom | Vehicle Checkpoint Access Gates | Motorized Roadway Barrier Manufacturer | Automatic Lane Gate Systems | Commercial Grade Boom Arm Gates | High Volume Car Park Barriers | Industrial Checkpoint Security Gates | Motorized Traffic Control Barriers | Automatic Car Park Entrance Barriers | Heavy Duty Motorized Security Gates | Automatic Lane Access Control | Motorized Boom Gate Systems | Smart Entrance Security Barriers | Industrial Perimeter Traffic Gates | Automated Drop Arm Checkpoints | Heavy Duty Revenue Gate Openers | Weatherproof Roadway Security Barriers | Professional Gate Opener Hardware | Commercial Driveway Boom Operators | Intelligent Lane Access Barriers | Motorized Parking Barrier Arms | High Cycle Traffic Access Gates | Automatic Security Barrier Casing | Remote Access Parking Lot Barriers | Heavy Duty Toll Barrier Mechanisms | Automated Checkpoint Boom Operators | Motorized Vehicle Access Control | Industrial Roadway Entrance Barriers | Heavy Duty Automated Security Gates | Commercial Vehicle Control Systems | Multi Lane Parking Entrance Solutions | Automatic Vehicle Ingress Gates | High Performance Security Boom Arms | Low Maintenance Traffic Gate Assemblies | High Traffic Terminal Barrier Operators | Motorized Barrier Arm Systems | Commercial Drop Arm Security Systems | Industrial Entrance Gate Operators | Heavy Duty Perimeter Control Gates | Automated Lane Ingress Control Barriers | High Performance Parking Control Boom | Professional Driveway Access Barriers | Intelligent Traffic Entrance Operators | Motorized Checkpoint Barrier Assembly | Weatherproof Commercial Barrier Casings | High Efficiency Vehicle Control Operators | Automated Vehicle Gate Mechanisms | Industrial Entrance Security Turnstiles | Heavy Duty Revenue Collection Gates | Commercial Perimeter Control Systems | Smart Parking Lot Access Barriers | High Performance Traffic Security Barriers | Automated Highway Access Gates | Motorized Perimeter Security Turnstiles | Heavy Duty Traffic Control Operators | Industrial Driveway Control Operators | Commercial Grade Barrier Systems | High Performance Access Control Barriers | Automated Checkpoint Access Barriers | Motorized Roadway Access Operators | Heavy Duty Entry Point Barriers | Commercial Entrance Access Operators | Industrial Grade Vehicle Gates | High Performance Drop Arm Barriers | Automated Lane Access Systems | Motorized Revenue Control Barriers | Heavy Duty Perimeter Control Turnstiles | Commercial Traffic Access Systems | Industrial Ingress Control Operators | High Performance Vehicle Barrier Gates | Automated Traffic Control Enclosures | Motorized Checkpoint Access Gates | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers | Heavy Duty Electric Vehicle Gate Operator | Commercial Drop Arm Gate Operator | Smart Access Control Driveway Operator | DC Brushless Traffic Control Barrier Gate | Weatherproof Electric Security Boom Barrier | High Volume Automatic Boom Barrier Production | Intelligent Parking Lot Barrier Gates | Motorized Traffic Security Gates | High Speed Automatic Road Barriers | Automated Security Boom Gates | Vehicle Access Damping Systems | Motorized Checkpoint Access Control | Toll Plaza Lane Safety Barriers | Automated Entrance Access Hardware | Motorized Access Gates | Industrial Roadside Gates | Automatic Ingress Barriers | Commercial Toll Booth Barriers | Heavy Duty Parking Arm | Intelligent Entrance Barriers | DC Brushless Boom Operator | Logistics Center Vehicle Barriers | Warehouse Parking Gate | Factory Access Barrier Gate | Airport Perimeter Security Gate | Railway Station Security Barriers | Hospital Driveway Gate Opener | University Parking Lot Gates | Stadium Lane Traffic Barriers | High Speed Toll Gate Barrier | 220V Brushless Motor Gate | IP66 Waterproof Barrier Box | Automatic Traffic Control Arm | Heavy Duty Parking Systems | Anti Crash Safety Loop Sensor | Contactless Card Reader Turnstile | Pedestrian Access Speed Gate | Supermarket Entrance Gate | Industrial Security Turnstiles | Automated Revenue Lot Barrier | Electronic Lane Barrier Gate | Vehicle Access Control Systems | Commercial Driveway Boom Gate | Automatic Security Gate Operator | Motorized Roadway Boom Barrier | Smart Vehicle Detection Loops | Proximity RFID Gate Operator | Automated Parking Lot Enclosure | Remote Entrance Control System | Industrial Grade Access Gates | Heavy Duty Automated Boom Barriers | Fast Acting Toll Road Barrier | Sinusoidal Drive Parking Barrier | Long Life Traffic Control Gates | Weatherproof Driveway Gate Operator | Heavy Duty Steel Barrier Housing | Automatic Barrier Arm Assembly | Commercial Vehicle Lane Gate | High Cycle Access Control Gate | Toll Booth Barrier Operator | Automated Entry Point Barrier | Professional Parking Gate Supplier | Custom Length Boom Barrier | Articulated Underground Garage Barrier | Low Clearance Folding Arm Gate | High Visibility LED Boom Gate | Anti Theft Parking Lane Barrier | Smart Microcontroller Gate Operator | Modular Security Barrier Systems | Low Noise Vehicle Entry Gate | Variable Speed Barrier Arm Operator | Continuous Duty Cycle Barrier Gate | Heavy Duty Roadway Access Gates | High Throughput Parking Lot Gate | Intelligent Vehicle Barrier Systems | Commercial Perimeter Security Gates | Automated Driveway Control Barriers | Industrial Plant Access Gates | Logistics Park Lane Barriers | Harbor Terminal Traffic Barriers | Construction Site Vehicle Gates | Government Facility Security Gate | School Campus Entry Barrier | Motorized Checkpoint Barrier Gate | High Performance Access Control Gates | Automatic Vehicle Access Barrier | Commercial Car Park Barrier Gate | Industrial Grade Barrier Operators | Weatherproof Exterior Boom Gates | Premium Powder Coated Gate Operators | Automated Parking Ingress System | Remote Proximity Reader Barriers | Intelligent Anti Collision Gate | High Efficiency Brushless DC Operator | Automated Access Control Equipment | Industrial Perimeter Protection Gates | High Lifecycle Car Park Barrier | Heavy Duty Toll Barrier Systems
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Upgrade to modern cloud facility auditing with our wholesale ticketless LPR parking lot system, configured with paper ticket kiosk backups and an automatic straight bar barrier.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
