Enhance nighttime security grid visibility with our low-voltage DC24V vehicle access control boom gate, featuring a bright integrated LED strip along the aluminum alloy barrier arm profiles.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 | ||
| Selling Units | Single item | ||
User-Friendly Control Interface: Featuring an advanced, integrated logic core motherboard, this system ensures effortless calibration, loop terminal assignment, and swift deployment scaling.
Modular Enclosure Engineering: Designed with an optimized structural footprint that facilitates rapid site deployment and painless field maintenance. This provides high-efficiency infrastructure for a rugged automated parking gate barrier system built to endure nonstop operational demand.
Unmatched Drive Core Stability: Utilizing heavy-duty DC brushless motors paired with digital frequency conversion control loops to provide fluid acceleration profiles, stable mid-travel performance, and quiet operation.
Proactive Safety Protections: Equipped with modern anti-collision mechanics, active obstruction auto-rebound modules, and an integrated manual mechanical clutch override for emergency power-off lift protocols.
Universal Access Integration: Universally compatible with contactless smart card readers, secure swing barrier gate terminals, pedestrian speed gates, security access control barriers, vehicle induction loop detectors, parking lot barrier gates, 220v brushless dc motors, and supermarket entry gate lanes.

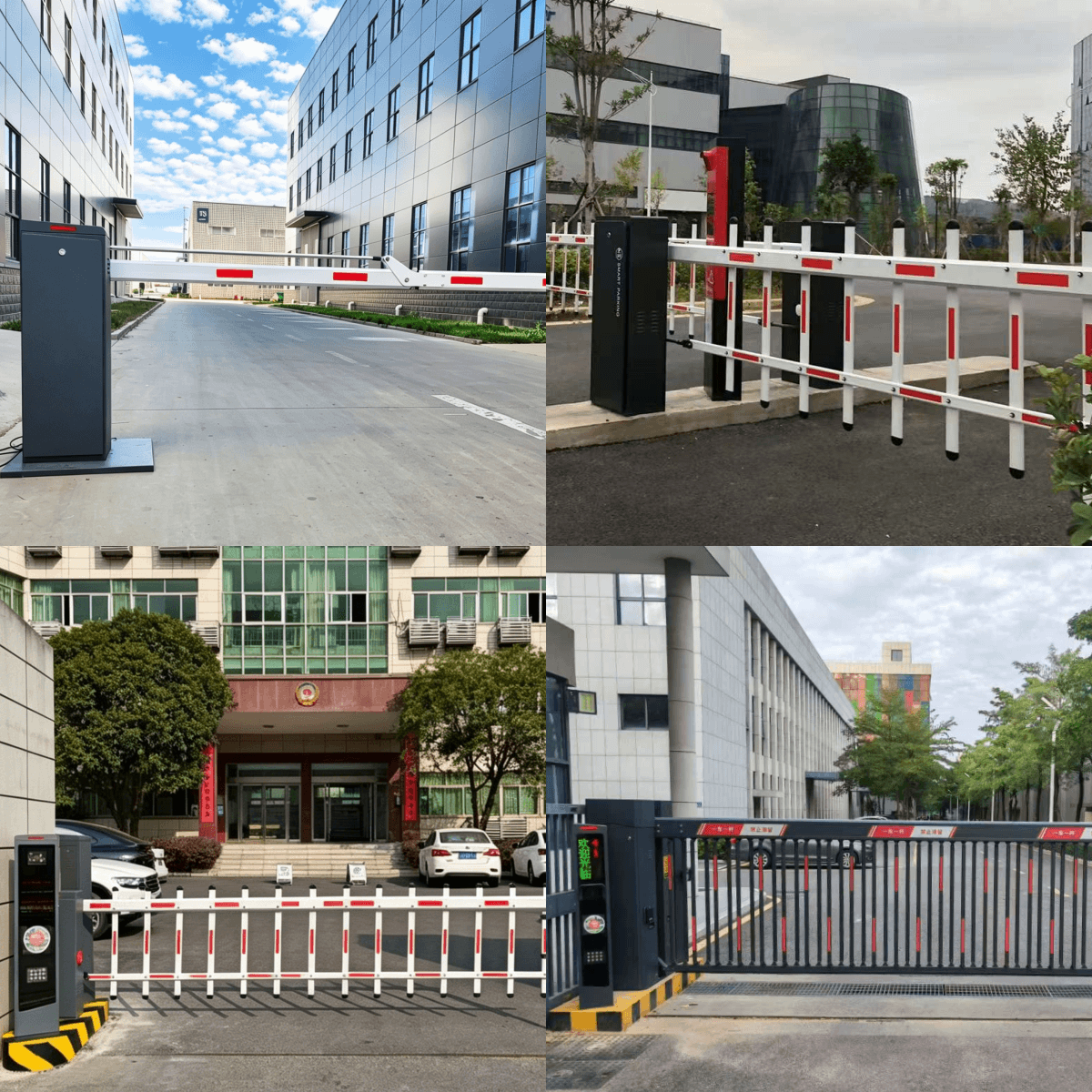

Versatile Real-World Applications: Purpose-built for critical access management in high-end commercial shopping malls, corporate office buildings, business centers, luxury hotels, premium resorts, exhibition hubs, residential apartment complexes, private estates, condominiums, factories, heavy industrial parks, logistics distribution facilities, freight warehouses, deepwater port terminals, construction zones, transport hubs (airports and railway stations), medical healthcare centers, government administrative offices, university campuses, schools, athletic sports stadiums, public gyms, and high-frequency highway toll plazas.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier global supplier in the physical perimeter security and facility access control industry, BAROXON delivers full turnkey engineering, precision machining, and volume manufacturing capabilities for automatic vehicle access control, heavy-duty commercial entry infrastructure, and smart parking revenue network deployment. Our robust, low-maintenance commercial parking lot gate mechanism engineering ensures accelerated traffic clearance, reliable multi-lane management, and superior housing durability under severe climate conditions worldwide.
Strategic Market Positioning: Specialized research and manufacturing of commercial straight-arm lane operators, multi-tier perimeter fence barrier gates, low-clearance articulated folding arms, and advanced automatic rfid boom barrier software system integration.
Global Deployment Footprint: Trusted by multinational tollway concessionaires, real estate development groups, municipal agencies, and commercial access contractors across 200+ countries, including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Providing comprehensive project site analysis, CAD installation blueprints, control terminal integration training, and direct specialized engineering consultancy.
Convenient Structural Design: Precision-molded internal mechanics and modular electronics enable swift on-site deployment, simple adjustments, and minimal lifecycle service down-time.
Technological Innovation Barriers: Backed by an extensive intellectual property portfolio containing over 100 core patents covering smart DC brushless controller motherboards and vehicle safety control devices.
Highly Professional Engineering Team: Our core R&D divisions and hardware manufacturing supervisors possess over 20 years of expertise in industrial access gate automation and embedded electronics design.
Uncompromising Service Commitment: Providing an instant 1-minute digital support response, 2-hour expert technical issue breakdown, and comprehensive 2-day closed-loop site resolution protocols.
Q1: What are the variable speed profiles and cycle ratings for this barrier arm series?
A: This operator supports lightning-fast opening/closing speeds of 0.6s / 0.9s / 1.5s - 6s, which are fully adjustable to match your specific boom profile. Engineered with a true 100% continuous duty cycle, it supports an intensive workload of 5000 cycles per day, ideal for high-velocity lanes.
Q2: What motor architectures and electrical configurations are supported?
A: The system can be configured with an industrial-grade DC 24V Brushless motor, AC 110V power assemblies, or a high-precision digital Servo Motor. Peak power draws are limited to 140W under maximum load, while standard standby states consume less than 5W.
Q3: What types of boom arm structures can be attached to the housing?

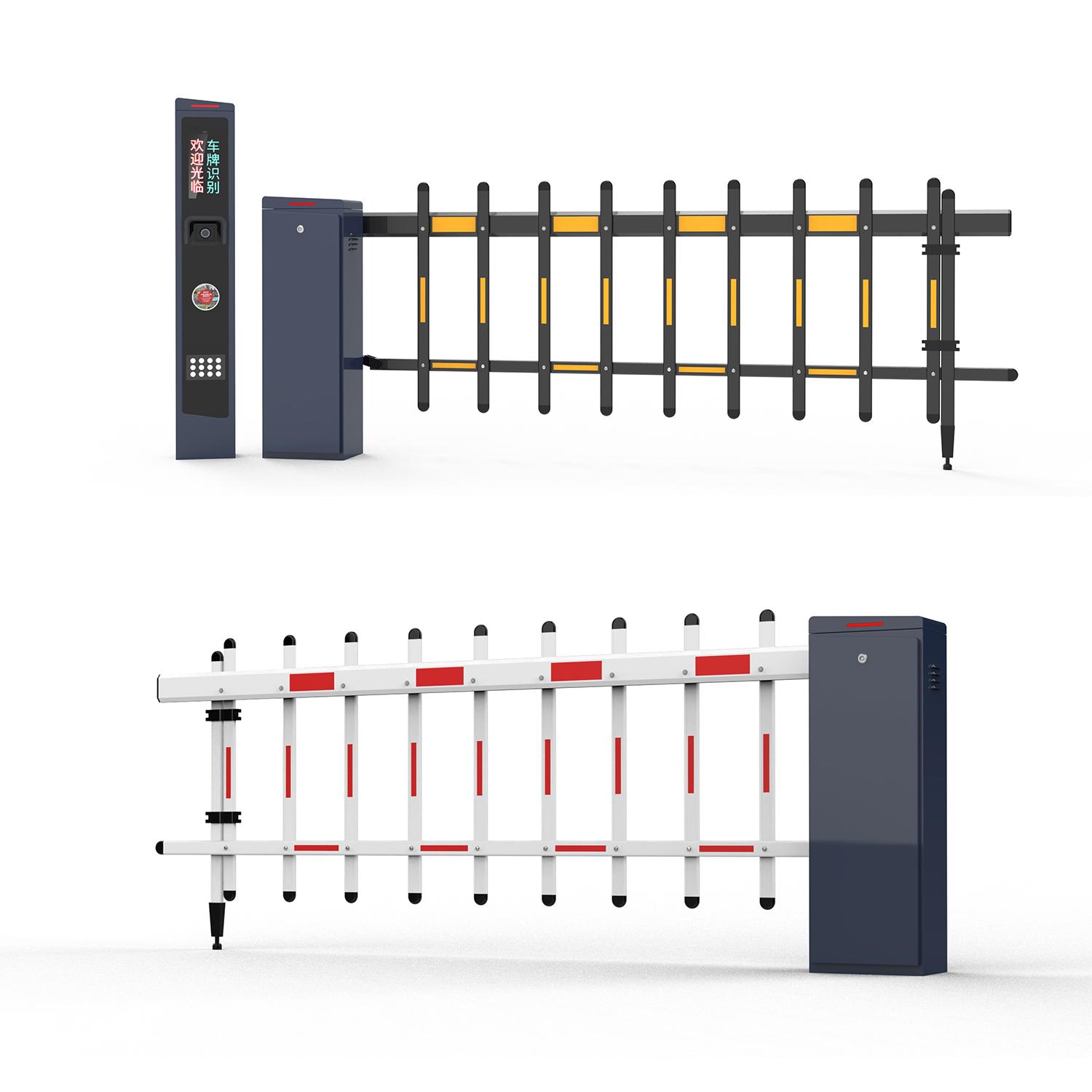

A: The mechanism is highly versatile, supporting straight aerodynamic profiles, 90° or 180° folding articulated arm assemblies for underground garages with low ceilings, and two-rail or three-rail pedestrian control fence configurations across an expansive arm length range of 1m - 6m.
Q4: Can this gate operator interface with external access hardware and security loops?
A: Yes, the integrated motherboard includes modern dry-contact expansion banks. It seamlessly integrates with ANPR/LPR tracking nodes, contactless smart cards, smartphone entry keys, vehicle loop detectors, long-range UHF readers, and existing facility management networks.
Q5: What are the environmental protection classifications and cabinet specifications?
A: The heavy-duty housing is constructed from robust 2.0mm cold-rolled steel treated with a specialized multi-layer outdoor powder coating. Depending on project demands, we provide certified IP54, IP65, or IP66 ingress protection ratings that function flawlessly from -30℃ to 80℃.
Q6: What is the calculated operating reliability and standard repair turnaround time?
A: The drive assembly boasts an impressive MCBF (Mean Cycles Between Failure) of 3 million, 5 million, or up to 10 million operations based on the core motor selection. In the rare event of service intervention, its modular layout delivers an MTTR (Mean Time to Repair) of under 30 minutes.
Q7: What failsafes track obstructions and manage immediate power failures?
A: The motherboard monitors active feedback variables to activate an immediate auto-rebound loop upon contacting an obstruction. Additionally, the unit incorporates an anti-collision breakaway arm mechanism alongside a manual mechanical clutch release to easily lift the gate arm during site power outages.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Parking Gate Barrier | Commercial Parking Lot Gate Mechanism | Automatic RFID Boom Barrier | High Speed Toll Gate Barrier | 100% Duty Cycle Vehicle Gate | 0.6s High Speed Barrier | Brushless DC Gate Operator | IP66 Waterproof Barrier Housing | 2.0mm Cold Rolled Steel Chassis | Folding Articulated Arm Gate | Multi Rail Fence Boom Barrier | 10 Million MCBF Parking Gate | Digital Servo Motor Barrier | Variable Speed Drop Arm Gate | Commercial Roadway Safety Barriers | Vehicle Induction Loop Detector | Smart Parking Access Controller | Automatic Entry Control Enclosure | Remote Control Driveway Gate Opener | Commercial Vehicle Barrier Systems | Perimeter Protection Security Gate | License Plate Recognition Gate System | Intelligent Car Park Entrance Barrier | Heavy Duty Motorized Access Gates | Tollway Plaza Lane Safety Barrier | Proximity RFID Gate Operator | Automated Parking Revenue Control | Smart Access Control Driveway Operator | DC Brushless Traffic Control Barrier Gate | Weatherproof Electric Security Boom Barrier | High Volume Automatic Boom Barrier Production | Intelligent Parking Lot Barrier Gates | Motorized Traffic Security Gates | High Speed Automatic Road Barriers | Automated Security Boom Gates | Vehicle Access Damping Systems | Motorized Checkpoint Access Control | Toll Plaza Lane Safety Barriers | Automated Entrance Access Hardware | Motorized Access Gates | Industrial Roadside Gates | Automatic Ingress Barriers | Commercial Toll Booth Barriers | Heavy Duty Parking Arm | Intelligent Entrance Barriers | DC Brushless Boom Operator | Logistics Center Vehicle Barriers | Warehouse Parking Gate | Factory Access Barrier Gate | Airport Perimeter Security Gate | Railway Station Security Barriers | Hospital Driveway Gate Opener | University Parking Lot Gates | Stadium Lane Traffic Barriers | 220V Brushless Motor Gate | IP54 Weatherproof Barrier Box | Automatic Traffic Control Arm | Heavy Duty Parking Systems | Anti Crash Safety Loop Sensor | Contactless Card Reader Turnstile | Pedestrian Access Speed Gate | Supermarket Entrance Gate | Industrial Security Turnstiles | Automated Revenue Lot Barrier | Electronic Lane Barrier Gate | Vehicle Access Control Systems | Commercial Driveway Boom Gate | Automatic Security Gate Operator | Motorized Roadway Boom Barrier | Smart Vehicle Detection Loops | Automated Parking Lot Enclosure | Remote Entrance Control System | Industrial Grade Access Gates | Heavy Duty Automated Boom Barriers | Fast Acting Toll Road Barrier | Sinusoidal Drive Parking Barrier | Long Life Traffic Control Gates | Weatherproof Driveway Gate Operator | Heavy Duty Steel Barrier Housing | Automatic Barrier Arm Assembly | Commercial Vehicle Lane Gate | High Cycle Access Control Gate | Toll Booth Barrier Operator | Automated Entry Point Barrier | Professional Parking Gate Supplier | Custom Length Boom Barrier | Articulated Underground Garage Barrier | Low Clearance Folding Arm Gate | High Visibility LED Boom Gate | Anti Theft Parking Lane Barrier | Smart Microcontroller Gate Operator | Modular Security Barrier Systems | Low Noise Vehicle Entry Gate | Variable Speed Barrier Arm Operator | Continuous Duty Cycle Barrier Gate | Heavy Duty Roadway Access Gates | High Throughput Parking Lot Gate | Intelligent Vehicle Barrier Systems | Commercial Perimeter Security Gates | Automated Driveway Control Barriers | Industrial Plant Access Gates | Logistics Park Lane Barriers | Harbor Terminal Traffic Barriers | Construction Site Vehicle Gates | Government Facility Security Gate | School Campus Entry Barrier | Motorized Checkpoint Barrier Gate | High Performance Access Control Gates | Automatic Vehicle Access Barrier | Commercial Car Park Barrier Gate | Industrial Grade Barrier Operators | Weatherproof Exterior Boom Gates | Premium Powder Coated Gate Operators | Automated Parking Ingress System | Remote Proximity Reader Barriers | Intelligent Anti Collision Gate | High Efficiency Brushless DC Operator | Automated Access Control Equipment | Industrial Perimeter Protection Gates | High Lifecycle Car Park Barrier | Heavy Duty Toll Barrier Systems | Automated Checkpoint Access Barriers | Motorized Roadway Access Operators | Heavy Duty Entry Point Barriers | Commercial Entrance Access Operators | Industrial Grade Vehicle Gates | High Performance Drop Arm Barriers | Automated Lane Access Systems | Motorized Revenue Control Barriers | Heavy Duty Perimeter Control Turnstiles | Commercial Traffic Access Systems | Industrial Ingress Control Operators | High Performance Vehicle Barrier Gates | Automated Traffic Control Enclosures | Motorized Checkpoint Access Gates | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers | Heavy Duty Electric Vehicle Gate Operator | Commercial Drop Arm Gate Operator | Smart Access Control Driveway Operator
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Enhance nighttime security grid visibility with our low-voltage DC24V vehicle access control boom gate, featuring a bright integrated LED strip along the aluminum alloy barrier arm profiles.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
