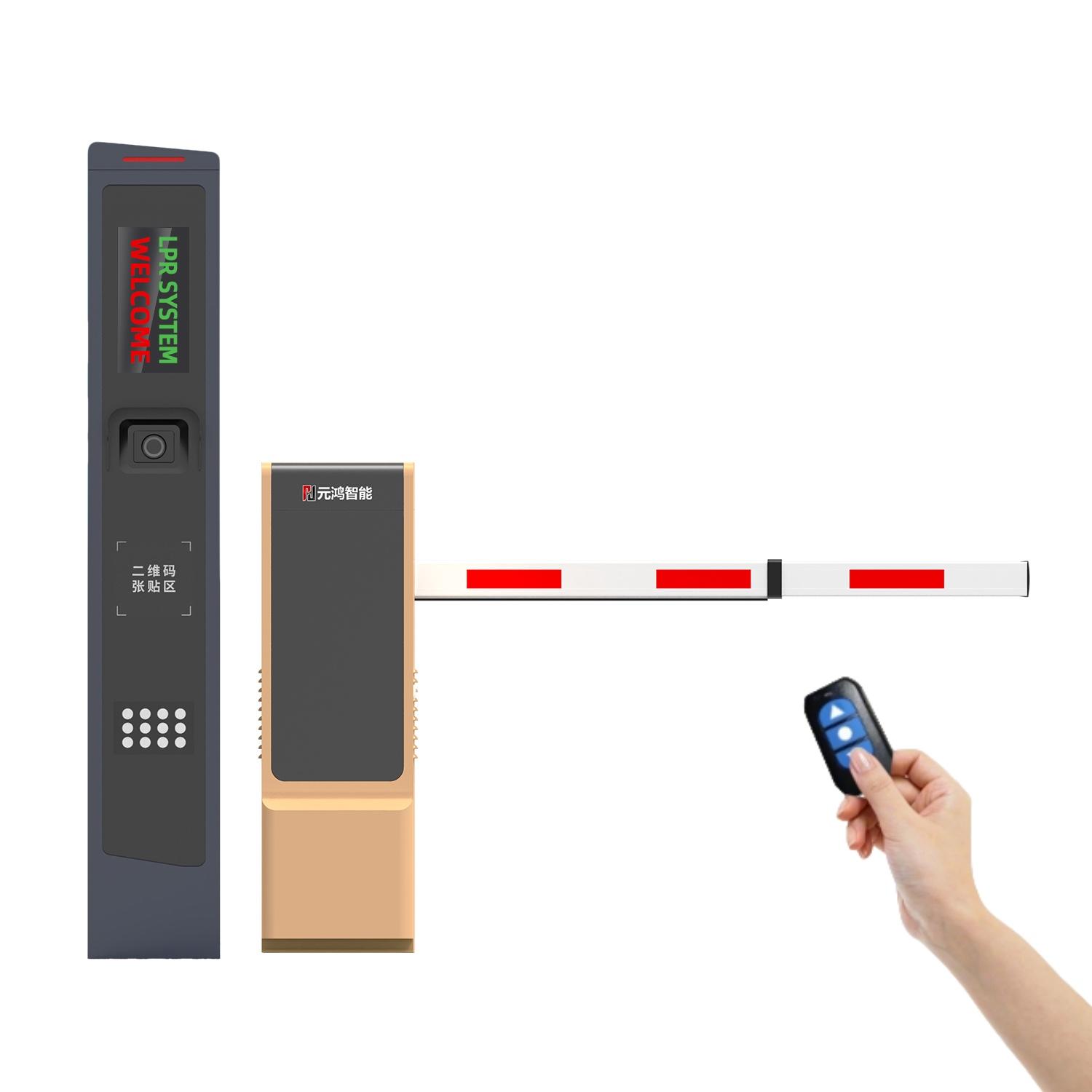

Invest in longevity with our high-quality automatic parking gate barrier, available in versatile AC or DC motor configurations. Engineered for smooth lifting cycles in multi-level unattended parking structures.
| Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other | Place of Origin | Shandong. China |
| Material | Cold rolled steel. Stainless Steel. Zinc Alloy | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Storage | Cloud. Memory Card |
| Type | Card. Code. Key. Smartphone. Other | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
User-Friendly Control System: Features a highly integrated microprocessor mainboard engineered for fluid configuration, supporting rapid smart card enrollment and advanced proximity credential token authentication.
Modular Electro-Mechanical System: Optimized unified layout facilitates rapid mechanical assembly, simplified site preparation, and efficient field troubleshooting for any automated parking gate barrier installation.
Heavy-Duty Mechanical Build: Combines an industrial-grade DC brushless motor with high-efficiency frequency conversion logic to achieve precise position leveling, smooth slowdown curves, and ultra-quiet driveway control gate operations.
Proactive Vehicle Safety Protection: Equipped with native multi-layered safety interfaces including dual-channel loop vehicle detectors, anti-smash auto-rebound obstruction sensors, and an ergonomic manual mechanical clutch for quick lifting during absolute power cuts.
Pedestrian & Vehicle Perimeter Access: Out-of-the-box support for external contactless card reader pedestals, physical turnstiles, optical pedestrian speed gate lanes, and commercial parking lot barrier gate 220v brushless dc motor installations for security checkpoints.

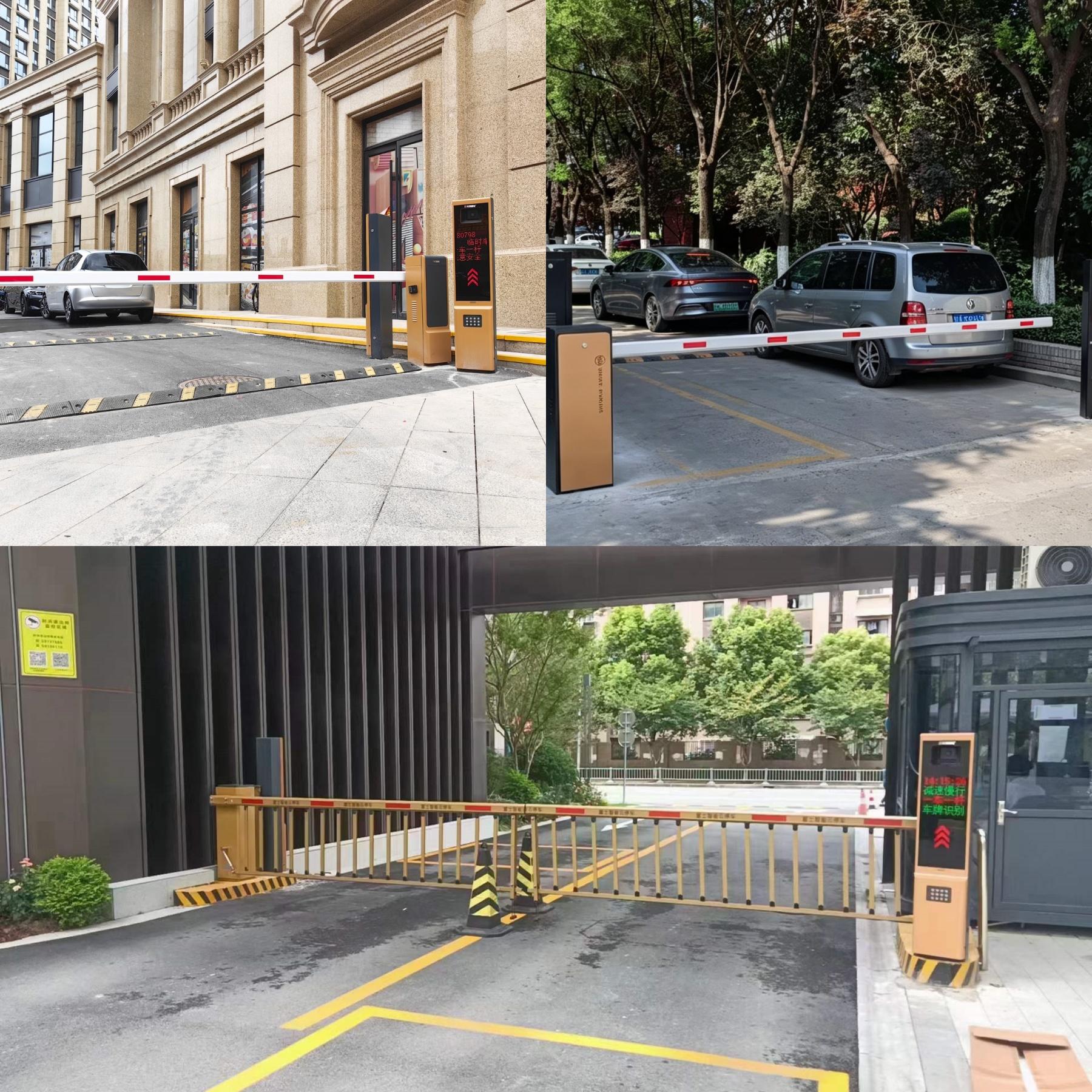

High-Traffic Commercial Deployments: Engineered to manage continuous heavy-duty vehicle flow at busy retail shopping centers, corporate office buildings, premium hotels, multi-family apartment communities, and industrial shipping yards.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged, heavy-duty commercial parking lot gate mechanism engineering ensures absolute dependability for municipal developers, industrial park operators, and critical infrastructure facilities across the globe.
Strategic Market Positioning: Expert R&D focus on industrial continuous duty cycle straight-arm systems, heavy multi-tier security fence boom gates, low-clearance articulated mechanisms, and specialized alpr lpr car plate system camera integration protocols.
Global Deployment Footprint: Supplying global tollway corporations, estate property managers, and high-security defense contractors across 200+ regions, including North America, the United Kingdom, and Australia.
Full-Service Project Support: Delivering complete checkpoint layout engineering, architectural CAD site blueprints, intuitive field wiring documentation, and personalized multi-channel technical consulting.
Convenient Structural Design: Proprietary internal tooling and heavy-duty casting molds facilitate ultra-fast ground anchorage, frictionless boom alignment, and zero-headache long-term site service.
Technological Innovation Barriers: Backed by an industry-leading intellectual property portfolio containing over 100 patents in frequency-conversion software algorithms and intelligent anti-crush safety loops.
Highly Professional Engineering Team: Our elite production management division brings together over 20 years of specialized expertise in automated entrance control hardware design.
Uncompromising Service Commitment: Immediate 1-minute initial online service replies, 2-hour technical engineering diagnoses, and 2-day closed-loop factory delivery logistics.
Q1: What are the dynamic operating speeds and arm configurations supported?
A: The system provides highly adjustable actuation speeds of 0.6s / 0.9s / 1.5s - 6s (Adjustable), effortlessly matching straight aluminum alloy booms, 90-degree or 180-degree articulated folding arm linkages for basement garages, and multi-rail security fence barriers spanning from 1m - 6m (Customizable).
Q2: Can the barrier hardware connect directly to third-party access control networks?
A: Yes. The onboard control microprocessor provides native dry contact terminal relays, RS485 communication ports, and standard Wiegand interfaces. This guarantees seamless, trouble-free integration with multi-lane RFID transponders, facial recognition pillars, proximity barcode scanners, and automated license plate scanning cameras.
Q3: How are vehicle safety and anti-smash prevention handled?
A: Our systems offer integrated multi-tier fail-safe loops. The low-voltage brushless driver continuously reads torque resistance to trigger an immediate auto-rebound upon hitting an obstruction. Additionally, it has dedicated plug-in terminals for active safety photo-eyes, ground loop sensors, and a manual mechanical clutch for quick lifting during unexpected blackouts.
Q4: Is the cabinet housing prepared for severe outdoor environmental exposure?
A: Absolutely. Every single chassis is fabricated out of heavy 2.0mm cold-rolled steel treated with industrial rust-inhibiting zinc primers and a dense UV-resistant architectural powder coating. This ensures continuous outdoor deployment under a certified IP54 / IP65 / IP66 protection environment index.
Q5: What is the estimated lifecycle and maintenance profile of the motor drive?
A: Utilizing an advanced 24V brushless motor paired with sinusoidal mechanical linkage kinematics, our powertrains boast a certified MCBF of 3 million / 5 million / 10 million times. The entire drivetrain works under a 100% / Continuous duty cycle with zero routine lubrication required.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Parking Gate Barrier | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Automatic Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom Operator | Drop Arm Barrier Assembly | Parking Revenue Control Hardware | Access Control Gate Systems | Automatic Boom Arm Gate | Toll Gate Barrier Mechanism | Inductive Vehicle Loop Detector | Anti-Crash Traffic Gate | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator | Industrial Access Control Workshop | Articulated Folding Arm Gate | Multi Rail Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader Pillar | Pedestrian Speed Gate Barrier | Supermarket Entrance Gate System | Motorized Lane Security Barriers | Automated Roadway Access Gates | Heavy Duty Drop Arm Operator | High Traffic Toll Barrier Systems | Automated Checkpoint Access Gates | Motorized Traffic Security Gates | Intelligent Driveway Control Barriers | Electric Car Park Boom Gates | Heavy Duty Galvanized Steel Gate Cabinets | Sinusoidal Linkage Barrier Operators | Automatic Security Boom Gate | Vehicle Traffic Control Turnstiles | Shandong Automatic Barrier Factory | High Frequency Parking Gate Operators | Multi Lane Parking Entrance Gates | Electronic Vehicle Loop Detector Module | Weatherproof Traffic Gate Cabinets | Low Clearance Articulated Gate | Heavy Duty 220V Brushless Motor Barrier | Automated Barrier Arm Operators | Industrial Checkpoint Security Barriers | Remote Proximity RFID Access Gates | Parking Lot Access Control Hardware | Automated Perimeter Entrance Barriers | High Efficiency Servo Motor Barrier Gate | Commercial Entrance Security Operators
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Invest in longevity with our high-quality automatic parking gate barrier, available in versatile AC or DC motor configurations. Engineered for smooth lifting cycles in multi-level unattended parking structures.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
