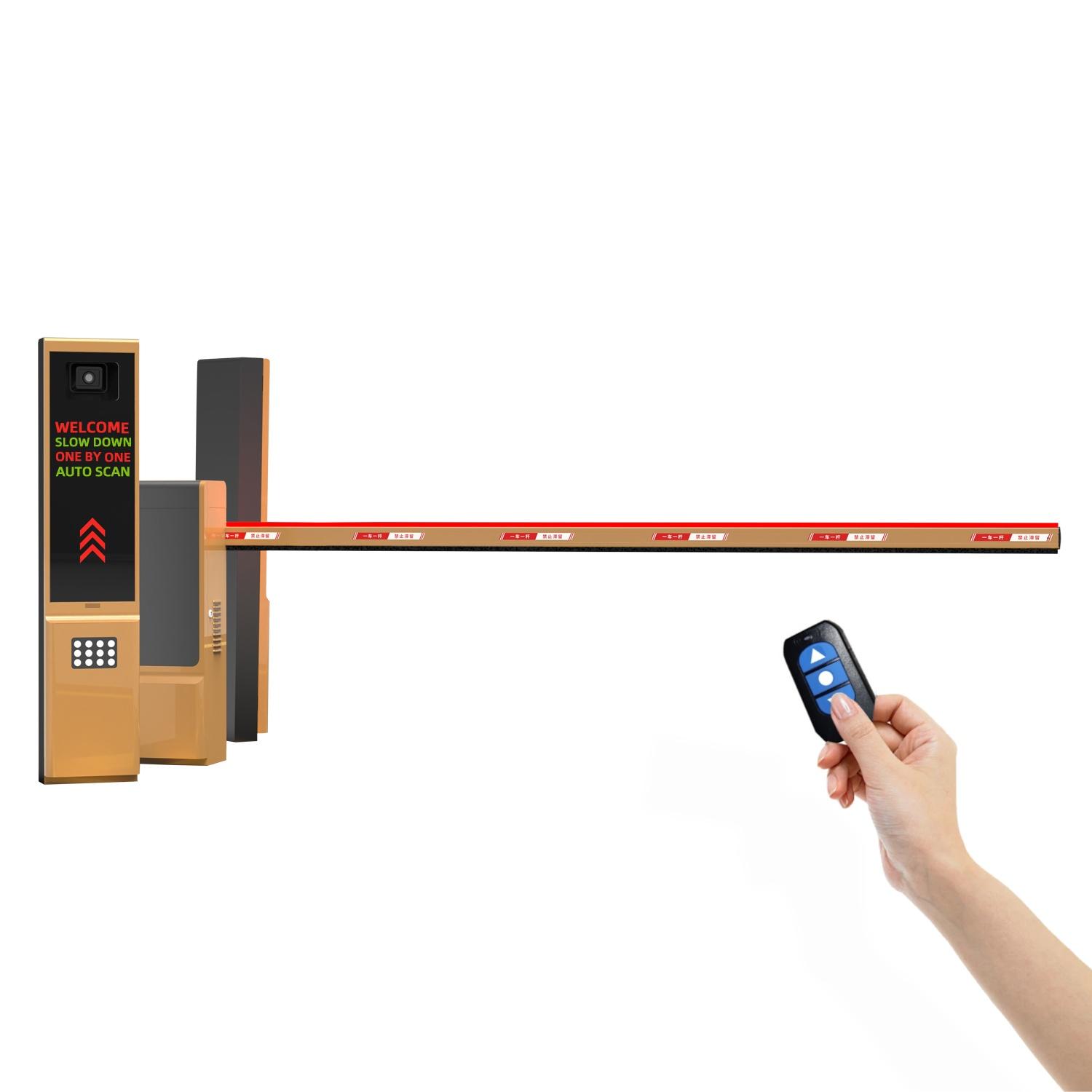

Secure long-span entrances with our custom 10m heavy-duty intelligent aluminum alloy boom barrier gate. Engineered with structural reinforcement for industrial warehouses, freight yards, and railway crossings.
| Type | Card, Code, Key, Smartphone, UHF | Special Features | Anti-Theft, Built-In Siren, Motion Detection, Night Vision, Time & Attendance |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item per heavy-duty export-grade crate with shock-resistant packaging. |
Baroxon provides enterprise-grade perimeter security solutions with a user-friendly interface and integrated smart control board for secure chip card management.
Our modular automatic parking gate barrier is engineered for simplified installation and maintenance, ensuring high operational efficiency for any facility.
Featuring a stable structure with DC brushless motors and advanced frequency conversion technology, our AI-driven vehicle access gate systems deliver smooth, ultra-low-noise performance.
Enhanced with intelligent safety protection, including auto-rebound upon collision, power-off manual release, and compatibility with contactless card readers and high-security swing barrier gates.
Our comprehensive traffic management solutions include speed gate pedestrian controls, magnetic vehicle loop detectors, and industrial-grade boom barriers ideal for large-scale parking revenue control.

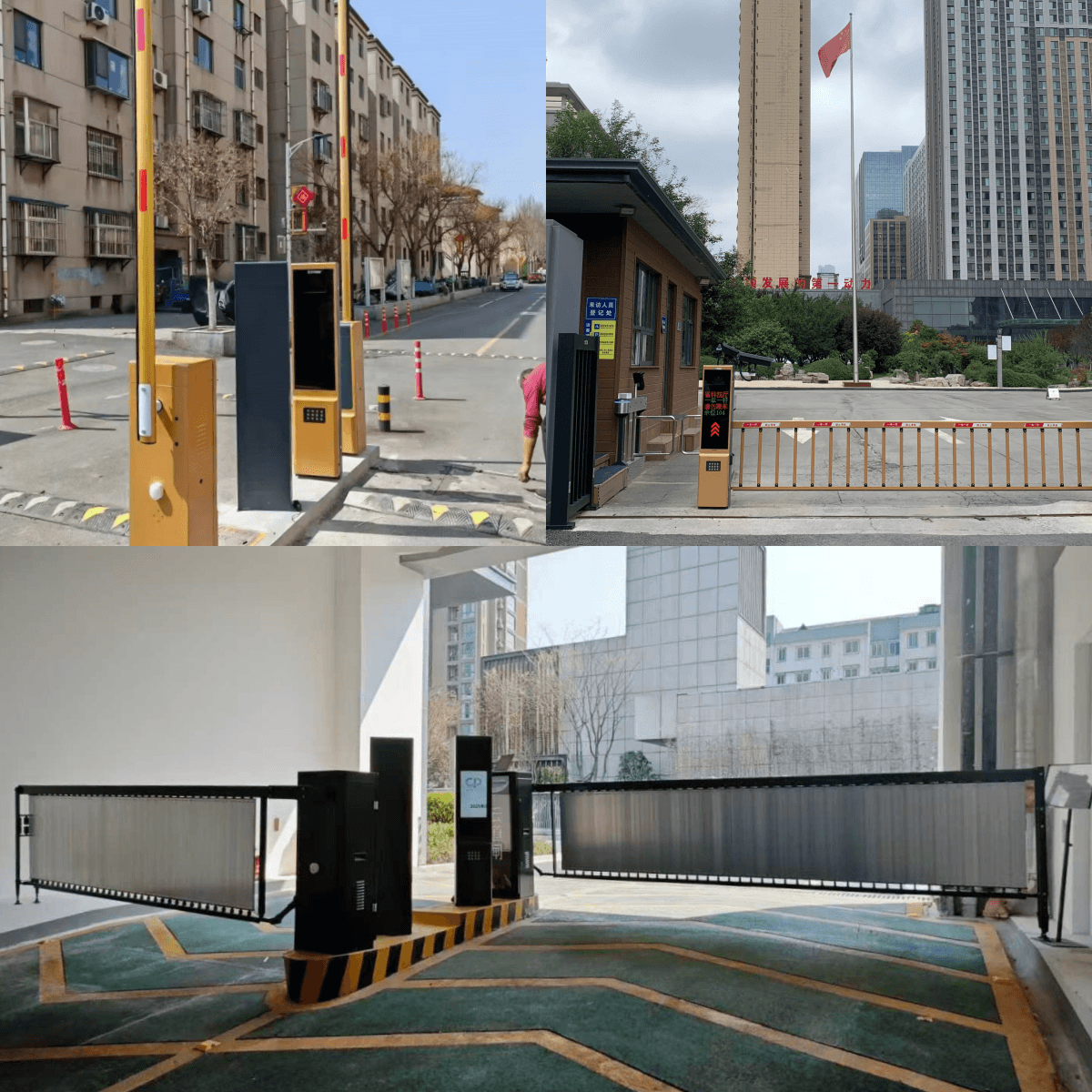

Usage scenarios: Premium commercial shopping malls, corporate office buildings, business centers, luxury resorts, hotels, exhibition centers, residential apartment complexes, private estates, and gated condominium communities.
As a premier supplier in the perimeter security and access control industry, Baroxon offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment.
Q1: What is the operating speed of the Baroxon barrier gate?
A: Our systems offer adjustable speeds from 0.6s to 6s, tailored for high-frequency toll plazas or secure corporate entries.
Q2: Can your systems integrate with external LPR/RFID software?
A: Yes, our gates support open-protocol integration with all major License Plate Recognition and RFID proximity platforms.
Q3: Are these gates rated for harsh outdoor environments?
A: Certainly. Our barriers utilize industrial-grade UV-resistant coatings and are rated IP54-IP66 for all-weather durability.
Q4: What safety measures prevent damage to vehicles?
A: We provide intelligent anti-collision logic, auto-reverse sensors, and photo-eye compatibility to ensure maximum safety.
Q5: What is the lifespan of your brushless motor components?
A: Engineered for high-volume use, our motor core units are designed for over 5-10 million operational cycles.
Q6: Do you offer custom arm lengths or configurations?
A: Yes, we provide straight, folding (90°/180°), and fence-rail boom arms customizable from 1m to 6m.
Q7: How is technical support handled for international buyers?
A: We provide full documentation, video tutorials, and dedicated 24/7 remote consulting for all global partners.
Q8: What power inputs are supported?
A: Standard AC 110V/220V power. We also offer solar-ready DC solutions for remote, off-grid installation sites.
Contact Baroxon today for wholesale quotes, project tenders, and custom manufacturing inquiries:
Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Automatic Parking Gate | Boom Barrier Gate | Parking Revenue Control | Traffic Control Barrier | Commercial Driveway Gate | Electric Security Boom | Drop Arm Barrier | Access Control Gate | Automatic Boom Arm | Toll Gate Barrier | Vehicle Loop Detector | Anti-Crash Traffic Gate | Remote Control Gate Opener | Vehicle Barrier Systems | Perimeter Security Solutions | RFID Gate Barrier | License Plate Recognition Gate | High Speed Toll Barrier | Heavy Duty Security Gate | 24V DC Brushless Gate Operator | Industrial Access Control | Articulated Folding Arm Gate | Fence Boom Barrier | Parking Management Hardware | Security Gate Manufacturer | Wholesale Gate Openers | Roadway Security Barriers | Entrance Control Systems | Electric Car Park Barrier | Intelligent Vehicle Detection | Gated Community Entry | Automated Traffic Enforcement | Perimeter Defense | Parking Gate Maintenance | Custom Boom Arms | Industrial Traffic Management | Intelligent Gate Automation | Vehicle Access Control Systems | Parking Garage Security | Roadway Safety Barriers | Automated Entrance Solutions | Advanced Perimeter Security Hardware | Smart Access Control Technology
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Secure long-span entrances with our custom 10m heavy-duty intelligent aluminum alloy boom barrier gate. Engineered with structural reinforcement for industrial warehouses, freight yards, and railway crossings.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
