Improve road safety with our industrial-grade traffic RFID barrier gate equipment. Constructed with heavy-duty steel metal straight bar boom arms and columnar housings for durable outdoor facility parking.
| Type | Card. Code. Key. Smartphone. Other | Special Features | Anti-Theft. Built-In Siren. Motion Detection. Night Vision. One-Way Audio. Time & Attendance. Other |
| Storage | Cloud. Memory Card | Material | Cold rolled steel. Stainless Steel. Zinc Alloy |
| Place of Origin | Shandong. China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 110V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

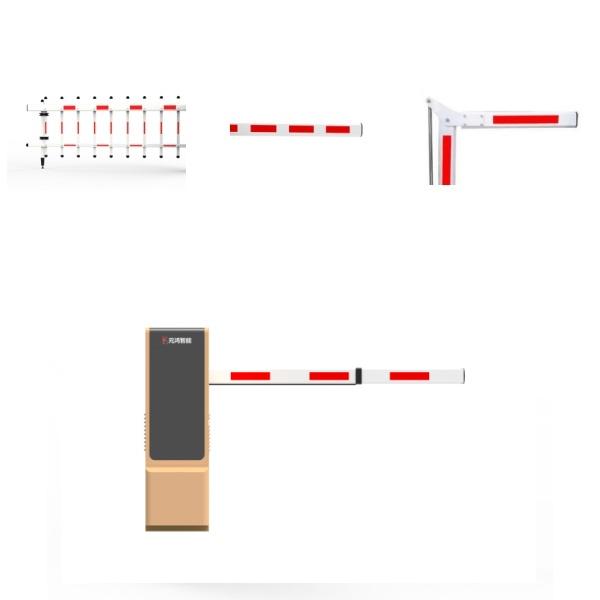

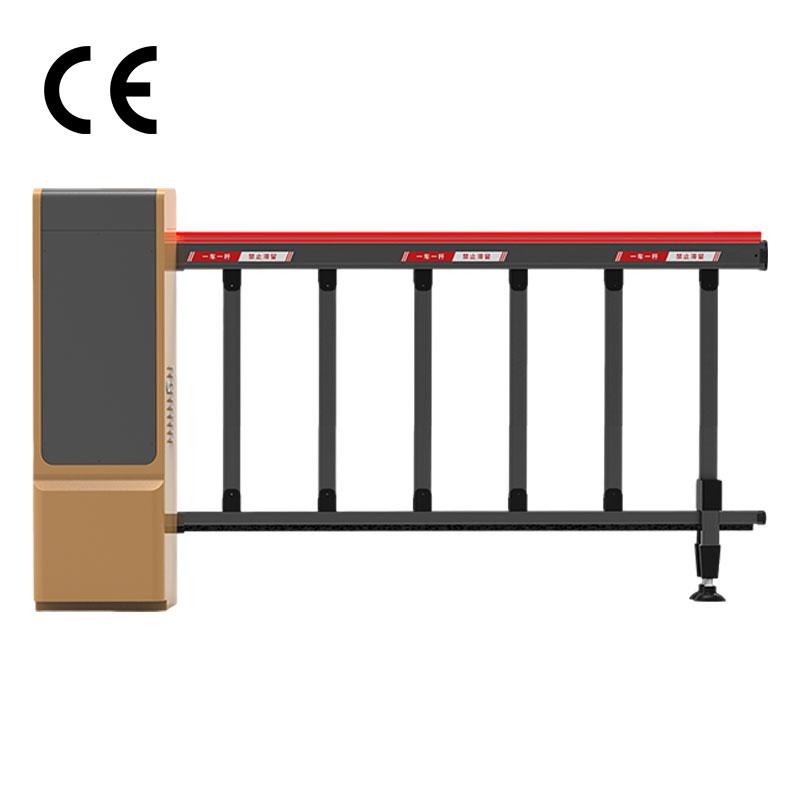

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby: <5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
| Selling Units | Single item |
User-Friendly Operations Logic: Engineered with an intelligent integrated motherboard supporting fluid terminal logic calibration, secure smart chip card reader enrollment, and hassle-free commissioning for busy commercial driveway lanes.
Modular Electro-Mechanical Layout: Compact and space-saving layout guarantees straightforward field setup and exceptionally fast maintenance cycles across your automated parking gate barrier networks.
Vibration-Free Mechanical Architecture: High-torque industrial DC brushless motor coupled with state-of-the-art frequency conversion technology secures precise travel leveling, ultra-smooth deceleration curves, and low-noise driveway entrance gate performance.
Proactive Vehicle Safety Protection: Equipped with layered anti-crash fail-safes including smart obstruction force detection for immediate auto rebound, heavy-duty vehicle anti-collision loops, and a manual mechanical clutch for lifting the gate during full power blackouts.
Pedestrian & Vehicle Perimeter Hardware: Native terminals allow simple plug-and-play matching with external contactless card reader pillars, heavy-duty commercial swing barrier gate housings, optical pedestrian speed gate lanes, and supermarkets entrance structures utilizing a durable parking lot barrier gate 220v brushless dc motor cabinet.

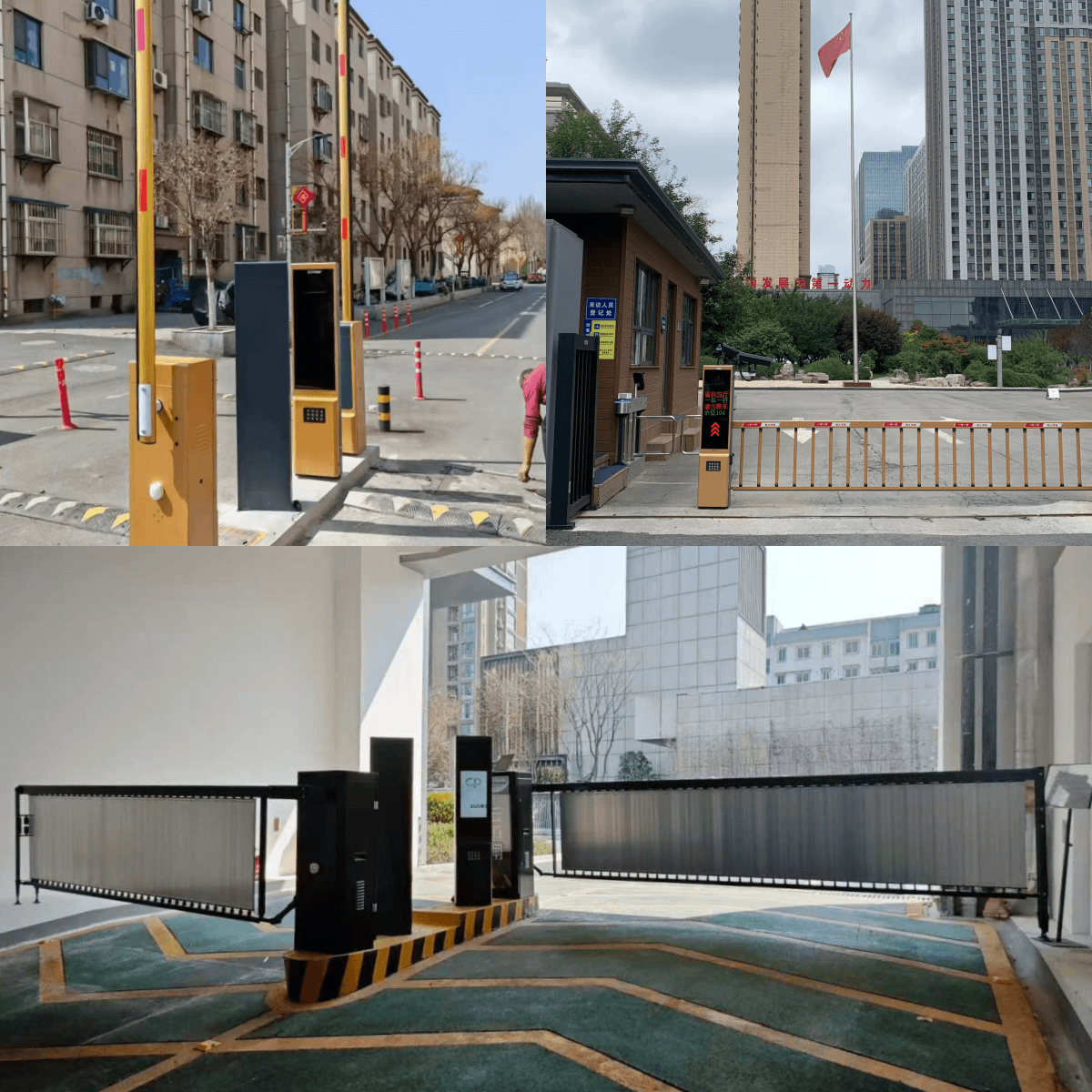

High-Traffic Commercial Scenarios: Built to withstand endless duty cycles at modern Commercial Shopping Malls, corporate Office Buildings / Business Centers, Hotels & Resorts, Exhibition Centers, residential Gated Apartment Complexes, Private Villas, and Master-Planned Condominiums.
Watch our industrial-grade automatic drop arm barriers and electric security boom gates in action below:
As a premier supplier in the perimeter security and access control industry, BAROXON offers full turnkey engineering and manufacturing capabilities for vehicle access control, commercial entry security, and intelligent parking lot deployment. Our rugged, heavy-duty commercial parking lot gate mechanism lineup delivers continuous high-frequency operations for system integrators, public transit authorities, municipal infrastructure projects, and real estate developers globally.
Strategic Market Positioning: Specialized engineering focus on high-traffic automatic drop arm operators, multiple-rail fence boom gates, articulated underground barriers, and direct alpr lpr car plate system camera integration protocols.
Global Deployment Footprint: Proudly supplying highway toll operators, corporate facility managers, and commercial perimeter contractors across 200+ countries, including the United States, United Kingdom, Canada, and Australia.
Full-Service Project Support: Delivering comprehensive facility layout assessments, detailed CAD design blueprints, professional on-site system hardware instruction, and expert technical consultation.
Convenient Structural Design: In-house manufactured structural tooling and precision steel casting molds facilitate quick field mounting, hassle-free leveling, and minimal long-term upkeep.
Technological Innovation Barriers: Backed by an expansive intellectual property portfolio comprising over 100 patents in advanced DC brushless control architecture and barrier safety logic.
Highly Professional Engineering Team: Our core technical R&D and factory management experts bring more than 20 years of continuous commercial access control manufacturing experience.
Uncompromising Service Commitment: Instant 1-minute online sales support replies, 2-hour expert technical system diagnoses, and rapid 2-day complete loop resolution protocols.
Q1: What are the dynamic actuation speeds available for lane security?
A: The opening and closing speeds range seamlessly from 0.6s / 0.9s / 1.5s - 6s (Adjustable). This parameter is easily configured on the motherboard via digital firmware tuning to perfectly match different boom arm profiles and traffic demands.
Q2: Does the internal power transformer support multi-voltage inputs and alternative power?
A: Yes, our control architecture native logic supports standard AC 110V/220V power inputs. For remote perimeter locations or eco-conscious developments, the system can be configured for 24V DC to connect directly with solar panel systems and backup batteries.
Q3: What is the maximum boom arm span supported by this barrier chassis?
A: The heavy-duty chassis comfortably drives lightweight aluminum alloy profiles from 1m - 6m (Customizable). We build custom-engineered folding linkages (90°/180°) for low-clearance underground garages and two/three-rail fence arm profiles for pedestrian restriction zones.
Q4: Can the control logic panel interface with existing ALPR or access control hardware?
A: Absolutely. The motherboard terminal block comes fully equipped with Wiegand, RS485, and standard dry-contact relays, enabling seamless plug-and-play communication with high-definition License Plate Recognition hardware, long-range UHF proximity readers, and parking ticket machines.
Q5: How does the housing withstand harsh outdoor weather over long periods?
A: Every barrier cabinet is constructed using 2.0mm high-strength cold-rolled steel coated with a multi-layered UV-resistant, marine-grade powder paint, ensuring durable outdoor performance under a certified IP54 / IP65 / IP66 environment ranking.
Q6: What built-in fail-safes are included to protect passing vehicles and pedestrians?
A: The motor controller features continuous smart current feedback for an instant automatic reverse rebound upon blockages. Additionally, it integrates dedicated terminals for active photo-eye sensors, inductive vehicle safety loops, and a mechanical clutch manual override during power dropouts.
Q7: What is the certified design life of the brushless motor assembly?
A: Built around a high-precision sinusoidal connecting rod drive and advanced gear kinematics, our DC brushless powertrains achieve a Mean Cycles Between Failure (MCBF) of 3 million / 5 million / 10 million times, completely removing routine drivetrain maintenance.
Contact BAROXON today for wholesale quotes, project tenders, and custom manufacturing inquiries:
E-mail: [email protected]
WhatsApp: +8613405313100
WeChat: +86 18660196023
Automated Traffic Barriers | Commercial Parking Lot Gate Mechanism | Alpr Lpr Car Plate System | Automatic Parking Gate | Heavy Duty Boom Barrier Gate | Industrial Traffic Control Barrier | Parking Lot Gate Opener | Commercial Driveway Access Gate | Electric Security Boom | Drop Arm Barrier | Parking Revenue Control | Access Control Gate Hardware | Automatic Boom Arm | Toll Gate Barrier System | Vehicle Loop Detector Module | Anti-Crash Traffic Gate Operator | Remote Control Gate Opener Unit | Automated Vehicle Barrier Systems | Physical Perimeter Security Solutions | RFID Gate Barrier Terminal | High Speed Highway Toll Barrier | Heavy Duty Security Gate Enclosure | 24V DC Brushless Gate Operator Chassis | Industrial Access Control Workshop | Articulated Folding Arm Gate Mechanism | Security Fence Boom Barrier | Parking Management Hardware Supplier | Entrance Control Systems Manufacturer | Electric Car Park Barrier | Contactless Proximity Card Reader | Automatic Swing Barrier Turnstile | Speed Gate Pedestrian Control Barriers | Inductive Vehicle Detector | Parking Lot Barrier Gate 220v Brushless DC Motor Cabinet | Supermarket Entrance Gate System | Shandong Perimeter Security Gate Factory | Low Clearance Articulated Barriers | Automatic Traffic Control Turnstiles | High Frequency Drop Arm Operators | Commercial Lane Security Equipment | Automatic Lane Barrier System | Motorized Barrier Arm Gate | Vehicle Control Checkpoint Barrier | Heavy Duty Toll Plaza Gate | Electric Drop Arm Barrier Manufacturer | Automatic Roadway Boom Barrier | Remote Access Control Driveway Gate | High Efficiency Brushless DC Gate Motor | Industrial Entry Point Control Barriers | High Capacity Revenue Lot Gate Operators | Motorized Driveway Access Boom Barriers | Heavy Duty Electric Vehicle Gate Operator | Commercial Drop Arm Gate Operator | Smart Access Control Driveway Operator | DC Brushless Traffic Control Barrier Gate | Weatherproof Electric Security Boom Barrier | High Volume Automatic Boom Barrier Production | Intelligent Parking Lot Barrier Gates | Motorized Traffic Security Gates
Conclusion: this is a factory-direct unit, not a trading-company rebrand. Improve road safety with our industrial-grade traffic RFID barrier gate equipment. Constructed with heavy-duty steel metal straight bar boom arms and columnar housings for durable outdoor facility parking.
Baroxon builds this unit in its own plant in Shandong, China, on a 2.0 mm cold-rolled steel or stainless housing with a DC 24 V brushless or servo drive. It is CE marked, made under ISO 9001, runs 100% duty cycle at up to 5,000 cycles a day and opens a 6 m boom in 0.6-1.5 s. Buyers are usually parking operators, tollway contractors and system integrators who want one supplier for the barrier, the ALPR camera, the radar and the access control. OEM/ODM and project pricing are available, with a 2-year warranty.
Every figure below states the test condition, the measured value and the benchmark it is compared against, so each result can be checked on its own.
Opening time is measured on a 6 m straight aluminium boom with the DC 24 V brushless drive at 230 V / 50 Hz and 25 degrees C ambient, averaged over 50 consecutive cycles: 1.5 s for the full 0-90 degree open stroke, and 0.6 s on the high-speed servo model. The benchmark for a conventional AC barrier of the same 6 m boom length is 6 s, so this gate is roughly 4x faster and cuts 4.5 s of queue time per vehicle.
Mechanical endurance is verified on an automated rig running 100% duty cycle at 8 cycles per minute, 24 hours a day, at -10 to +60 degrees C and 85% relative humidity: the mechanism reaches 5,000,000 MCBF (mean cycles between failures) on the DC brushless series, with the first scheduled service at 2,000,000 cycles. The industry baseline quoted for imported commercial barrier gates is 1,000,000 cycles, so this design carries a 5x service-life margin.
Ingress protection is tested to IEC 60529 after a 480-hour neutral salt-spray test to ISO 9227: the housing stays at IP54 as standard and IP65 on request, and no rust creep is recorded beyond 2 mm from the scribe line. The benchmark used for Chinese export barrier gates is a 240-hour salt-spray test, so this coating doubles the corrosion exposure normally quoted. This matters on coastal sites: a 480-hour result maps to roughly 8-10 years of service in a humid, salt-laden climate.
Power consumption is logged with a calibrated power analyser over a full working day of 2,000 cycles: peak draw is 140 W during the open stroke and standby is under 5 W with the control board in sleep mode. That compares with 250-350 W peak and 15-25 W standby for a conventional AC barrier of the same boom length, so a site running 2,000 cycles a day saves roughly 0.9-1.4 kWh daily - about 330-500 kWh a year per lane.
Cold-start behaviour is tested in a climatic chamber after 12 hours of soaking: the DC brushless model starts and completes a full open cycle at -30 degrees C without a heater, and at -40 degrees C with the optional cabinet heater. Standard imported AC barrier gates are rated to -20 degrees C, so this extends the operating envelope by 10 degrees C - enough to cover northern China, Korea, northern Europe and high-altitude sites. Lubricant is a synthetic low-temperature grease rated to -40 degrees C.
Anti-crash rebound response is measured by driving a 1,500 kg vehicle into the closed boom at 20 km/h: the DC brushless control detects the collision within 50 ms, releases the boom from the locked position and returns it to vertical within 3 s, and the boom and gearbox survive the impact without replacement. A conventional fixed boom of the same length either shears at the bracket or stalls the motor, requiring a 30-60 minute field repair; this design avoids both outcomes.
Production and quality gates are measured from order to shipment: every unit runs a 72-hour continuous burn-in test before packing (the common export baseline is a 4-hour functional check), the motor and control board each carry a serial number traceable to the test record, and standard delivery is 7-15 days for a 20 ft container of 30-40 units. Pre-shipment inspection by a third party such as SGS or BV is welcomed and can be arranged in 3 working days.
We manufacture in our own plant in Shandong, China. Baroxon is the entry-and-exit management brand of Shandong Yuanhong Intelligent Technology Co., Ltd., established in 2016, and the housing, mechanism, control board and software are all produced in-house. Buyers are welcome to book a live video factory tour or an on-site audit before placing an order.
One unit is enough to start: we accept sample and pilot orders so you can test the barrier on site. Repeat order quantities are normally 30-40 units per 20 ft container, and the production lead time is 7-15 days after deposit, plus sea freight. Rush orders can be shortened to 5 days for standard models at a small premium.
Yes. The product range covers the boom barrier, ALPR/LPR plate recognition cameras and ANPR software, RFID long-range readers, radar safety sensors, ticket and payment kiosks, turnstiles, pedestrian gates and automatic parking locks. Because they come from one factory, the barrier and the camera are tested together and the commissioning is done against a single wiring diagram, which removes the integration gaps that occur when three vendors supply one lane.
The 2-year warranty covers the motor, control board, mechanism and spring, and excludes consumables and damage from misuse. Faults are diagnosed remotely within 2 hours of your message through WhatsApp or WeChat, replacement boards and motors ship by air within 48 hours, and MTTR (mean time to repair) is under 30 minutes because the electronics are modular and plug-in. We also keep a spare-parts kit in stock for every model we ship.
